Cisco Updated 350-701 Exam Questions and Answers by jasmin

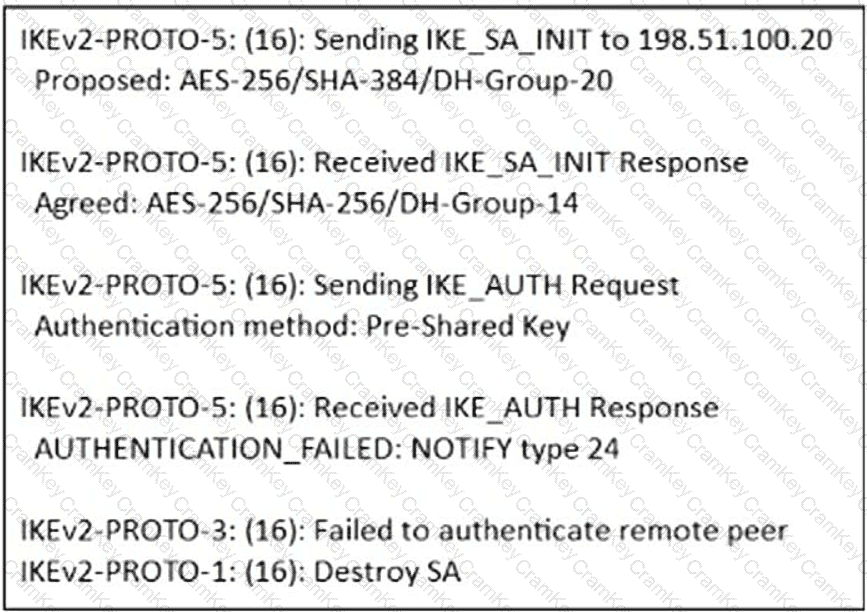

The debug shows that IKE_SA_INIT completed successfully and the peers agreed on AES-256, SHA-256, and DH Group 14. That proves a mutually acceptable Phase 1 proposal was selected, so changing the DH group or removing SHA-384 is unnecessary. The failure occurs later during IKE_AUTH, where the peer returns AUTHENTICATION_FAILED notification type 24. Because the displayed authentication method is a pre-shared key, the first corrective action is to verify that both peers use exactly the same key; capitalization, whitespace, or character differences change the calculated AUTH value. RFC 7296 defines the AUTH value as being derived from the shared secret and states that an AUTHENTICATION_FAILED notification prevents creation of the IKE SA. Replacing PSK authentication with certificates is not required to correct a PSK mismatch. IETF IKEv2 specification

The best way to prevent the session during the initial TCP communication is to configure policies to stop and reject communication from the known malicious domain. This will prevent the ESA from accepting any messages from that domain and send a negative SMTP response code back to the sender. This will also save the ESA’s resources and bandwidth, as it will not have to process or store the malicious emails. This can be done by creating a sender group in the Host Access Table (HAT) that matches the malicious domain and setting the mail flow policy to “Reject” or “Throttle”. Alternatively, a message filter can be created that checks the envelope sender against the malicious domain and applies the “stop_connection” or “reject_connection” action12.

The other options are not as effective as stopping and rejecting the communication at the TCP level. Configuring the Cisco ESA to drop the malicious emails (option A) will still allow the ESA to accept the messages and then silently discard them, which will consume the ESA’s resources and bandwidth, and also not notify the sender of the rejection. Configuring policies to quarantine malicious emails (option B) will also require the ESA to accept and store the messages, which will take up disk space and require manual or automated management of the quarantine. Configuring the Cisco ESA to reset the TCP connection (option D) will abruptly terminate the connection without sending a proper SMTP response code, which may cause the sender to retry the delivery and generate more traffic. Resetting the TCP connection is also considered a less polite and less compliant way of rejecting messages than sending a negative SMTP response code34. References: 1: How to Block a Sender Domain on the Email Security Appliance 2: Message Filters on the Cisco Email Security Appliance 3: How to Configure the Cisco Email Security Appliance to Reject or Drop Messages 4: Cisco Email Security Appliance User Guide - Configuring Mail Policies

GETVPN and IPsec are both VPN technologies that use ESP (Encapsulating Security Payload) to encrypt and authenticate data packets. However, they differ in the following aspects:

GETVPN uses a group IPSec security paradigm, which means that all group members share the same IPSec SA (Security Association) and can communicate with each other without having to establish point-to-point tunnels. IPsec, on the other hand, uses a pair-wise IPSec security paradigm, which requires each pair of devices to negotiate and maintain their own IPSec SAs and tunnels.

GETVPN uses GDOI (Group Domain of Interpretation) as a key management protocol, which allows a Key Server (KS) to distribute the encryption keys and policies to all group members. IPsec uses IKE (Internet Key Exchange) as a key management protocol, which involves two phases of negotiation between each pair of devices to establish the IPSec SAs.

GETVPN supports multicast traffic without the need for GRE (Generic Routing Encapsulation) tunneling, as it preserves the original IP header of the packet. IPsec does not support multicast traffic natively, and requires GRE tunneling to encapsulate the multicast packets with a new IP header.

GETVPN relies on the underlying WAN routing to deliver the encrypted packets to the destination, as it does not create any overlay routing. IPsec creates an overlay routing, which may introduce additional latency and complexity.

References :=

Some possible references are:

[Implementing and Operating Cisco Security Core Technologies (SCOR) v1.0], Module 6: Secure Connectivity, Lesson 6.2: Implementing Site-to-Site VPNs, Topic 6.2.2: Group Encrypted Transport VPN

Group Encrypted Transport VPN (GETVPN)

GETVPN - Cisco Community

Cisco Get VPN vs DMVPN: Difference and Comparison

What is a difference between GETVPN and IPsec?

Explanation

Diffie Hellman (DH) uses a private-public key pair to establish a shared secret, typically a symmetric key. DH is not a symmetric algorithm – it is an asymmetric algorithm used to establish a shared secret for a symmetric key algorithm.

Explanation

Cisco DNA Center has four general sections aligned to IT workflows:

Design: Design your network for consistent configurations by device and by site. Physical maps and logical topologies help provide quick visual reference. The direct import feature brings in existing maps, images, and topologies directly from Cisco Prime Infrastructure and the Cisco Application Policy Infrastructure Controller

Enterprise Module (APIC-EM), making upgrades easy and quick. Device configurations by site can be

consolidated in a “golden image” that can be used to automatically provision new network devices. These new devices can either be pre-staged by associating the device details and mapping to a site. Or they can be claimed upon connection and mapped to the site.

Policy: Translate business intent into network policies and apply those policies, such as access control, traffic routing, and quality of service, consistently over the entire wired and wireless infrastructure. Policy-based access control and network segmentation is a critical function of the Cisco Software-Defined Access (SDAccess) solution built from Cisco DNA Center and Cisco Identity Services Engine (ISE). Cisco AI Network Analytics and Cisco Group-Based Policy Analytics running in the Cisco DNA Center identify endpoints, group similar endpoints, and determine group communication behavior. Cisco DNA Center then facilitates creating policies that determine the form of communication allowed between and within members of each group. ISE then activates the underlying infrastructure and segments the network creating a virtual overlay to follow these

policies consistently. Such segmenting implements zero-trust security in the workplace, reduces risk, contains

threats, and helps verify regulatory compliance by giving endpoints just the right level of access they need.

Provision: Once you have created policies in Cisco DNA Center, provisioning is a simple drag-and-drop task.

The profiles (called scalable group tags or “SGTs”) in the Cisco DNA Center inventory list are assigned a policy, and this policy will always follow the identity. The process is completely automated and zero-touch. New devices added to the network are assigned to an SGT based on identity—greatly facilitating remote office setups.

Assurance: Cisco DNA Assurance, using AI/ML, enables every point on the network to become a sensor, sending continuous streaming telemetry on application performance and user connectivity in real time. The clean and simple dashboard shows detailed network health and flags issues. Then, guided remediation

automates resolution to keep your network performing at its optimal with less mundane troubleshooting work.

The outcome is a consistent experience and proactive optimization of your network, with less time spent on troubleshooting tasks.
