The correct answer is C. DHCP (Dynamic Host Configuration Protocol) .

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

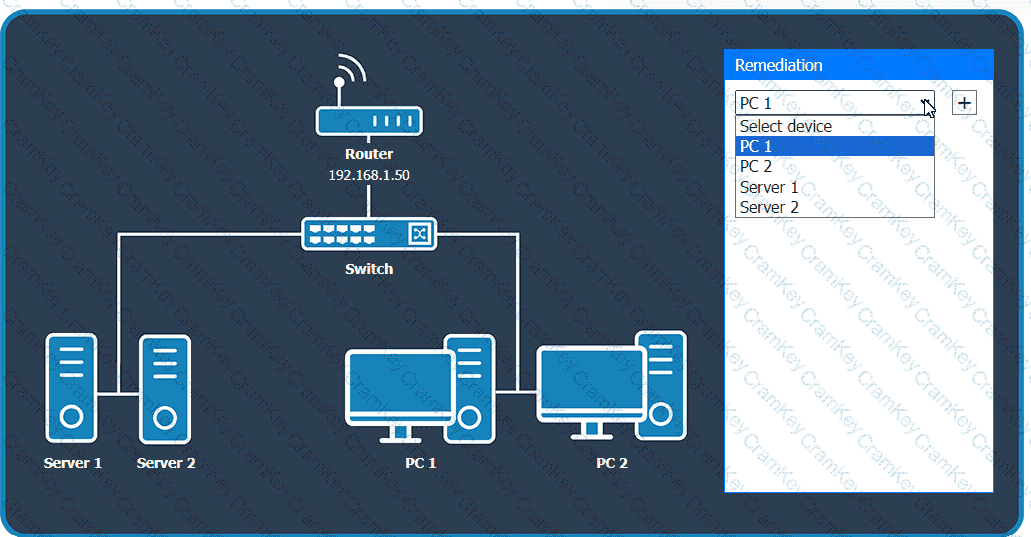

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

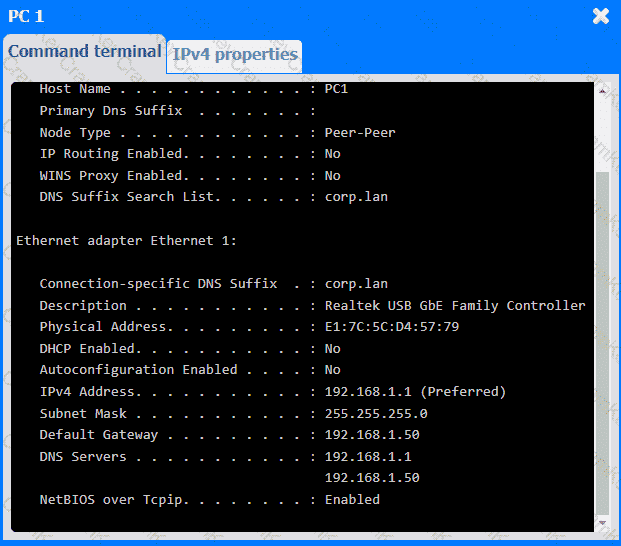

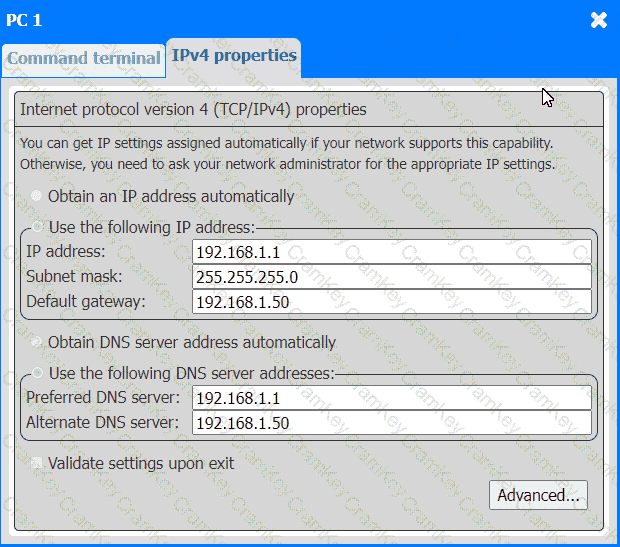

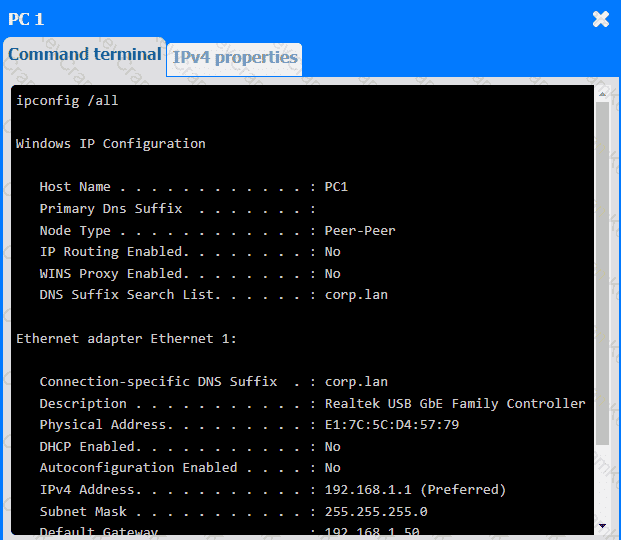

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

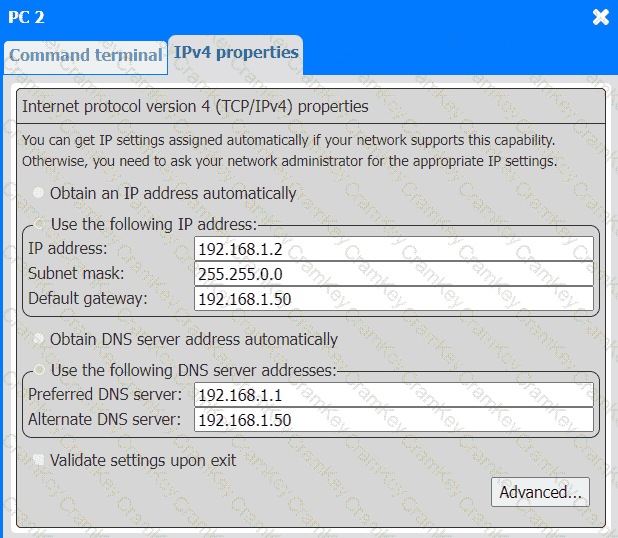

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

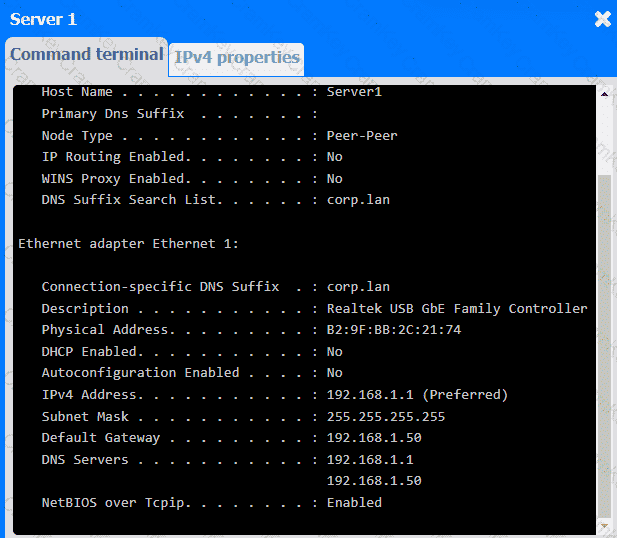

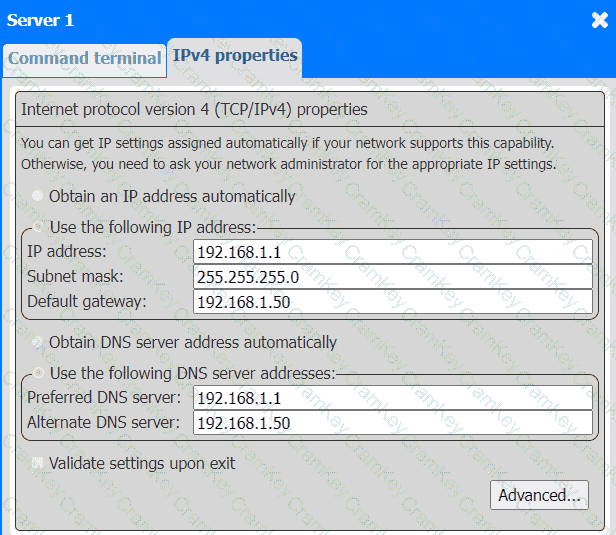

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

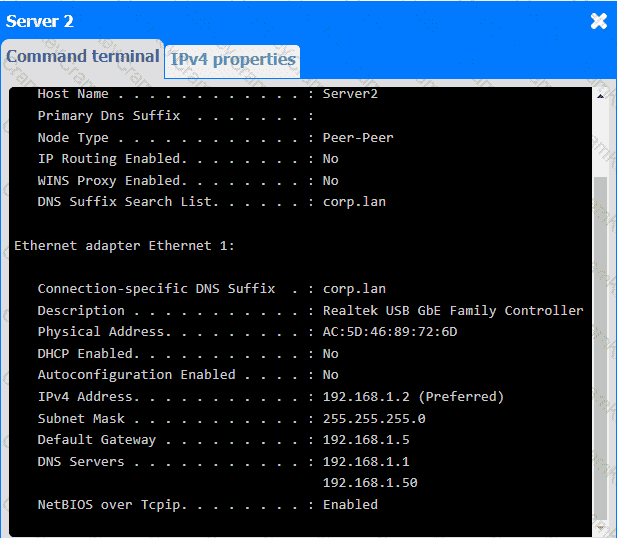

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

The correct answer is A. Virtual LAN (VLAN) .

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

The correct answer is B. Replacing the fans .

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Troubleshooting:

A computer that gradually slows down and then shuts down without warning is often experiencing overheating .

Overheating can occur when cooling fans fail or dust accumulates, preventing proper airflow. Replacing or cleaning fans restores cooling and prevents thermal shutdowns.

Why the other options are incorrect:

A. Upgrading the memory: Would improve system performance if there is insufficient RAM but does not prevent thermal shutdowns caused by overheating.

C. Adding drive space: Helps with storage capacity but does not affect CPU/GPU heat or thermal shutdown.

D. Swapping the power supply: Would address power delivery issues, but the scenario describes gradual slowdown before shutdown, which is characteristic of thermal issues rather than immediate power failure.
