CompTIA Updated 220-1201 Exam Questions and Answers by euan

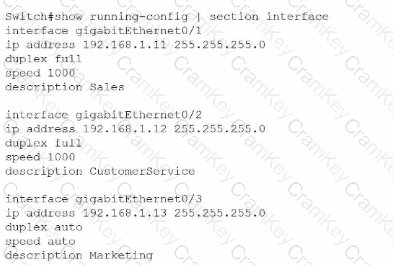

From the configuration, the Sales and Customer Service ports are hard-set to full duplex, 1000 Mbps, while the Marketing interface (GigabitEthernet0/3) is set to duplex auto and speed auto. CompTIA A+ explains that mismatched or lower-negotiated speeds and duplex settings can cause noticeable network slowdowns, collisions, and retransmissions—especially at busy times of the day when utilization is high.

Because all cabling is Cat 5e, it fully supports Gigabit Ethernet, so the cabling is not the limiting factor. The IP addresses are all in the same subnet (192.168.1.0/24) and formatted correctly, so there is no subnet or addressing problem. That rules out options A and C.

With speed auto, the Marketing port may be negotiating only 10/100 Mbps, or even a duplex mismatch (e.g., half duplex vs full). This would severely limit throughput compared to the gigabit links used by the other departments. In peak periods, that slower link would become congested first, which matches the users’ reports of performance degradation only in Marketing.

Therefore, the most likely cause is that the Marketing interface is operating at 10/100 instead of 1000 Mbps, making option D correct.

The default gateway is the network device responsible for routing traffic from a local computer to destinations outside its subnet. When a new firewall is deployed and intended to manage outbound traffic, client devices must be configured to send packets to this firewall. CompTIA A+ identifies the gateway setting as the key parameter that determines where a workstation sends its external-bound traffic.

By updating the gateway address to point to the new firewall’s internal interface, all internet-bound and off-subnet traffic will now pass through the firewall for filtering, inspection, and routing. This ensures correct traffic flow and enforces security policies.

Changing the VPN settings (A) does not affect local traffic routing unless a VPN tunnel is active. Subnet mask adjustments (C) determine the network size but do not control routing. VLAN settings (D) require switch configuration, not workstation changes, and do not dictate default routing behavior.

Thus, modifying the gateway is the correct and necessary step to route all traffic through the newly implemented firewall.

Comprehensive and Detailed Step-by-Step Explanation:

When delivering 10Gbps speeds over long distances, fiber optic cables are the best choice. Here’s the breakdown:

A. Multimode Fiber (Correct Answer):

Multimode fiber is designed for relatively short to medium distances (up to 1,312 feet or 400 meters) while supporting high-speed data transfer (10Gbps and above).

It uses LED light sources and is cost-effective for environments like data centers or within buildings.

For the specified distance of over 328ft but under 1,312ft, multimode fiber is the most suitable option.

Incorrect Options:

B. Single-mode Fiber: While single-mode fiber supports much greater distances (up to several miles or kilometers) and higher speeds, it is more expensive and unnecessary for the specified range. Single-mode fiber is generally used for long-haul networking or telecommunications.

C. Cat 6a: Cat 6a is capable of 10Gbps speeds but only up to 328ft (100 meters). It cannot reliably handle the specified distance of over 328ft.

D. Cat 6: Cat 6 is also limited to 10Gbps speeds at distances up to 328ft (100 meters). Beyond this range, it is unsuitable.

Key Takeaway:

For delivering 10Gbps speeds over distances longer than 328ft (100m) but under 1,312ft (400m), Multimode Fiber is the best choice due to its ability to support high-speed data over medium distances at a reasonable cost.

The error message “HDMI2 no signal found” indicates that the projector is set to an input source that is not currently receiving a video signal. According to CompTIA Core 1 (220-1201) display and troubleshooting objectives, input source selection is one of the first items to verify when an external display shows a black screen but powers on correctly.

Many projectors have multiple HDMI ports (HDMI1, HDMI2, etc.). If the PC is connected to a different HDMI port than the one currently selected, the projector will display a “no signal” message even though the cable and device are functioning properly. Changing the input source to match the connected HDMI port resolves the issue quickly.

Replacing the bulb would not fix a “no signal” message, as the projector is clearly powered on and displaying text. Swapping the video cable is a valid troubleshooting step, but the explicit HDMI2 message points to an incorrect input selection. Updating video drivers is unnecessary when the device worked previously and the issue is isolated to input detection.

CompTIA emphasizes verifying correct input selection as a primary step when troubleshooting external display issues.
