Step 1: Understand Requirements & Security Principles

Requirements:

Customer-facing payment application (PCI DSS compliance applies)

Hosted on third-party cloud (e.g., AWS)

Must segment public-facing and internal resources

Needs to be scalable and resilient

Must have strong security controls

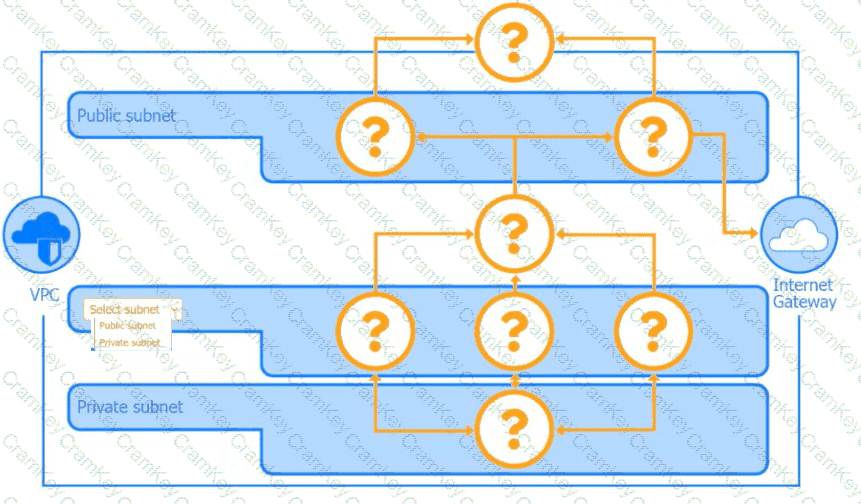

Step 2: Design the High-Level Network Layout

Core Components:

VPC (Virtual Private Cloud): Isolates your environment from other tenants in the cloud.

Subnets:

Public subnet: For resources that must communicate with the internet.

Private subnet: For internal resources, NOT directly exposed to the internet.

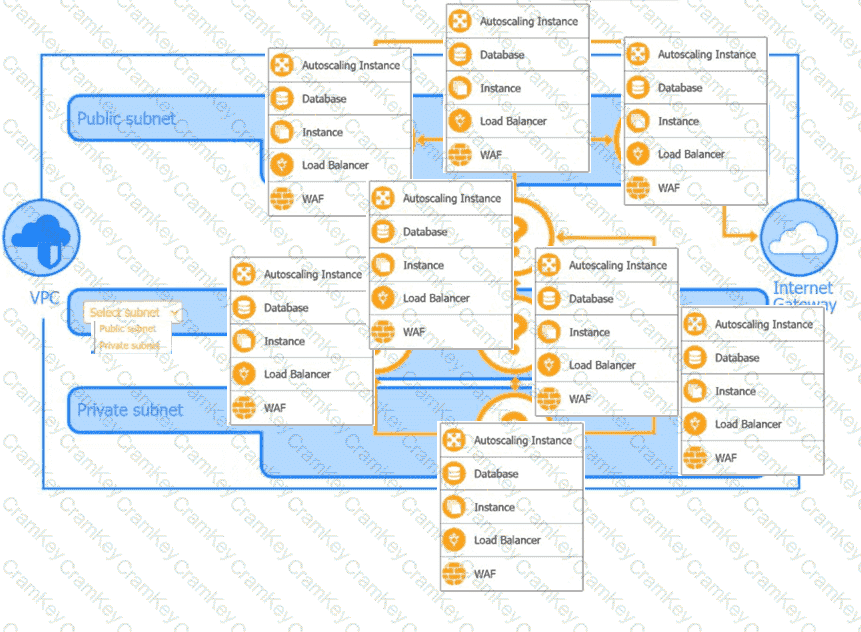

Step 3: Place Resources in Appropriate Subnets

Public Subnet:

Internet-facing Load Balancer (LB): Distributes traffic to application servers.

Web Application Firewall (WAF): Protects against web exploits.

Autoscaling Instances: EC2 (or VM) servers running your web front-end, automatically scaling as traffic grows.

Private Subnet:

Application servers: Back-end logic, not exposed to internet directly.

Database: Sensitive data storage, only accessible by application servers.

Internal Load Balancer: Manages traffic among app servers.

WAF: Can be used internally as well for defense-in-depth.

Step 4: Add Connectivity and Security Controls

Internet Gateway: Allows resources in public subnet to communicate with the internet.

NAT Gateway: Allows outbound internet traffic from private subnet without exposing private IPs.

Security Groups: Firewalls at the instance level; allow only necessary traffic (e.g., LB to web server, web server to DB).

Network ACLs: Subnet-level firewalls for additional control.

Step 5: Network Diagram Explanation (Based on Your Images)

Public Subnet (Top Layer)

Load Balancer

Accepts HTTPS traffic from customers.

Sends only necessary HTTP/HTTPS to web servers in public subnet.

WAF (Web Application Firewall)

Sits in front of Load Balancer.

Filters malicious requests (SQLi, XSS, etc.).

Autoscaling Group

Multiple web servers for redundancy and scalability.

Placed in public subnet to respond to traffic spikes.

Private Subnet (Bottom Layer)

Application Servers

Receive requests from public subnet’s load balancer.

Not directly exposed to the internet.

Database

Only accessible from application servers, never public.

Security groups restrict all inbound traffic except from app servers.

Internal Load Balancer

Balances requests to application servers.

Step 6: Flow of Data (Step-by-Step)

Client - > Internet Gateway - > WAF - > Load Balancer (Public Subnet):Customers initiate connections to your app over the internet.

Load Balancer - > Autoscaling Web Servers (Public Subnet):Load balancer routes requests to available web servers.

Web Servers - > Application Logic (Private Subnet):Web servers pass necessary requests to the internal application servers.

App Servers - > Database (Private Subnet):Application servers query/update customer payment data in the database.

Outbound (NAT Gateway):App servers may need to access updates or external APIs—use NAT Gateway for secure outbound connections.

Step 7: Security Best Practices

Security Groups: Only allow necessary ports (e.g., 443 for HTTPS to LB, 3306 for MySQL between app server and DB).

Network ACLs: Add another layer of subnet-level restrictions.

Encryption: Use HTTPS for all external connections, encrypt data at rest and in transit (TLS, disk encryption).

IAM Roles/Policies: Principle of least privilege for accessing resources.

Monitoring/Logging: Enable VPC flow logs, cloud service logs, and application logging.

Patch Management: Automate patching for OS and applications.

Backups: Regular, secure backups of critical data.

Step 8: Compliance Considerations

For payment applications (PCI DSS):

Isolate cardholder data environment (CDE).

Strong access controls (multi-factor authentication, role separation).

Regular vulnerability assessments and penetration testing.

Retain logs for auditing.

Step 9: Draw the Architecture (Summary)

Internet Gateway: Allows inbound/outbound internet access.

Public Subnet: WAF, Load Balancer, Autoscaling group.

Private Subnet: App servers, DB, internal LB.

NAT Gateway: Outbound access for private resources.

Security Groups/ACLs: Control all traffic flows.

Monitoring/Logging: Enabled at all levels.

Bonus: Sample Security Group Rules

Web Server (Public Subnet):

Inbound: 443 (HTTPS) from Internet

Outbound: 80/443 to App Servers

App Server (Private Subnet):

Inbound: 80/443 from Web Servers

Outbound: 3306 (MySQL) to Database

Database (Private Subnet):

Inbound: 3306 from App Servers

Outbound: None (unless replication required)

References to Security+ Domains

1.0 General Security Concepts: Principle of least privilege, defense in depth.

2.0 Threats, Vulnerabilities, Mitigations: WAF, segmentation, patching.

3.0 Security Architecture: Network segmentation, secure design.

4.0 Security Operations: Monitoring, logging, response.

5.0 Security Program Management: Compliance, policy.

Jailbreaking is a primary security concern for a company setting up a BYOD (Bring Your Own Device) program. Jailbreaking is the process of removing the manufacturer’s or the carrier’s restrictions on a device, such as a smartphone or a tablet, to gain root access and install unauthorized or custom software. Jailbreaking can compromise the security of the device and the data stored on it, as well as expose it to malware, viruses, or hacking. Jailbreaking can also violate the warranty and the terms of service of the device, and make it incompatible with the company’s security policies and standards. Therefore, a company setting up a BYOD program should prohibit jailbreaking and enforce device compliance and encryption. References = CompTIA Security+ Study Guide with over 500 Practice Test Questions: Exam SY0-701, 9th Edition, Chapter 2, page 76. CompTIA Security+ SY0-701 Exam Objectives, Domain 2.4, page 11.

Input validationensures that only properly formatted and expected input is accepted by an application,preventing injection attacks such as SQL injection and command injection. Properly validating and sanitizing user inputs can mitigate these types of attacks.

Authentication (A)helps verify user identity but does not prevent injection attacks.

Secure cookies (B)protect session data but do not stop injection-based exploits.

Static code analysis (C)can help identify vulnerabilities but does not activelypreventinjection attacks in real-time.

Implementingstrong input validationcanprevent malicious code from being executed, reducing the risk of injection attacks.

Because the organization performs the risk assessment each year, it is being done on a regular, scheduled interval. In Security+ terminology, that makes it a recurring risk assessment, not ad hoc, one-time, or continuous. The Study Guide differentiates these modes and states: “Recurring risk assessments are performed at regular intervals, such as annually or quarterly.” This matches the scenario exactly (annually = each year).

To avoid confusion with the other options: a one-time assessment is described as a “point-in-time view” performed when the organization wants a snapshot (often tied to a specific need), while ad hoc assessments are triggered by a specific event or situation (like a new project or significant change). In contrast, the key distinguishing factor of recurring is the planned cadence used to “track the evolution of risks over time” and ensure risk management adapts. The guide also notes continuous risk assessment involves ongoing monitoring and analysis, often supported by automated scanning and frequent updates, which is different from a once-per-year schedule. Therefore, the annual assessment described is best classified as recurring.
