Cisco Updated 300-430 Exam Questions and Answers by ibraheem

The OfficeExtend Access Point (OEAP) split tunnel feature allows the separation of corporate and local traffic. By implementing a split tunnel, remote workers can maintain wireless connectivity to the corporate network while simultaneously accessing local network resources such as printers. This solution ensures that local traffic does not have to traverse the corporate network, which can cause connectivity issues like the ones reported by the users. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

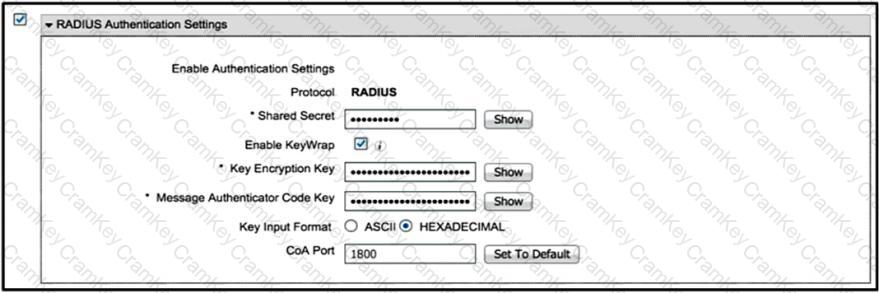

The configuration that must be applied in the RADIUS Authentication Settings section from the ISE Network Device page when clients are able to authenticate successfully but the ISE policies designed to place them on different interfaces are not working is to change the CoA Port. The CoA (Change of Authorization) port is used by ISE to send messages to the network device to apply different policies post-authentication. If the CoA port is not correctly configured, the network device will not receive or act upon these messages, resulting in clients not being placed on the correct interfaces as per ISE policies. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

Disabling DHCP proxy on the Cisco WLC and running the ip helper-address command under the VLAN interface to point to DHCP and the two ISE servers is the recommended action. This allows direct communication between clients and DHCP/ISE servers, which is necessary for accurate device profiling.

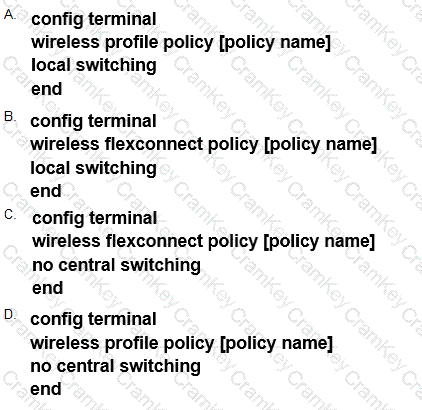

The correct command set for configuring a Cisco Catalyst 9800 Series Wireless Controller so that the client traffic enters the network at the AP switch port is Option C:

config terminal

wireless profile policy [policy name]

no central switching

end

This configuration disables central switching, which means that client traffic will be locally switched at the access point level rather than being sent through the controller. This is useful in scenarios where local switching is preferred due to reasons such as reducing latency or conserving bandwidth on WAN links. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )
