(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

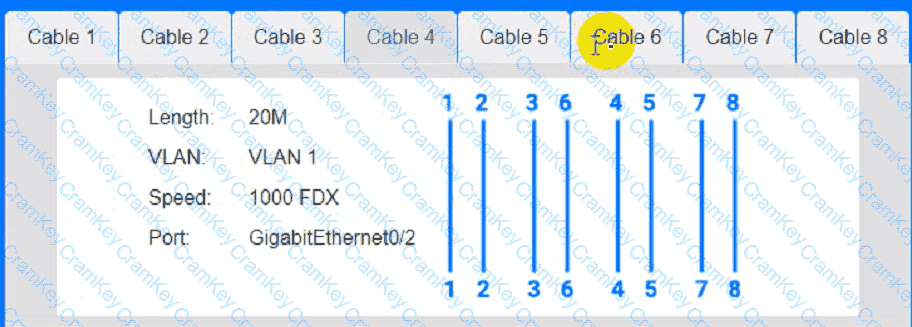

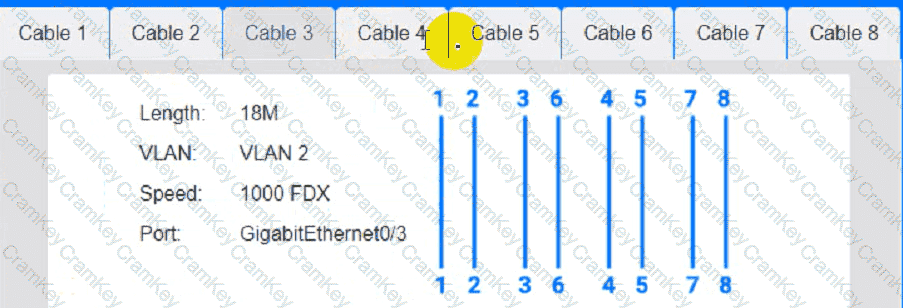

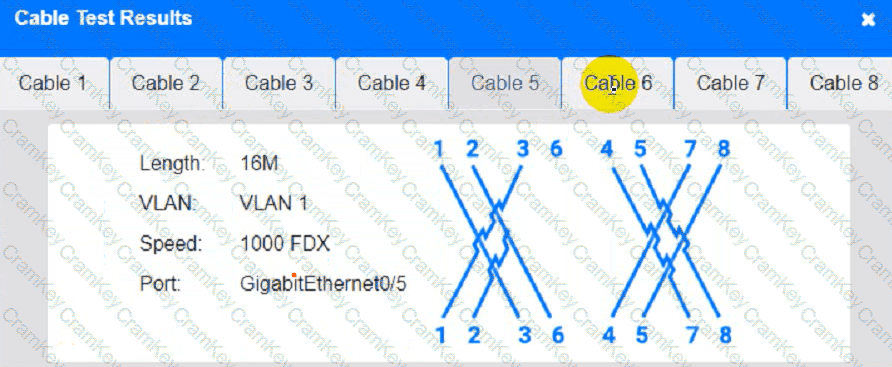

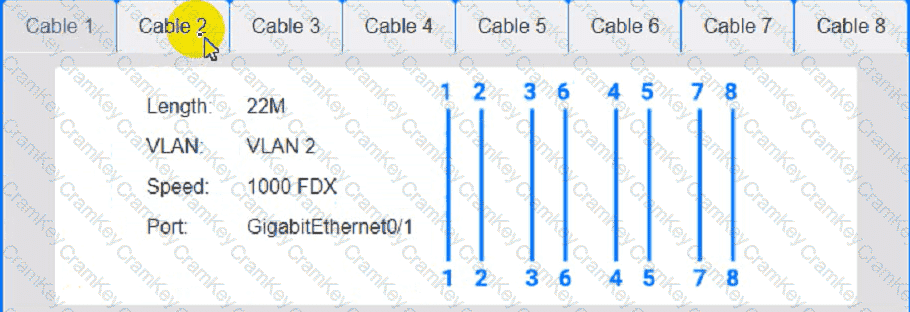

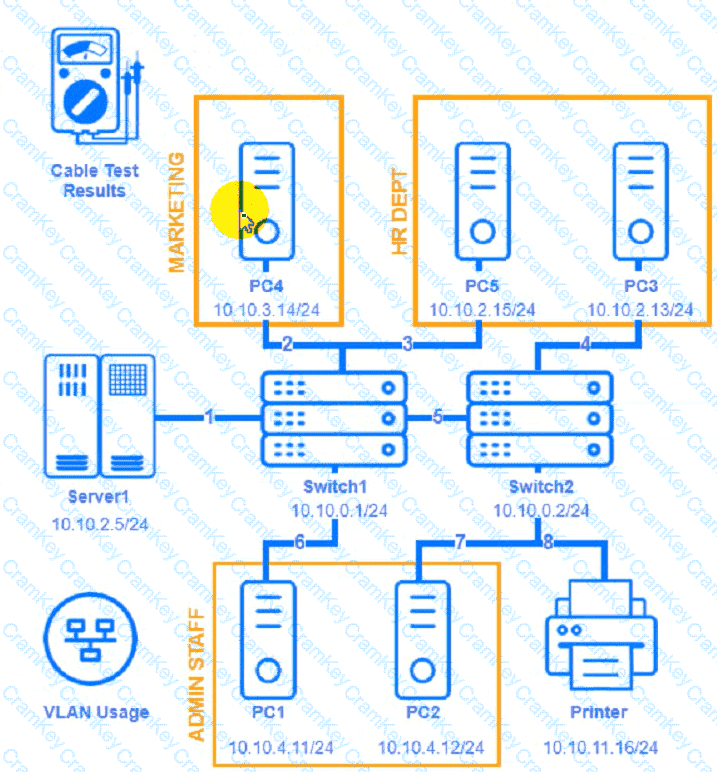

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

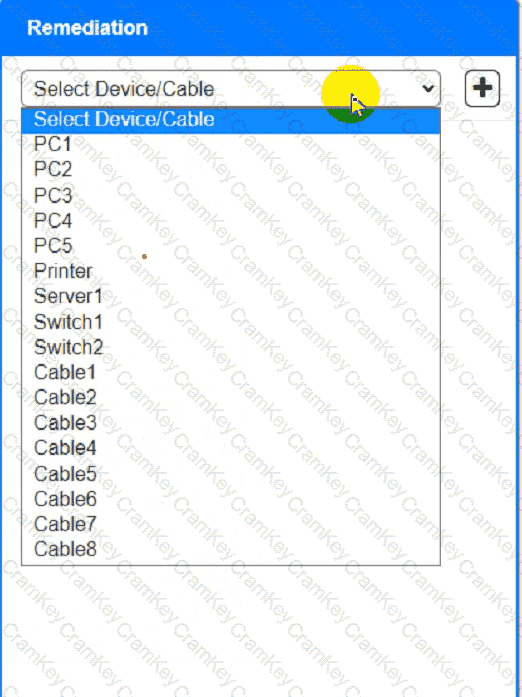

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

To enter commands in each device, you can use the following steps:

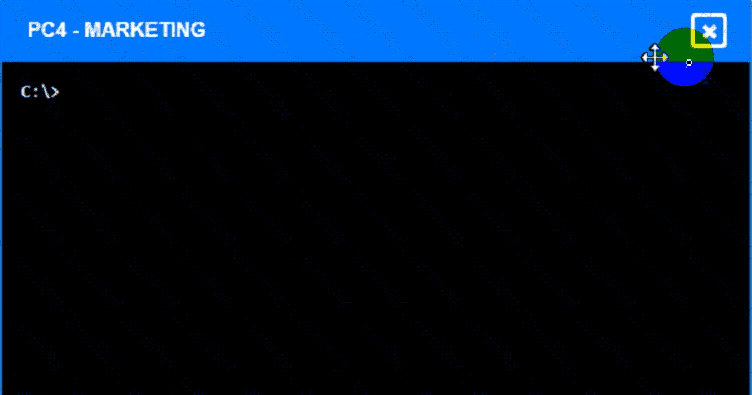

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping < IP address >  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert < IP address >  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

The correct answer is IP address blocks because geofencing policies typically rely on public IP address ranges associated with specific geographic regions or countries. According to CompTIA Network+ (N10-009) security objectives, geofencing is a security control used to restrict or allow traffic based on geographic location. This is commonly implemented on firewalls, VPN concentrators, or security gateways by referencing databases that map IP address blocks to countries or regions.

When configuring geofencing, administrators create access control rules that permit or deny traffic from specific country-based IP ranges. This method is effective for limiting remote access to approved geographic locations and reducing exposure to international threat sources.

MAC filtering (Option A) is used within local networks and does not function over the internet for geographic control. Administrative distance (Option B) is a routing concept that determines route preference and has no relation to access control policies. Bluetooth beacon signals (Option C) are used for proximity-based services and indoor positioning, not for country-level remote access restrictions.

Therefore, leveraging IP address blocks is the correct approach for implementing geofencing controls.

MIBs (Management Information Bases) define the variables and objects that SNMP can query on a device. If the monitoring server authenticates but cannot interpret the data, it likely lacks the correct MIB for that vendor or model. Importing the proper MIB allows the monitoring server to correctly display device status and metrics.

A. Using a public community string is insecure and not related to missing MIBs.

C. Switchport analyzer (SPAN) captures traffic for packet analysis, not SNMP monitoring.

D. SNMPv3 privacy adds encryption but doesn’t fix missing MIB interpretation.

References (CompTIA Network+ N10-009):

Domain: Network Operations — SNMP, MIBs, network monitoring systems.

Understanding the Vulnerability:

Vulnerabilities in the router CPU can be exploited to cause performance degradation, unauthorized access, or other security issues.

Firmware Update:

Firmware Role: The firmware is low-level software that controls the hardware of a device. Updating the firmware can address vulnerabilities by providing patches and enhancements from the manufacturer.

Procedure: Download the latest firmware from the vendor’s website, follow the manufacturer ' s instructions to apply the update, and verify that the update resolves the vulnerability.

Comparison with Other Options:

Replace the System Board: This is a costly and often unnecessary step if the issue can be resolved with a firmware update.

Patch the OS: Patching the OS is relevant for devices with a full operating system but not directly applicable to addressing a CPU vulnerability on a router.

Isolate the System: Temporarily isolating the system can mitigate immediate risk but does not resolve the underlying vulnerability.

Best Practice:

Regularly check for and apply firmware updates to ensure that network devices are protected against known vulnerabilities.
