Ascreened subnet, also known as aDMZ (Demilitarized Zone), is aboundary networkthat separates an organization ' s internal network from external-facing systems. It is used to host public services like web or email servers while protecting internal systems from exposure.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

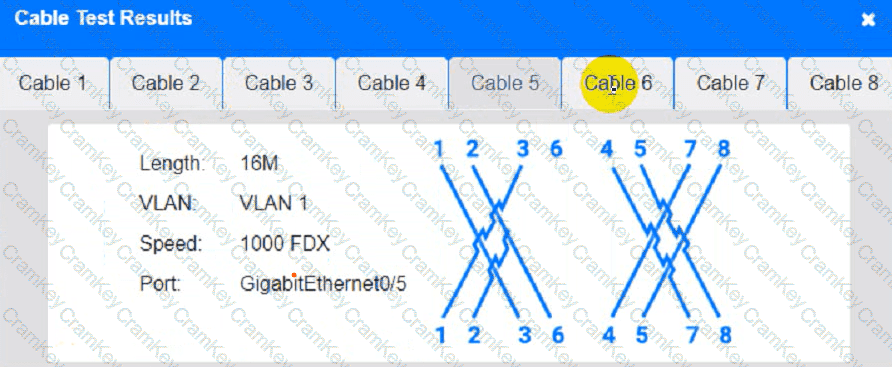

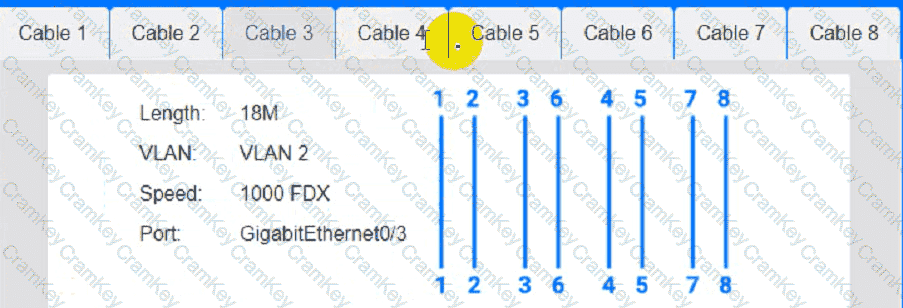

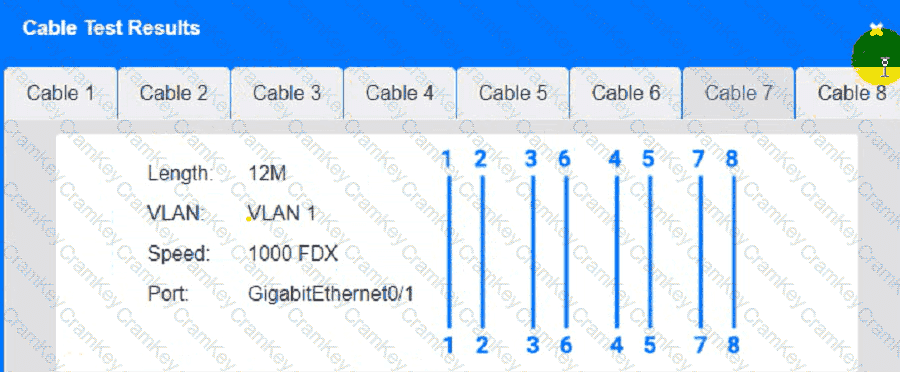

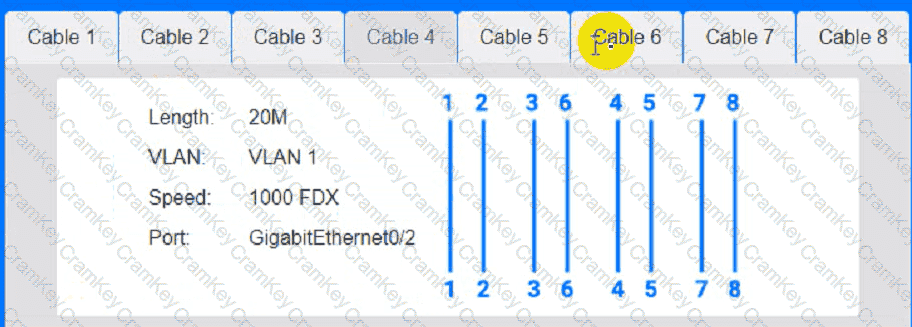

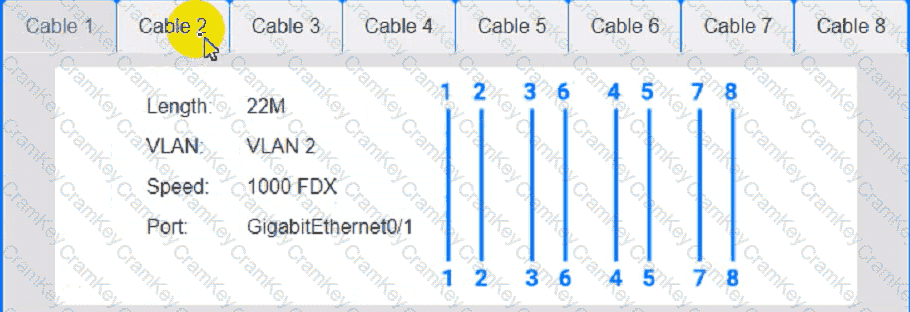

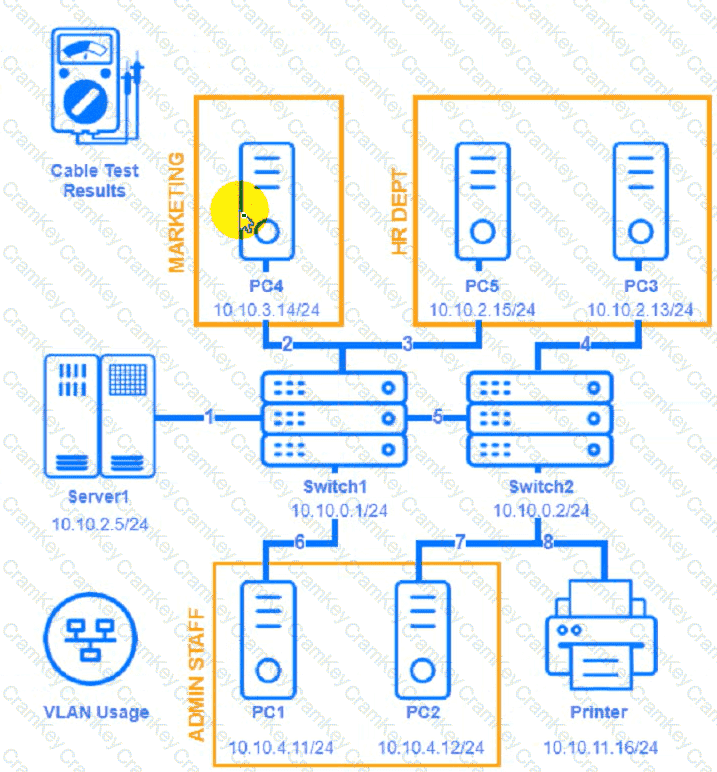

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

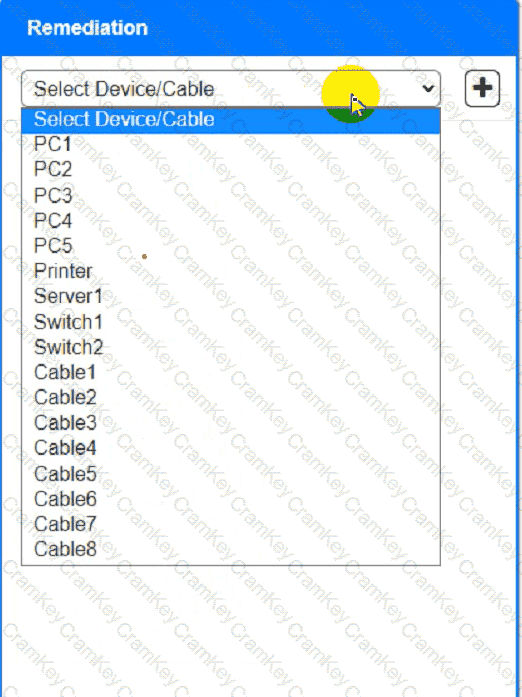

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

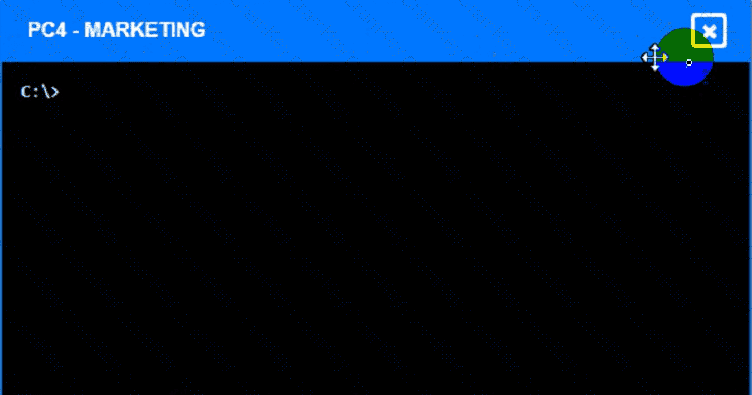

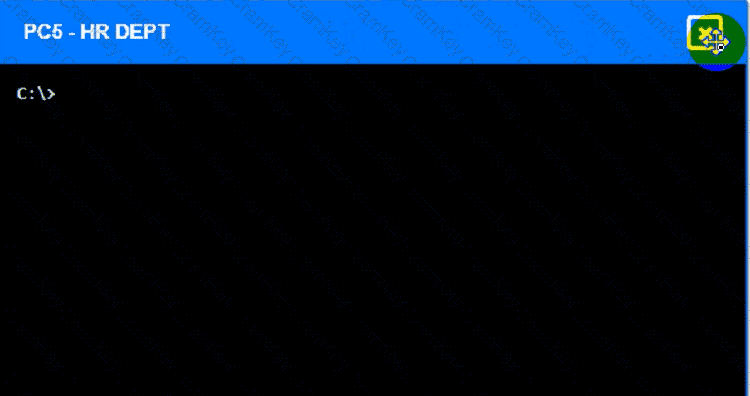

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping < IP address >  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert < IP address >  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

Adding more access points can improve coverage, but it also increases the risk of co-channel interference if APs are configured on the same or overlapping channels. Channel overlap causes contention and interference, leading to retries, unstable performance, and symptoms that feel like frequent disconnect/reconnect events—especially in dense deployments. Network+ (N10-009) wireless troubleshooting objectives highlight proper channel planning (non-overlapping channels, appropriate channel width) as critical when increasing AP density. If adjacent APs are competing on the same channel (or overlapping channels in 2.4 GHz), clients may experience poor signal-to-noise ratios and repeated reassociations as they struggle to maintain a stable link.

Roaming misconfiguration can cause sticky clients or poor handoffs, but the classic problem introduced immediately after “adding more APs” is interference from bad channel design. Throughput capacity is about available bandwidth and airtime efficiency; it can make things slow, but it doesn’t inherently cause repeated disconnect/reconnect loops like interference does. Packet loss is a symptom that may occur due to interference, but the root cause in the options that best fits the scenario is channel overlap.

The most likely cause of buffering issues when moving outdoors is signal degradation. Wireless signals weaken as they travel through obstacles such as walls, glass, and air, leading to weaker connections and reduced data rates.

Breakdown of Options:

A. Network congestion – While congestion can slow down network speeds, it affects all users, not just those moving outdoors.

B. Wireless interference – Interference is possible but is more likely caused by other wireless signals rather than outdoor movement.

C. Signal degradation – Correct answer. Wireless signals weaken with distance and obstacles such as walls, reducing performance.

D. Client disassociation – Disassociation occurs when clients lose connection to the AP, but the question states that users experience buffering, indicating they are still connected but with a weak signal.
