CompTIA Updated N10-009 Exam Questions and Answers by destiny

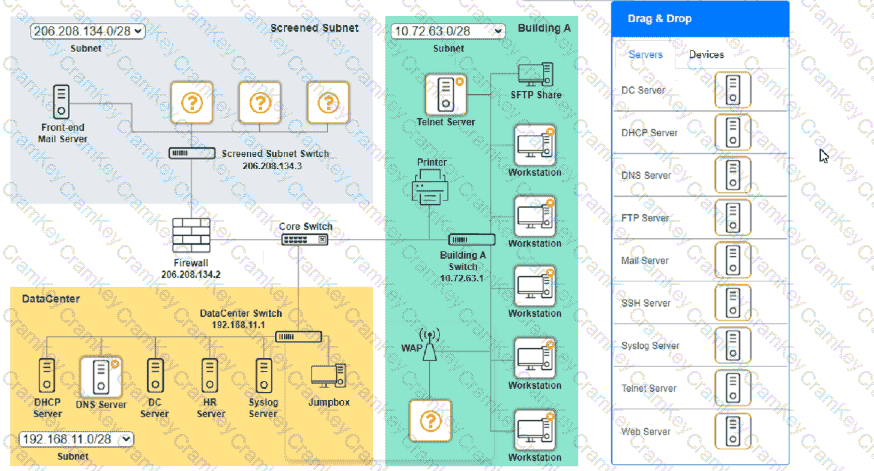

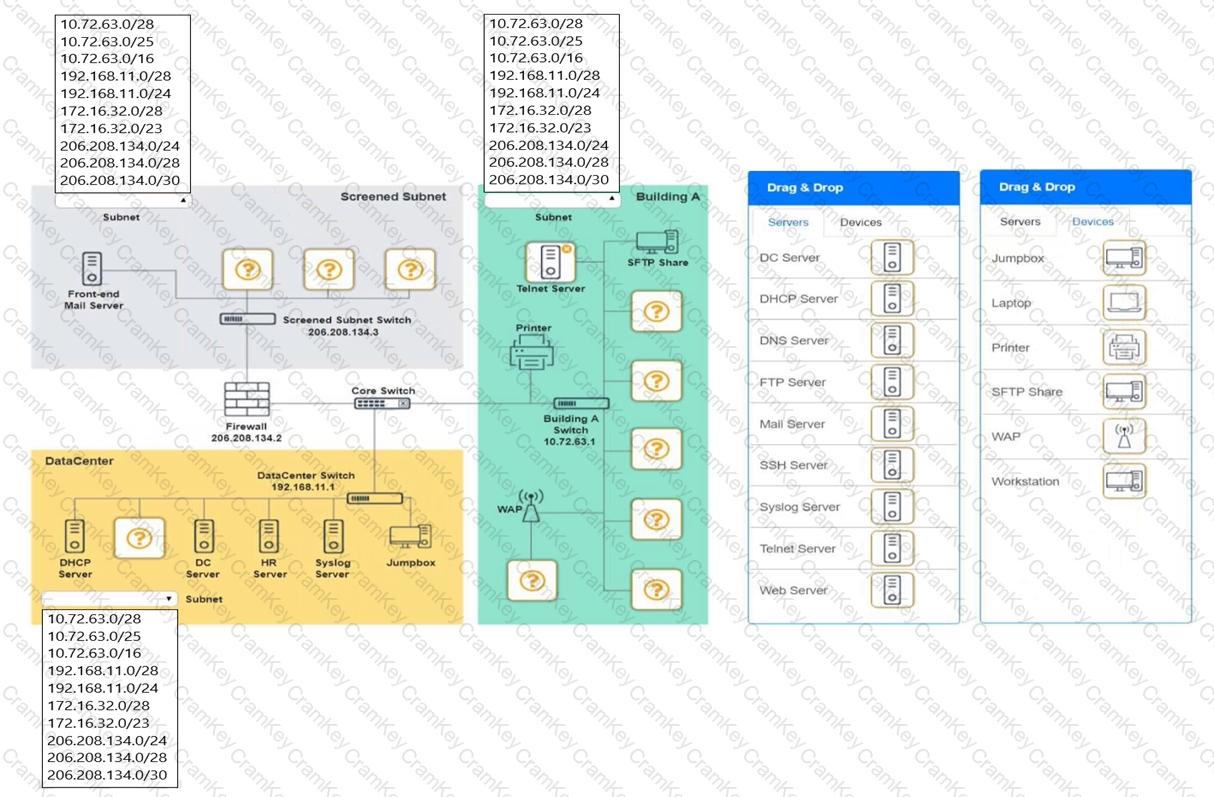

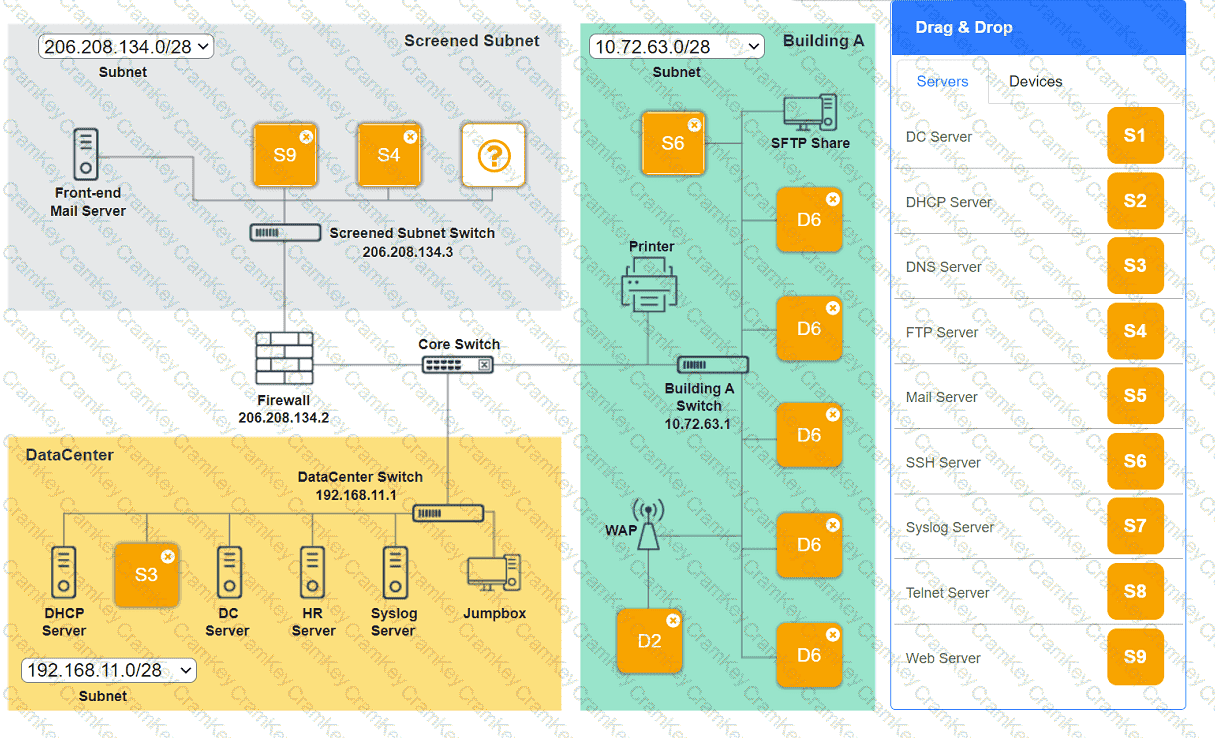

Screened Subnet devices – Web server, FTP server

Building A devices – SSH server top left, workstations on all 5 on the right, laptop on bottom left

DataCenter devices – DNS server.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is B. PAT. Port Address Translation allows many internal devices that use private IP addresses to share a small number of public IP addresses when accessing the internet. In this case, the question says all users can access the internet using only two public IPs, which is exactly the kind of situation PAT is designed for. The device performing PAT keeps track of each connection by using source port numbers, so multiple internal sessions can be translated and maintained at the same time without requiring a unique public IP for every user.

The other options do not match this function. EIGRP and BGP are routing protocols used to exchange routing information, not to translate addresses for outbound internet traffic. VIP refers to a virtual IP address, commonly used in high availability or load-balancing scenarios, but it does not provide the many-to-one address translation behavior described in the question.

For Network+ exam purposes, when the scenario talks about conserving public IPv4 addresses and allowing many users to reach external networks through a very small number of public IPs, the expected answer is PAT. This is one of the most common real-world uses of NAT technology at the network edge.

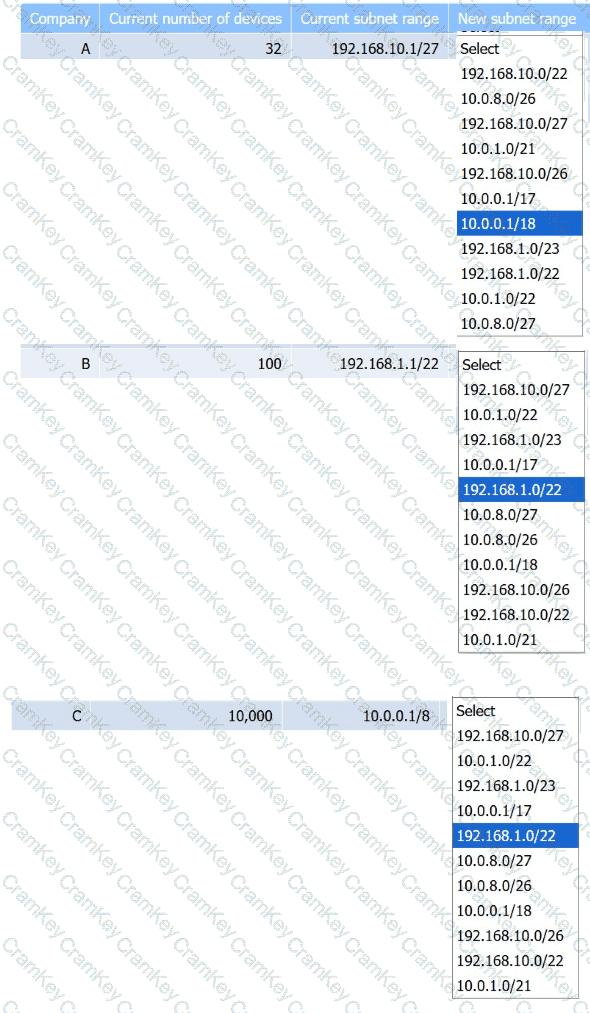

A = 192.168.10.0/26

B = 192.168.1.0/23

C = 10.0.0.1/18

Using the choices shown in the screenshot, the best-fit subnet selections are based on host growth requirements first, then segmentation.

For Company A, the current device count is 32. With 20% growth, that becomes about 39 devices. A /27 only supports 30 usable hosts, so it is too small. A /26 supports 62 usable hosts, so 192.168.10.0/26 is the correct choice.

For Company B, the current device count is 100. With 20% growth, that becomes 120 devices. The smallest correct subnet would normally be a /25 with 126 usable hosts, but that option is not shown. From the available choices, 192.168.1.0/23 is the smallest subnet that still supports more than 120 hosts, so that is the best answer.

For Company C, the current device count is 10,000. With 20% growth, it needs space for 12,000 hosts. A /18 provides 16,382 usable hosts, while a /19 is not available and a /21 or /22 would be far too small. Therefore, 10.0.0.1/18 is the correct selection.

One important note: the dropdown choices shown do not actually let all three companies be placed into a single true Class B network block. So these answers are the best valid selections from the provided options.

To support 75 hosts per subnet, you must choose a subnet size that provides at least 75 usable IP addresses. In IPv4, usable hosts per subnet equals 2^(host bits) − 2 (subtracting network and broadcast). A /25 leaves 7 host bits (32–25 = 7), giving 2^7 − 2 = 128 − 2 = 126 usable hosts, which meets the requirement and is the smallest (most efficient) option listed that does so. A /26 leaves 6 host bits, giving 62 usable hosts, which is insufficient. A /27 gives 30 usable, and a /28 gives 14 usable, both far below 75. Network+ subnetting objectives emphasize selecting the smallest subnet that satisfies the host requirement to conserve address space while meeting growth and design constraints. Therefore, 192.168.13.0/25 is the most efficient option that accommodates at least 75 hosts per subnet.
