CompTIA Updated N10-009 Exam Questions and Answers by aras

The key difference is that an Intrusion Prevention System (IPS) is installed in line with network traffic, allowing it to actively block threats. In contrast, an Intrusion Detection System (IDS) only monitors and alerts without actively blocking traffic.

Breakdown of Options:

A. An IPS needs to be installed in line with traffic and an IDS does not. ✅ Correct answer. IPS actively prevents threats, while IDS only detects them.

B. An IPS is signature-based and an IDS is not. – False, both can use signature-based detection.

C. An IPS is less susceptible to false positives than an IDS. – False, both can produce false positives, depending on configurations.

D. An IPS requires less administrative overhead than an IDS. – False, IPS requires more administrative effort due to real-time blocking decisions.

If a workstation can access the internet and printers (likely in another VLAN) but not internal servers, the port was likely placed into the wrong VLAN after the move. VLAN assignment controls Layer 2 segmentation, restricting access to resources on different VLANs.

A. A wrong default gateway would prevent internet access.

C. An error-disabled port would block all connectivity.

D. A duplicate IP would cause general network issues, not just missing server access.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — VLAN misconfiguration, connectivity issues.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

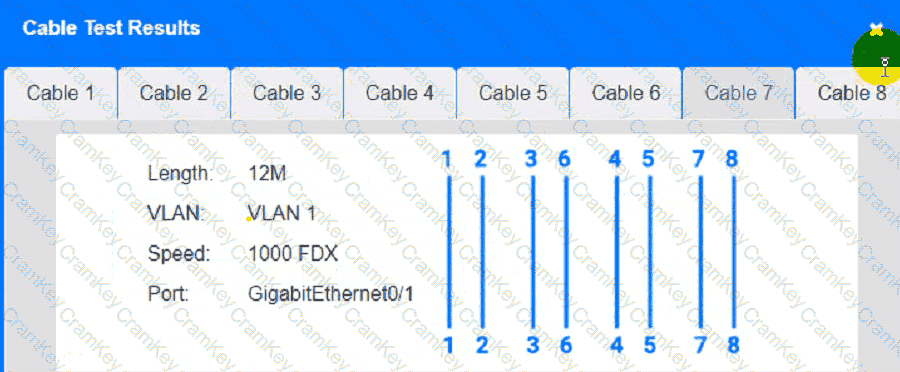

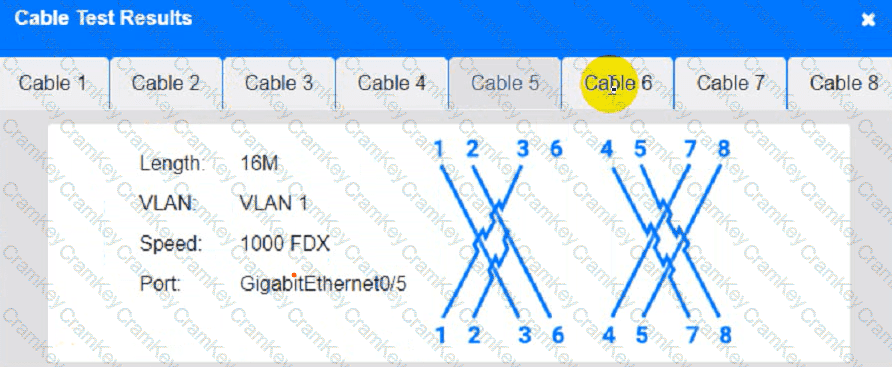

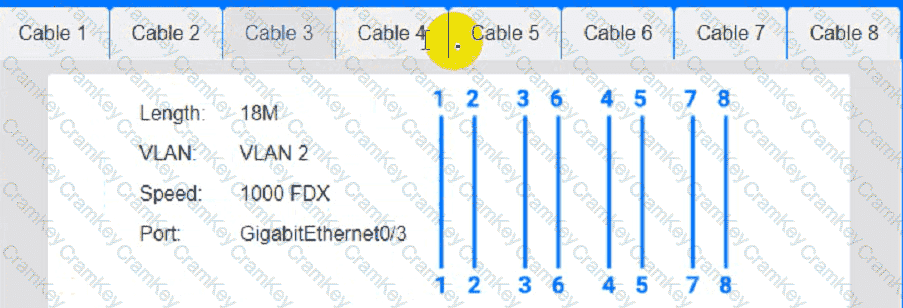

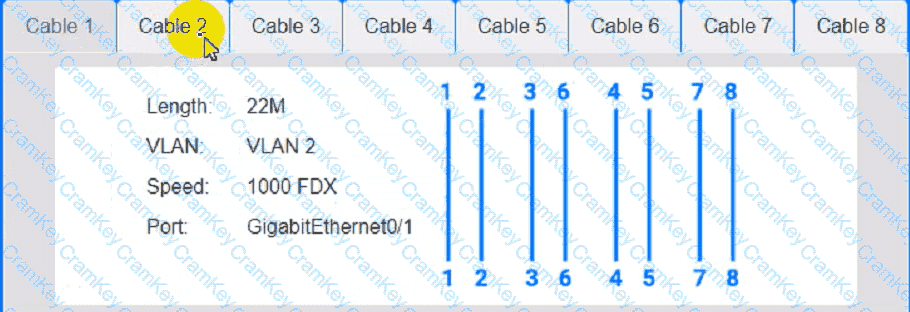

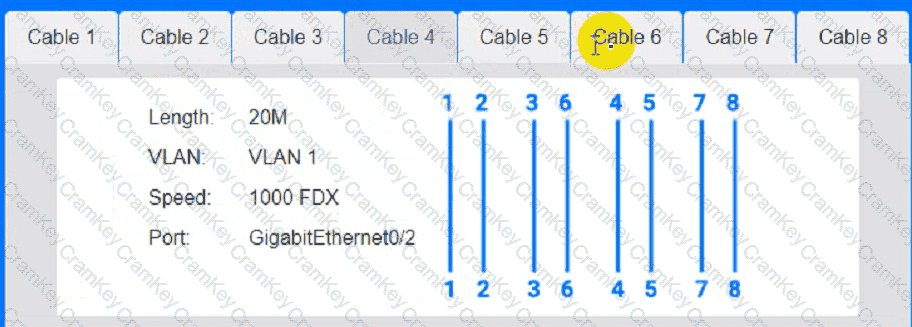

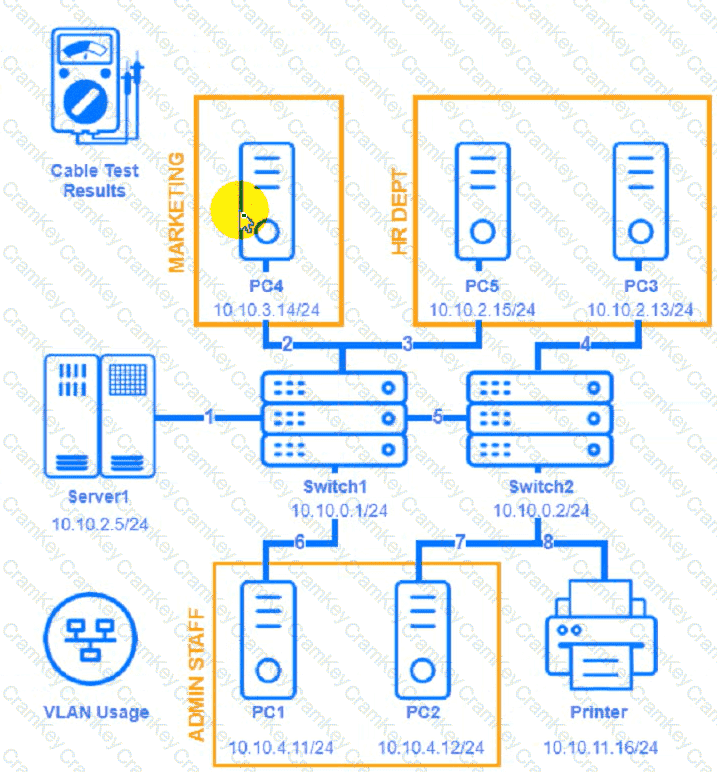

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

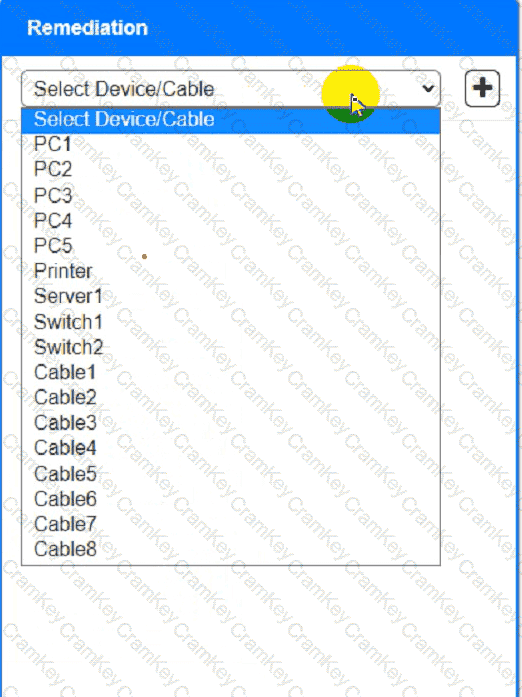

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

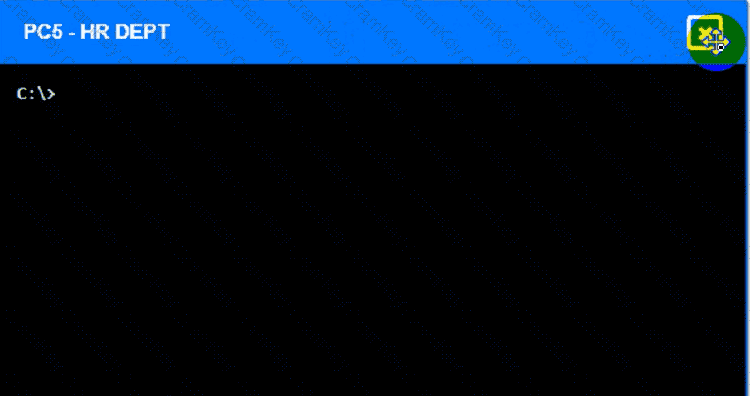

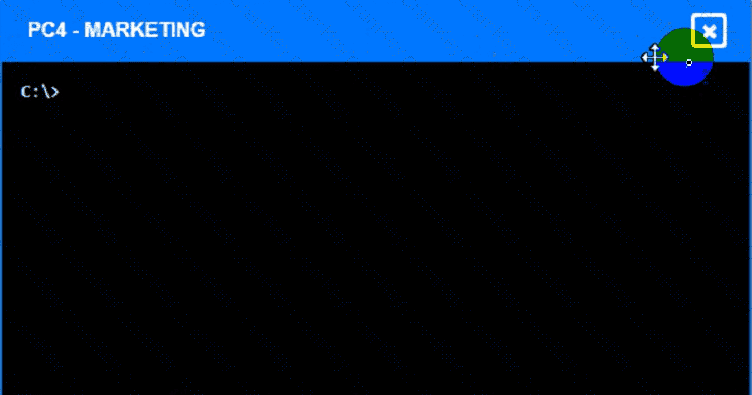

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping < IP address >  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert < IP address >  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace < IP address > with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

Understanding Rack Size Determination:

The size of a rack for installation is determined by the dimensions of the equipment to be housed in it, primarily focusing on the depth and height of the devices.

Switch Depth:

Depth of Equipment: The depth of network switches and other rack-mounted devices directly influences the depth of the rack. If the equipment is deeper, a deeper rack is required to accommodate it.

Industry Standards: Most racks come in standard depths, but it is essential to match the depth of the rack to the deepest piece of equipment to ensure proper fit and airflow.

Server Height:

Height of Equipment: The height of servers and other devices is measured in rack units (U), where 1U equals 1.75 inches. The total height of all equipment determines the overall height requirement of the rack.

Rack Units: A rack ' s height is typically described in terms of the number of rack units it can accommodate, such as 42U, 48U, etc.

Why Other Options are Less Relevant:

KVM Size: While important for management, KVM (Keyboard, Video, Mouse) switches do not typically determine rack size.

Hard Drive Size: Individual hard drives are installed within servers or storage devices, not directly influencing rack dimensions.

Cooling Fan Speed: Fan speed affects cooling but not the physical size of the rack.

Outlet Amperage: Power requirements do not determine rack dimensions but rather the electrical infrastructure supporting the rack.
