CompTIA Updated N10-009 Exam Questions and Answers by ismael

Single-mode fiber is best suited for long-distance communication, often exceeding 10 km (6.2 miles). It ' s immune to EMI and offers high bandwidth — making it the ideal choice for connecting buildings across a city.

Coaxial (A) and Twinaxial (B) are used for shorter distances and specific use cases (e.g., storage or legacy systems).

Cat 5 (D) is limited to 100 meters and is not suitable for city-level interconnects.

✅ For long-distance, high-speed, and reliable communication between buildings, Single-mode fiber is the professional choice.

Routers determine the best route to a destination using longest prefix match. This means the router chooses the route entry with the most specific matching network prefix for the destination IP address. For example, if a routing table contains 10.1.0.0/16 and 10.1.2.0/24, a packet destined to 10.1.2.50 matches both entries, but the router prefers /24 because it is more specific (longer mask). Network+ (N10-009) routing fundamentals emphasize that route selection begins with prefix length specificity before considering other factors within the same prefix length (such as administrative distance and metric, depending on the platform).

“Shortest prefix match” is the opposite of correct behavior. “Routes learned from EIGRP” and “routes learned from OSPF” describe sources of routes, not the general selection rule routers use when multiple matching routes exist. Even if routes come from different protocols, the router still applies selection logic; the universal rule for matching destination networks is longest prefix match. Hence, option C is correct.

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

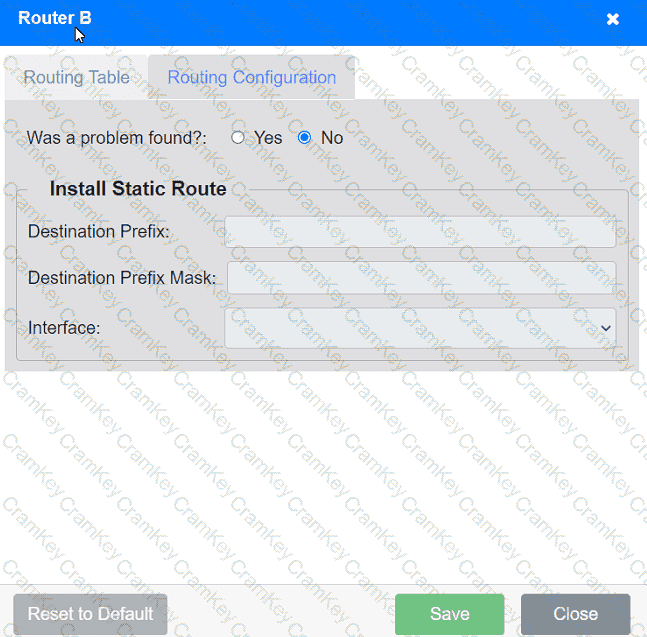

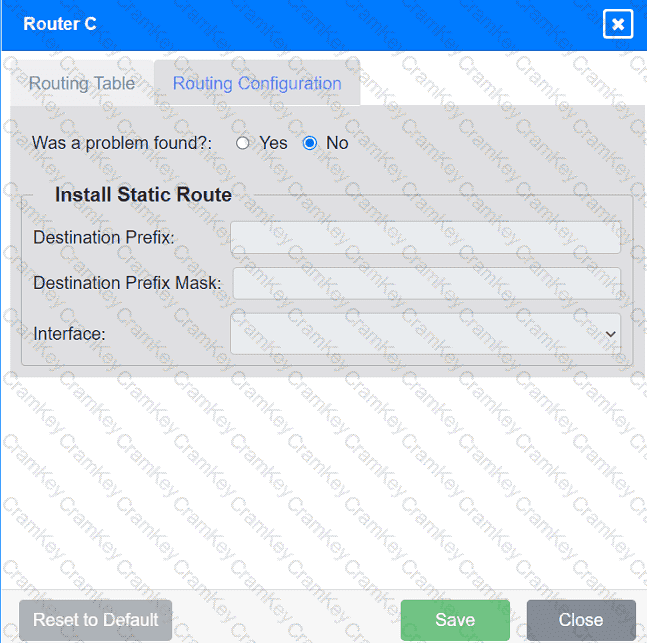

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

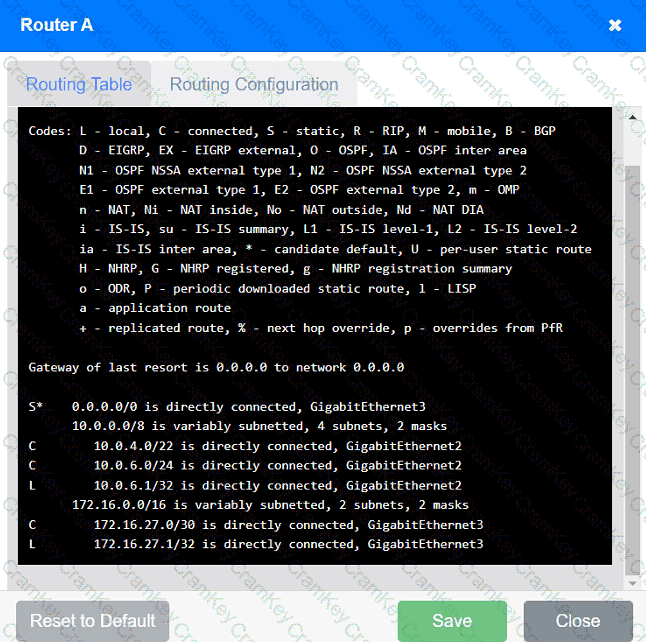

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

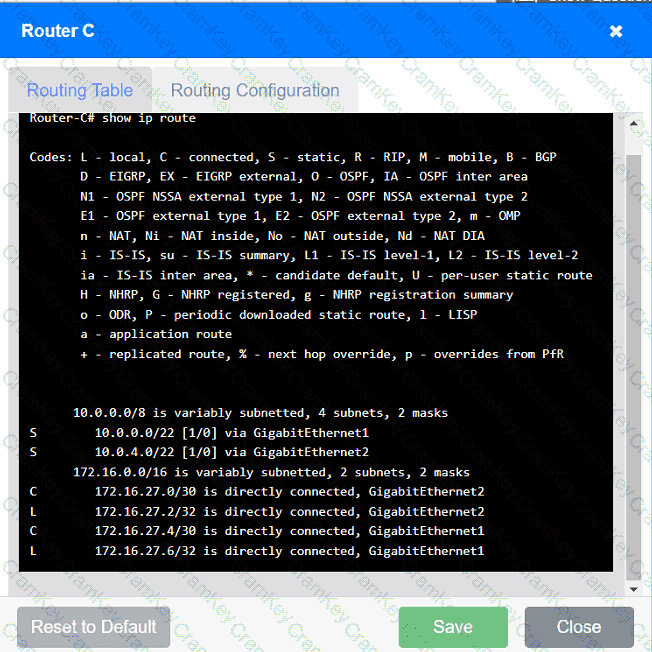

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C ' s IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A ' s IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B ' s IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

Quality of Service (QoS): This is a feature used in networking to prioritize certain types of traffic. By configuring QoS, network administrators can allocate higher bandwidth to time-sensitive applications like VoIP, video conferencing, or critical business applications during peak usage times. This helps to reduce latency and packet loss, which are often caused by congestion.

Load Balancing (A): While load balancing is useful in distributing traffic across multiple servers or paths, it does not address congestion on a single switch.

Port Mirroring (B): This is used for monitoring network traffic for troubleshooting and diagnostics but does not alleviate congestion.

Spanning Tree Protocol (D): STP prevents switching loops in redundant network topologies, but it is not designed to handle traffic prioritization or congestion issues.
