CompTIA Updated N10-009 Exam Questions and Answers by teodor

A split-tunnel VPN allows a device to route some traffic through the VPN (typically corporate traffic) while sending other traffic (like general internet browsing) directly over the local internet connection. This reduces the load on the corporate network because not all traffic is routed through the VPN tunnel.

Site-to-site VPNs are for permanent links between locations.

Full-tunnel VPNs route all traffic through the VPN, increasing the bandwidth usage on the corporate network.

GRE (Generic Routing Encapsulation) is a tunneling protocol that doesn’t encrypt and doesn ' t reduce bandwidth usage by itself.

???? Reference:

CompTIA Network+ N10-009 Official Objectives: 3.3 – Given a scenario, configure and deploy common VPN technologies.

Band Steering: This technology enables wireless devices to connect to the most optimal frequency band (2.4 GHz or 5 GHz) by encouraging capable devices to switch to the less congested 5 GHz band. This improves overall network performance and prevents overcrowding on the 2.4 GHz band.

Wireless LAN controller (B): This manages multiple access points in a network but does not handle frequency optimization.

Directional antenna (C): This focuses the signal in a specific direction but does not affect frequency selection.

Autonomous access point (D): This operates independently but lacks advanced features like band steering.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

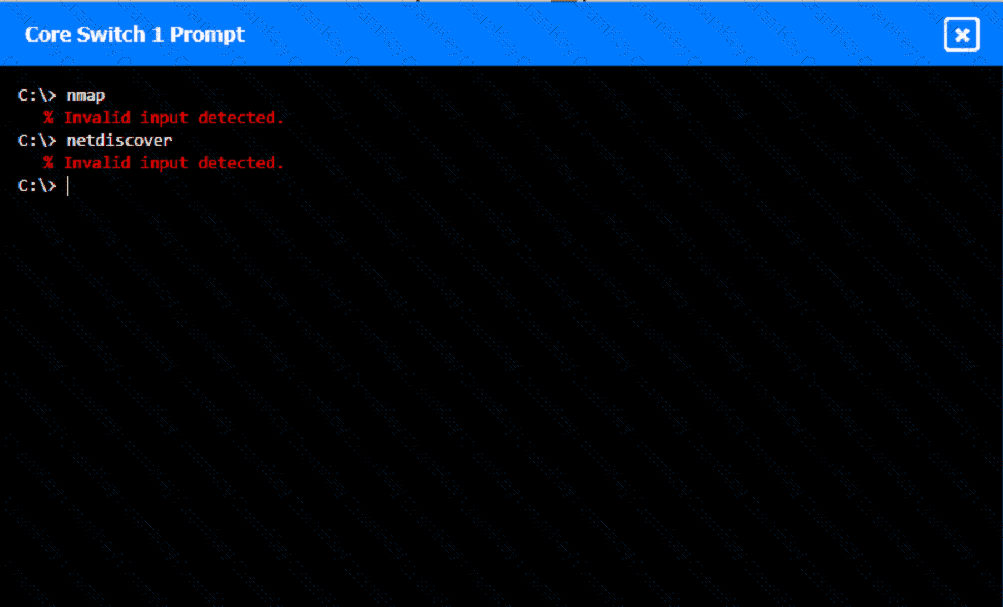

To perform a network discovery by entering commands into the terminal, you can use the following steps:

Click on each switch to open its terminal window.

Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.

Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.

Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is 192.168.1.1.

The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.

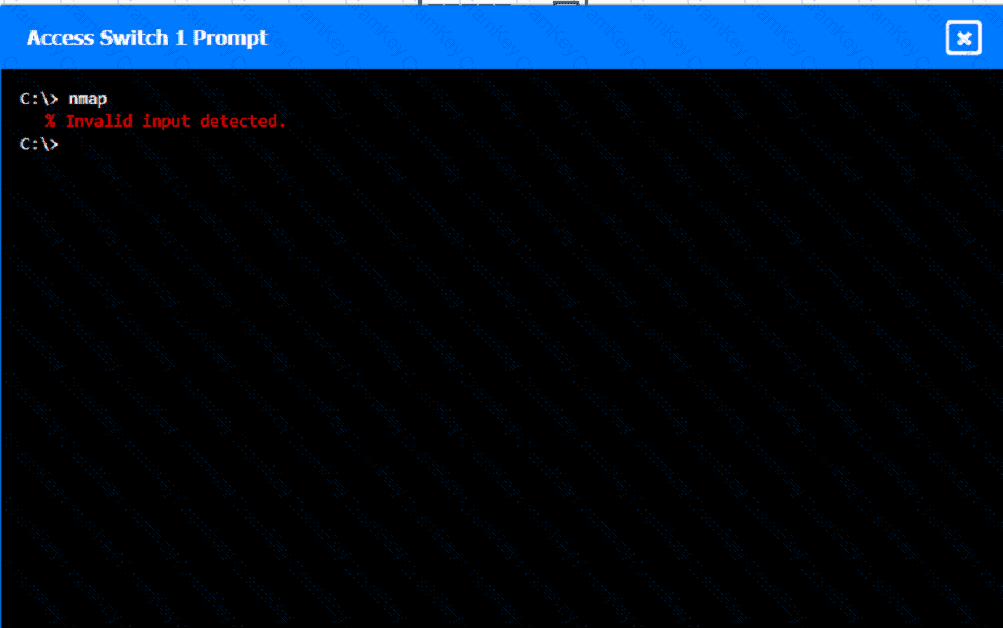

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

If the business shares or duplicates the ISP-assigned public IP address, routing instability and conflicts will occur. Pinging a public IP like 8.8.8.8 may work (since ICMP can bypass certain conflicts), but browsing websites (which requires stable sessions and return traffic) will fail intermittently.

A. If the default gateway were incorrect, no external connectivity would work at all.

B. VLAN mismatch is an internal issue, not affecting ISP routing.

C. Subnet mask misconfiguration would prevent consistent routing but usually blocks ping too.

References (CompTIA Network+ N10-009):

Domain: Network Troubleshooting — Internet connectivity issues, ISP IP conflicts.
