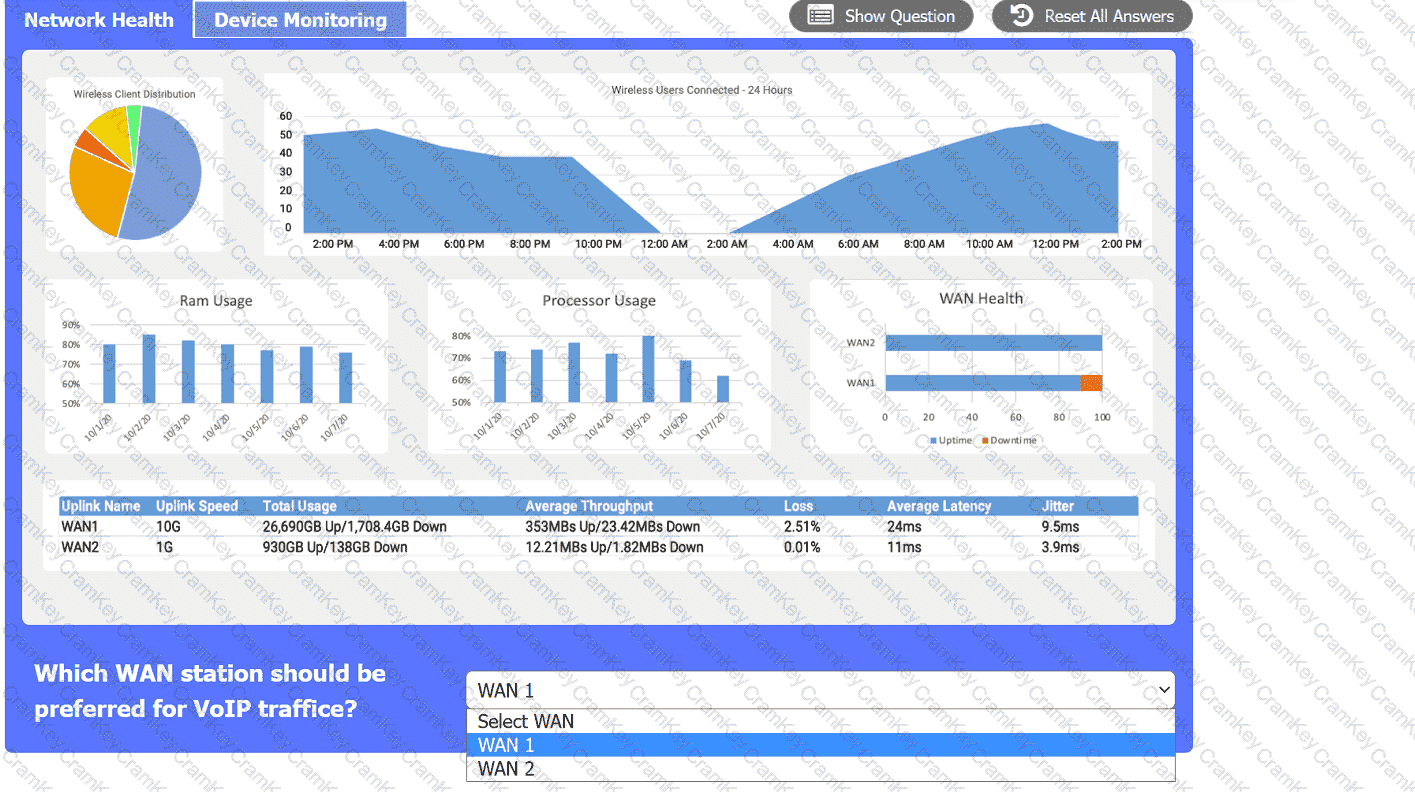

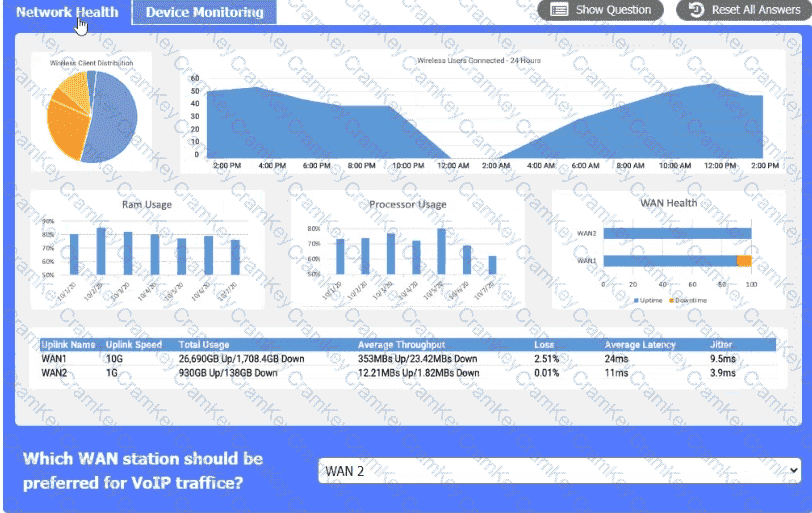

Network Health:

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here ' s the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

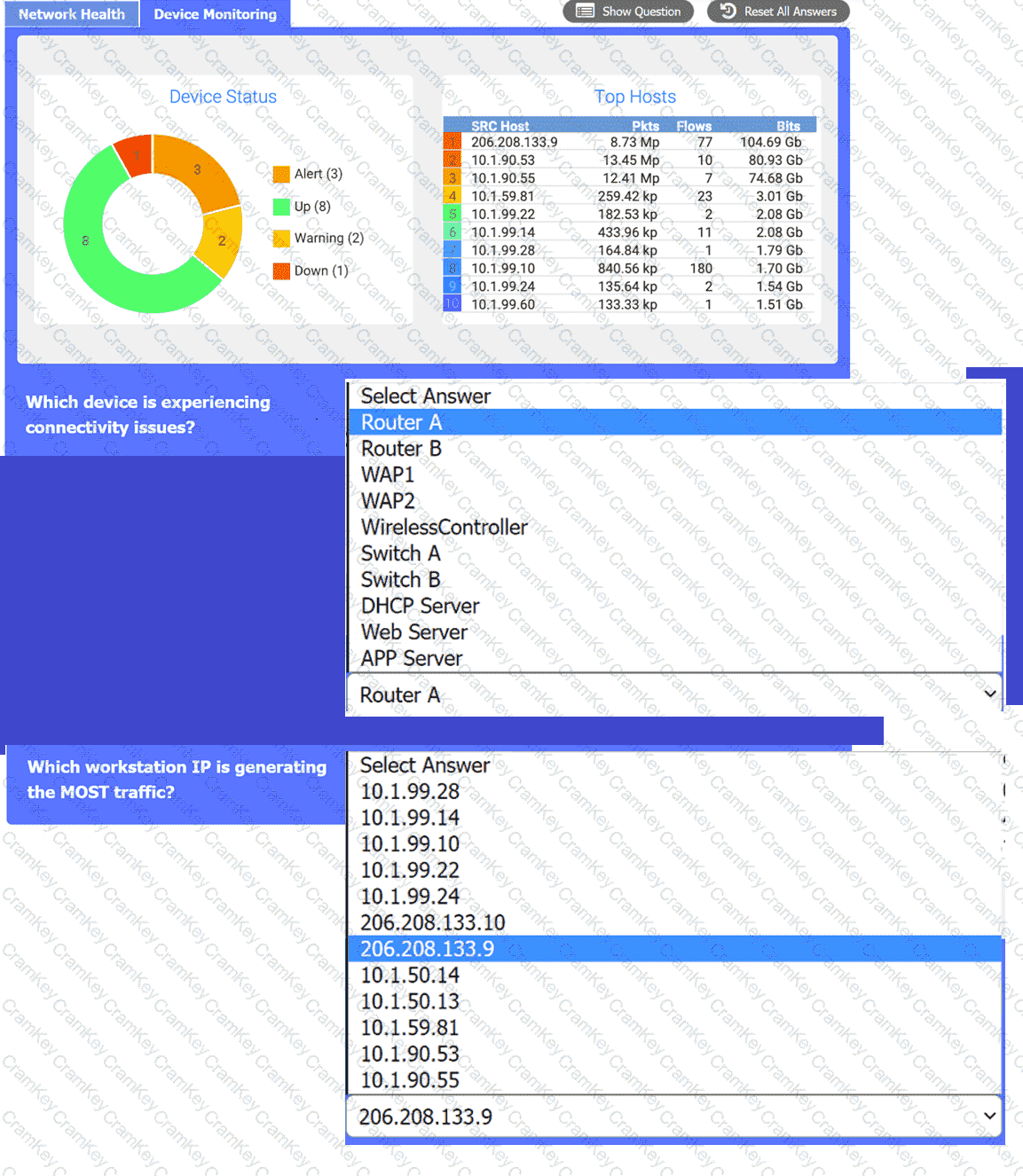

Device Monitoring:

the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

A screenshot of a computer AI-generated content may be incorrect.

Comprehensive and Detailed Explanation (aligned to N10-009):

802.1X provides port-based Network Access Control (NAC), requiring authentication (often through RADIUS) before granting access. This is the standard for enterprise authentication on both wired and wireless networks.

A. 802.1Q defines VLAN trunking.

C. 802.3bt defines higher-power PoE.

D. 802.11h deals with spectrum management in wireless.

References (CompTIA Network+ N10-009):

Domain: Network Security — NAC, 802.1X authentication.

Console Access:

Purpose: Console access to a switch allows administrators to configure and manage the device directly. This is typically done using a terminal emulator program on a computer.

RJ45 Connector:

Common Use: The RJ45 connector is widely used for Ethernet cables and also for console connections to network devices like switches and routers.

Console Cables: Console cables often have an RJ45 connector on one end (for the switch) and a DB9 serial connector on the other end (for the computer).

Comparison with Other Connectors:

ST (Straight Tip): A fiber optic connector used for networking, not for console access.

BNC (Bayonet Neill-Concelman): A connector used for coaxial cable, typically in older network setups and not for console access.

SFP (Small Form-factor Pluggable): A modular transceiver used for network interfaces, not for console access.

Practical Application:

Connection Process: Connect the RJ45 end of the console cable to the console port of the switch. Connect the DB9 end (or USB via adapter) to the computer. Use a terminal emulator (e.g., PuTTY, Tera Term) to access the switch’s command-line interface (CLI).

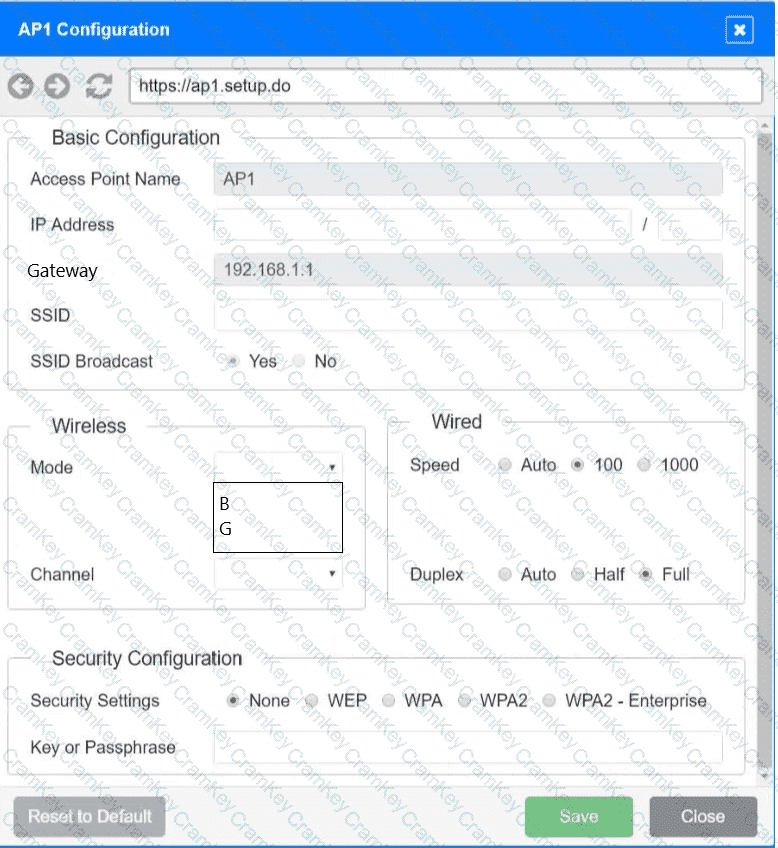

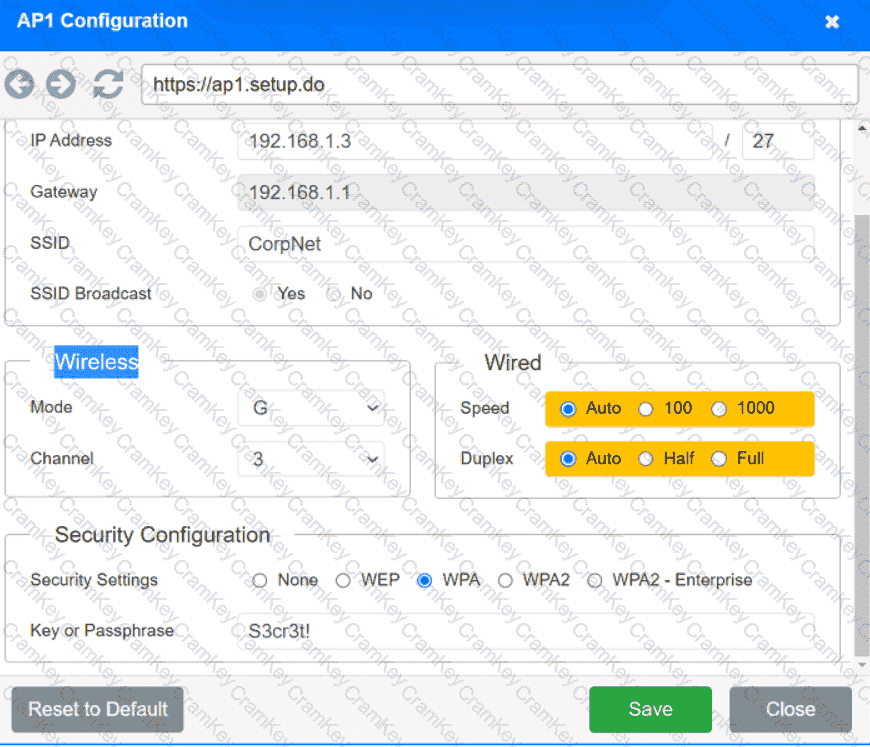

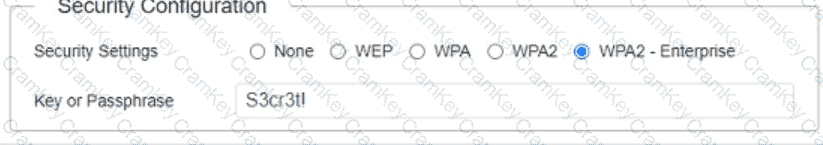

On the first exhibit, the layout should be as follows

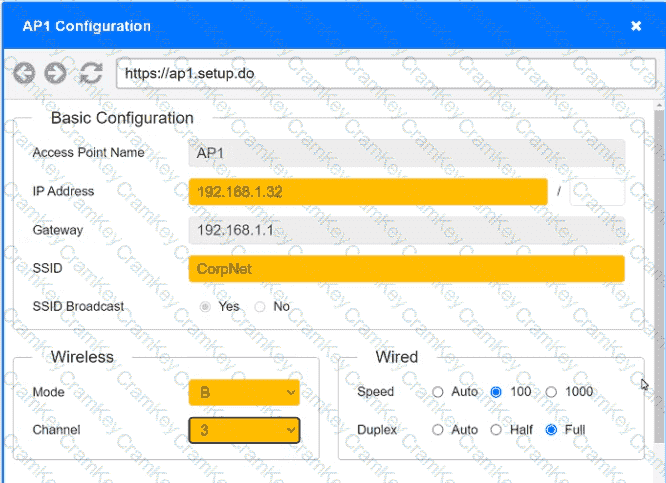

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

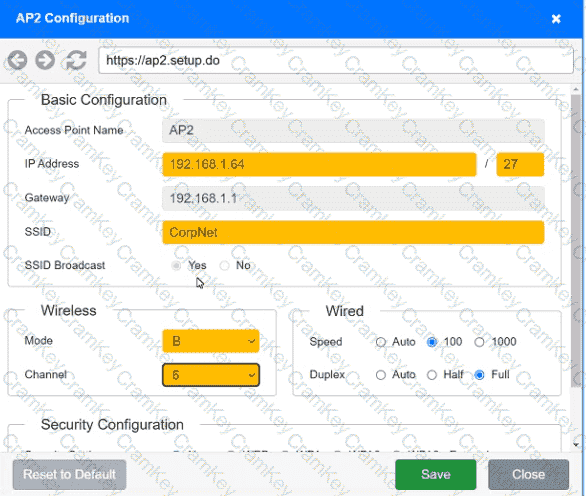

Exhibit 2 as follows

Access Point Name AP2

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

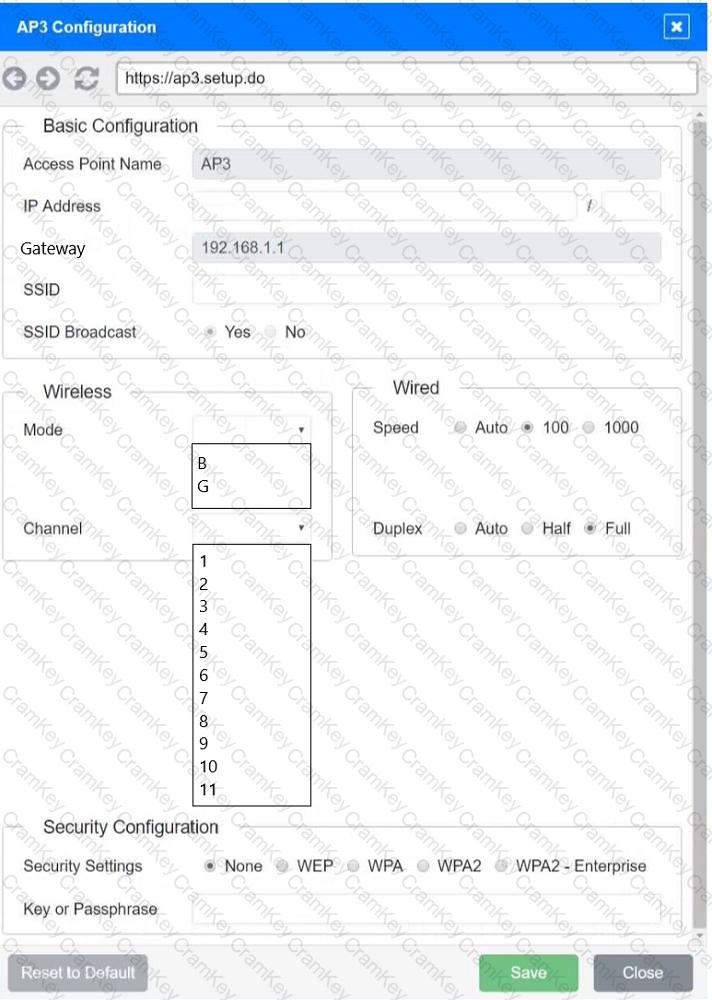

Exhibit 3 as follows

Access Point Name AP3

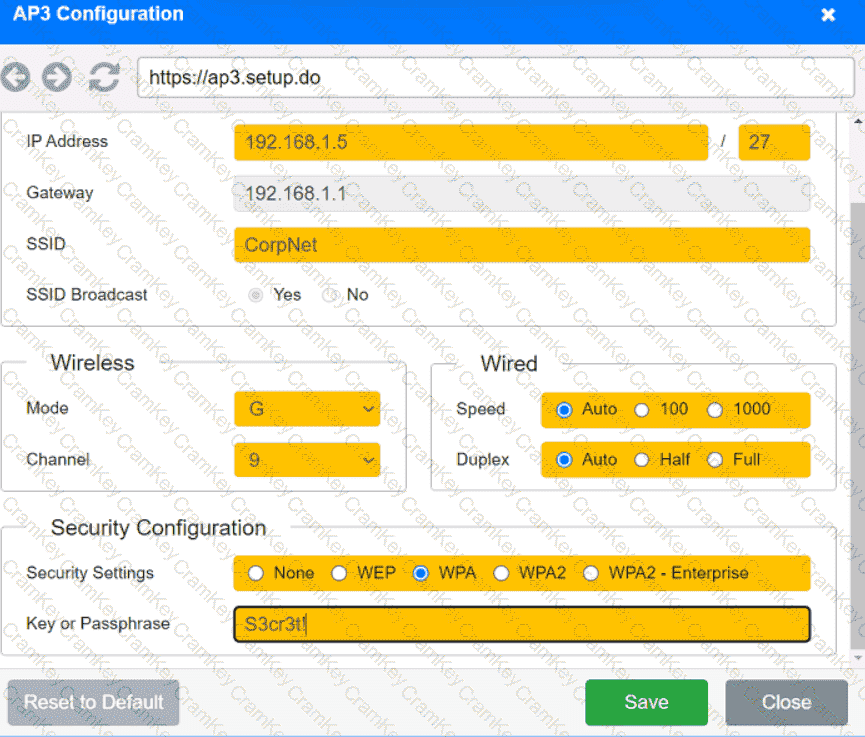

A screenshot of a computer AI-generated content may be incorrect.
