CompTIA Updated N10-009 Exam Questions and Answers by kylian

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

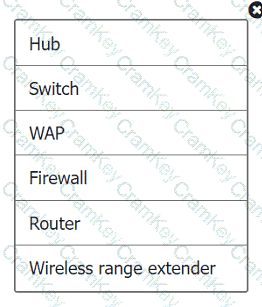

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

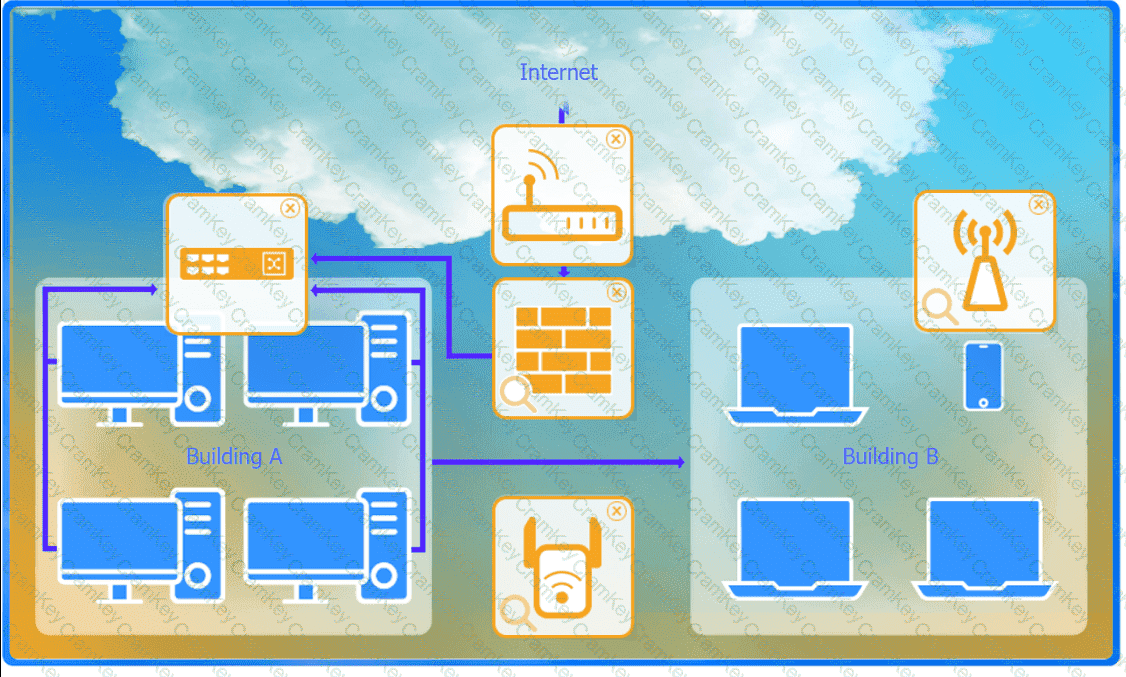

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

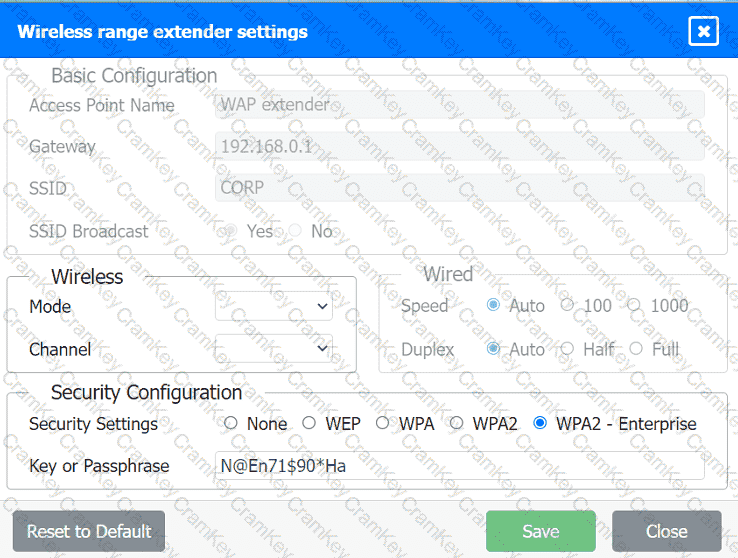

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to " CORP " as shown in the exhibit.

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the " Key or Passphrase " field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to " Auto " unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to " Auto " unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the " Save " button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

The correct answer is C. Compatibility . A SIEM is only effective if it can successfully collect, normalize, and analyze data from the systems the organization relies on. Since the question specifically says the department wants the SIEM to ingest and analyze logs from all core devices , the most important factor is whether the SIEM is compatible with those devices, their log formats, and their supported methods of exporting events.

This includes support for common logging methods such as syslog , SNMP traps, API integrations, agent-based collection, and vendor-specific event formats. Even a SIEM with excellent features will not deliver value if it cannot properly receive and interpret logs from firewalls, routers, switches, servers, and security appliances already in use.

The other choices matter, but they come after compatibility. Ease of management is helpful for daily operations. Cost is always a practical concern. Features can improve visibility and automation. However, none of those benefits matter much if the SIEM cannot integrate with the organization’s actual environment.

For Network+ exam purposes, when log ingestion across many device types is the requirement, the top selection criterion is compatibility . Without that foundation, correlation, alerting, and security analysis will be incomplete.

Traffic analysis involves monitoring and inspecting network traffic flows to detect unusual patterns, such as a workstation sending large volumes of outbound SMTP (spam). This process enables identification of malware as the root cause.

B. Availability monitoring checks uptime but doesn’t diagnose spam traffic.

C. Baseline metrics show normal usage but don’t pinpoint infected hosts.

D. Network discovery identifies devices, not malicious traffic flows.

References (CompTIA Network+ N10-009):

Domain: Network Security — Traffic analysis, malware detection, identifying compromised hosts.

The correct answer is B. EOL documentation . If a network engineer wants to confirm whether a device is still receiving updates, patches, or vendor support, the first thing to review is the vendor’s End-of-Life (EOL) and often related End-of-Support (EOS) documentation. These documents show whether the device is still actively supported, whether firmware and security updates are still being issued, and when that support is scheduled to stop.

This is important in network operations because devices that are no longer supported can become security risks and operational liabilities. Once a vendor declares a product end-of-life or end-of-support, future bug fixes, feature releases, and security updates may no longer be available. That directly affects patch management, lifecycle planning, and risk assessment.

The other choices do not answer the question as directly. A baseline configuration shows the intended device settings, not the support status. Asset inventory licensing helps track ownership, software entitlements, or subscriptions, but it does not prove that updates are still being released. Software development life cycle refers to the process of building software, not the support state of a deployed network device.

For Network+ exam purposes, when the question asks whether updates are still being released, the best source is the vendor’s EOL documentation .
