GRE (Generic Routing Encapsulation) is not a Layer 2 VPN technology. Instead, it is a Layer 3 tunneling protocol used to encapsulate a wide variety of network layer protocols inside point-to-point connections. GRE is commonly used for creating VPN tunnels across IP networks,allowing for the transport of various types of payloads. This misunderstanding about GRE being a Layer 2 technology contradicts its definition and typical application ​.

Comprehensive and Detailed In-Depth Explanation:

When a packet is checked against anAccess Control List (ACL), it is processed based on rule matches.

"Unmatched" scenariosoccur if:

A. TRUE→ The packetdoes not match any ACL rule.

C. TRUE→No ACL is configured, so there are no rules to match.

D. TRUE→An empty ACL exists, meaning no rules are defined.

B is incorrectbecauseif the packet matches a deny rule, it is "matched" and explicitly dropped, not "unmatched".

????Reference:Huawei HCIA-Datacom Study Guide, ACL Rule Matching and Processing Logic.

Routing Entries in PIM

(S, G) entries: Represent the shortest path tree (SPT) from a specific source (S) to a specific multicast group (G). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

InPIM-DM, multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

InPIM-SM, multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters​​.

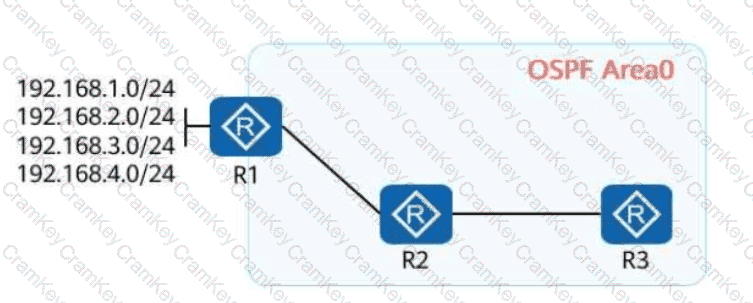

Goal Analysis:

Requirement:

The route to192.168.3.0/24must exist in R1's and R3's routing tables.

The route mustnot exist in R2's routing table.

This requires filtering to ensure the route is either:

Blocked on R2's routing table (via filtering on R2), or

Blocked before it is advertised to R2.

Analysis of Each Option:

Option A (Filter-policy on R2 for filtering received routes):

Applying a filter-policy on R2 to filter received routes will block the route from entering R2's routing table but still allow it to propagate to R3.

This meets the requirement.

Option B (Filter-policy on R2 for filtering the routes to be advertised):

Blocking the advertisement of routes from R2 to other routers does not affect the routes received by R2 itself.

This does not meet the requirement but does not affect the propagation to R3.

This is valid if the received route is blocked.

Option C (Filter-policy on R1 for filtering the routes to be imported):

If the route is filtered on R1 during the import phase, the route will not exist in R1’s routing table and thus cannot be advertised to either R2 or R3.

This fails to meet the requirement because the route must exist in R1's and R3's routing tables.

Option D (Filter-policy on R1 for filtering the imported routes to be advertised):

Filtering routes on R1 before advertising to R2 will prevent R2 from receiving the route but allow R1 to advertise the route to R3.

This meets the requirement.

Correct Option:

C (Filter-policy on R1 for filtering the routes to be imported):This will prevent the route from existing in both R1 and R3, violating the stated requirement.
