The command output indicates that the OSPF neighbor state is Full and that the neighbor relationship has been established. The statement confirms that the negotiation process during the exchange of DD (Database Description) packets has determined the role of the router, with the local device becoming the slave in the Master-Slave relationship, which is critical for LSA synchronization. The other options do not align with the output or OSPF principles ​

Comprehensive and Detailed In-Depth Explanation:

Source-Specific Multicast (SSM) uses (S, G) addressing instead of the traditional (*, G) used in Any-Source Multicast (ASM).

IGMP SSM Mapping is used to enable IGMPv1 and IGMPv2 hosts (which do not support explicit source selection) to work in an SSM environment by mapping (*, G) to (S, G).

A. TRUE → The mapping allows IGMPv1/v2 to function in an SSM network.

B. TRUE → IGMPv3 natively supports SSM, so SSM mapping is not needed for IGMPv3.

C. FALSE → The SSM address range is 232.0.0.0/8 in IPv4, but this is not the only range used for SSM globally.

D. TRUE → If IGMP SSM mapping is disabled, IGMPv1/v2 cannot work in an SSM network because they do not support explicit source selection.

???? Reference: Huawei HCIA-Datacom Study Guide, IGMP Versions and SSM Mapping.

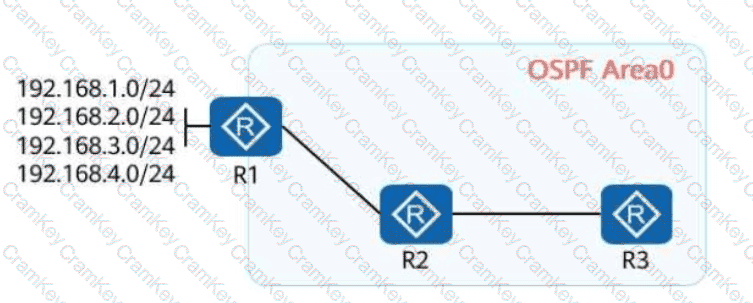

Goal Analysis:

Requirement:

The route to 192.168.3.0/24 must exist in R1's and R3's routing tables.

The route must not exist in R2's routing table.

This requires filtering to ensure the route is either:

Blocked on R2's routing table (via filtering on R2), or

Blocked before it is advertised to R2.

Analysis of Each Option:

Option A (Filter-policy on R2 for filtering received routes):

Applying a filter-policy on R2 to filter received routes will block the route from entering R2's routing table but still allow it to propagate to R3.

This meets the requirement.

Option B (Filter-policy on R2 for filtering the routes to be advertised):

Blocking the advertisement of routes from R2 to other routers does not affect the routes received by R2 itself.

This does not meet the requirement but does not affect the propagation to R3.

This is valid if the received route is blocked.

Option C (Filter-policy on R1 for filtering the routes to be imported):

If the route is filtered on R1 during the import phase, the route will not exist in R1’s routing table and thus cannot be advertised to either R2 or R3.

This fails to meet the requirement because the route must exist in R1's and R3's routing tables.

Option D (Filter-policy on R1 for filtering the imported routes to be advertised):

Filtering routes on R1 before advertising to R2 will prevent R2 from receiving the route but allow R1 to advertise the route to R3.

This meets the requirement.

Correct Option:

C (Filter-policy on R1 for filtering the routes to be imported): This will prevent the route from existing in both R1 and R3, violating the stated requirement.
