Huawei Updated H12-821_V1.0 Exam Questions and Answers by paddy

The hardware modules of Huawei modular devices and their functions are:

Main Processing Unit (MPU): Provides control and management planes for the entire system, responsible for protocol processing, system security, and software upgrades.

Switch Fabric Unit (SFU): Provides the data plane, enabling high-speed data switching between service modules.

Line Processing Unit (LPU): Manages data forwarding, offering various interfaces (optical and electrical) for data access​​.

Comprehensive and Detailed Step-by-Step Explanation:

1. What is GRE (Generic Routing Encapsulation)?

GRE is a tunneling protocol that allows the encapsulation of various types of packets (e.g., IPv4, IPv6, multicast, etc.) to be transmitted over another protocol (e.g., IP).

GRE is used to create point-to-point connections over heterogeneous networks.

2. Analysis of Each Option:

Option A: GRE is a Layer 2 VPN encapsulation technology.

Incorrect.

GRE operates at Layer 3 (Network Layer) and encapsulates Layer 3 packets. It is not a Layer 2 VPN encapsulation technology like MPLS or Ethernet-over-IP.

Option B: GRE enables encapsulated data packets to be transmitted over another network layer protocol, but cannot encapsulate multicast data.

Incorrect.

GRE supports the encapsulation and transmission of multicast data packets. This is one of its key features, making it suitable for protocols like OSPF and multicast applications.

Option C: GRE tunnels can work with IPsec to ensure the security of multicast services such as voice and video.

Correct.

GRE by itself does not provide encryption or security. However, GRE can work with IPsec to secure the encapsulated traffic, including multicast data, for services like voice and video.

Option D: GRE tunnels can extend the working range of network protocols with hop limits.

Correct.

GRE encapsulates packets, effectively resetting their hop limits and allowing protocols with limited hop counts (e.g., RIP) to work over larger networks.

3. Summary:

The correct options are C and D .

Comprehensive and Detailed Step-by-Step Explanation:

Session Creation in Firewalls:

Firewalls create session entries for packets requiring stateful inspection (e.g., TCP, UDP, ICMP, and GRE).

Subsequent fragments of large packets do not require new sessions. Instead, they are processed based on the session created for the first fragment.

Correct Option:

C (Subsequent Fragment): Does not trigger a new session entry as it belongs to an existing session.

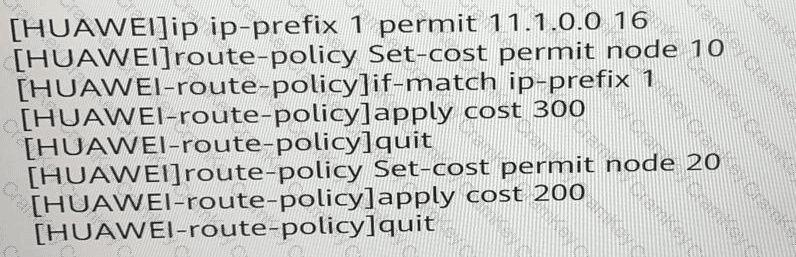

The route-policy configuration specifies that node 10 matches the IP prefix 11.1.0.0/16 and applies a cost of 300 to this route. Once a route matches a node, it is no longer processed by subsequent nodes, making option D incorrect. Option B is also incorrect because only specific matching routes have their costs changed ​.
