Comprehensive and Detailed Step-by-Step Explanation:

1. IPv6 and Neighbor Discovery Protocol (NDP):

In IPv4, a host uses ARP (Address Resolution Protocol) to map an IP address to a MAC address for communication.

In IPv6, ARP is not used. Instead, IPv6 uses the Neighbor Discovery Protocol (NDP) for address resolution.

2. Why the Statement is FALSE:

IPv6 does not use ARP for resolving link-layer addresses.

IPv6 uses NDP, which operates through ICMPv6 messages to perform the equivalent function.

3. Summary:

The statement is FALSE because IPv6 uses NDP, not ARP, to obtain the link-layer address of the destination host.

1. Understanding Prefix List Configuration:

The command ip ip-prefix huawei index 10 permit 10.1.1.0 24 greater-equal 26 defines a prefix filter:

The base prefix is 10.1.1.0/24.

The greater-equal 26 condition specifies that the mask length of matching prefixes must be at least 26 bits.

If the less-equal parameter is not explicitly defined, the default value is 32, meaning the longest possible mask length for IPv4.

2. Explanation of Values:

greater-equal-value: Specifies the minimum mask length. In this case, the value is 26.

less-equal-value: Specifies the maximum mask length. Since it is not explicitly configured, the default value is 32.

3. Summary:

greater-equal-value = 26

less-equal-value = 32

The Designated Intermediate System (DIS) in an IS-IS broadcast network sends Complete Sequence Number PDUs (CSNPs) at a default interval of 30 seconds. This interval ensures periodic synchronization of the Link State Database (LSDB) among IS-IS neighbors ​.

Understanding DIS Election in IS-IS:

On an IS-IS broadcast network, a Designated Intermediate System (DIS) is elected to create and update pseudonodes for efficient communication.

The election is based on the following criteria:

DIS Priority: The router with the highest priority is elected as the DIS.

Router ID (tie-breaker): If priorities are equal, the router with the highest Router ID is elected.

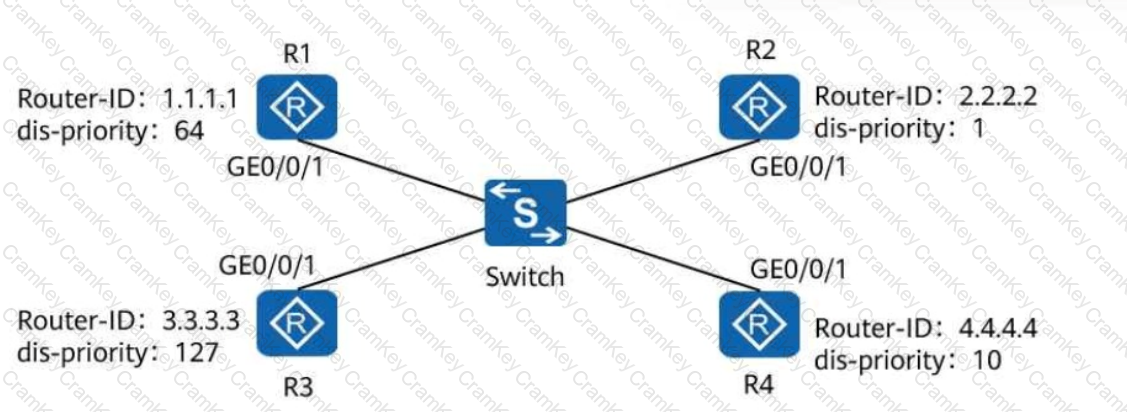

Analyzing the DIS Priorities and Router IDs:

R1: Priority = 64, Router ID = 1.1.1.1

R2: Priority = 1, Router ID = 2.2.2.2

R3: Priority = 127, Router ID = 3.3.3.3

R4: Priority = 10, Router ID = 4.4.4.4

Among the routers, R3 has the highest DIS priority (127), making it the DIS.

Correct Option:

Option B (R3): Correct, as R3 has the highest priority.

Option A (R1): Incorrect, as its priority is lower (64).

Option C (R4): Incorrect, as its priority is lower (10).

Option D (R2): Incorrect, as its priority is the lowest (1).

References:

HCIA-Datacom Study Guide, Chapter: IS-IS DIS Election

Huawei IS-IS Configuration and DIS Role Details
