Cisco Updated 350-401 Exam Questions and Answers by saint

Solution:

R22

config t

int tunn0

vrf forwarding FINANCE

ip add 10.11.22.2 255.255.255.0

tunn so e0/0

tunn dest 209.165.200.230

no shut

int et0/1

vrf forward FINANCE

ip add 10.22.22.1 255.255.255.252

no shut

ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0

wr

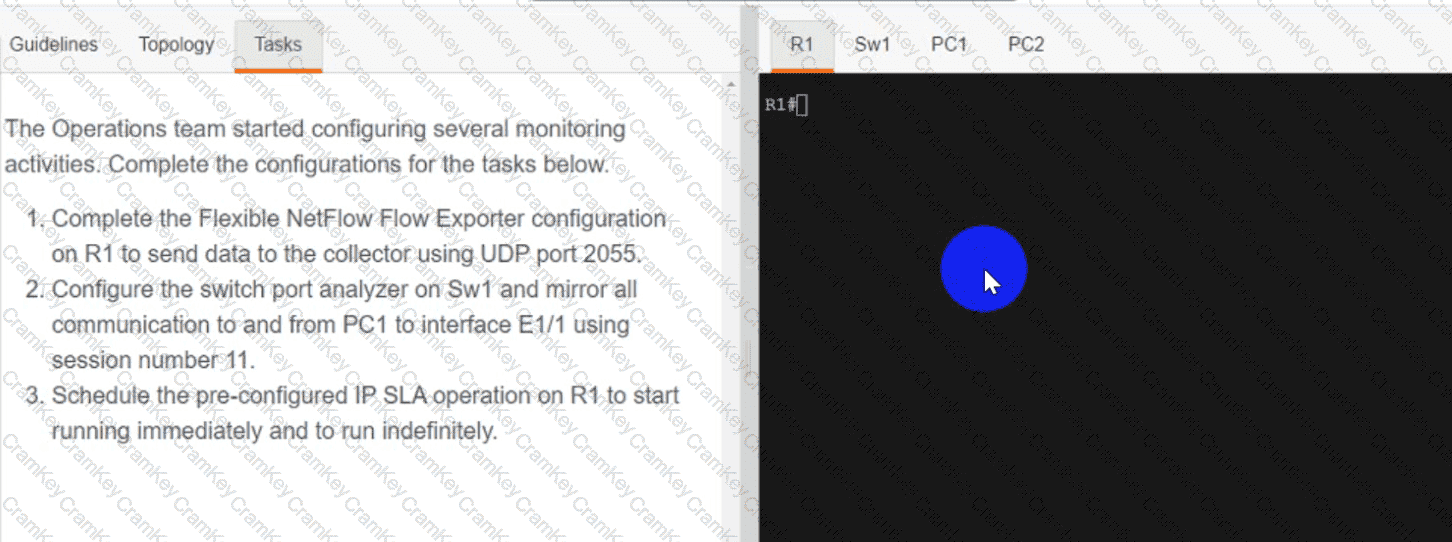

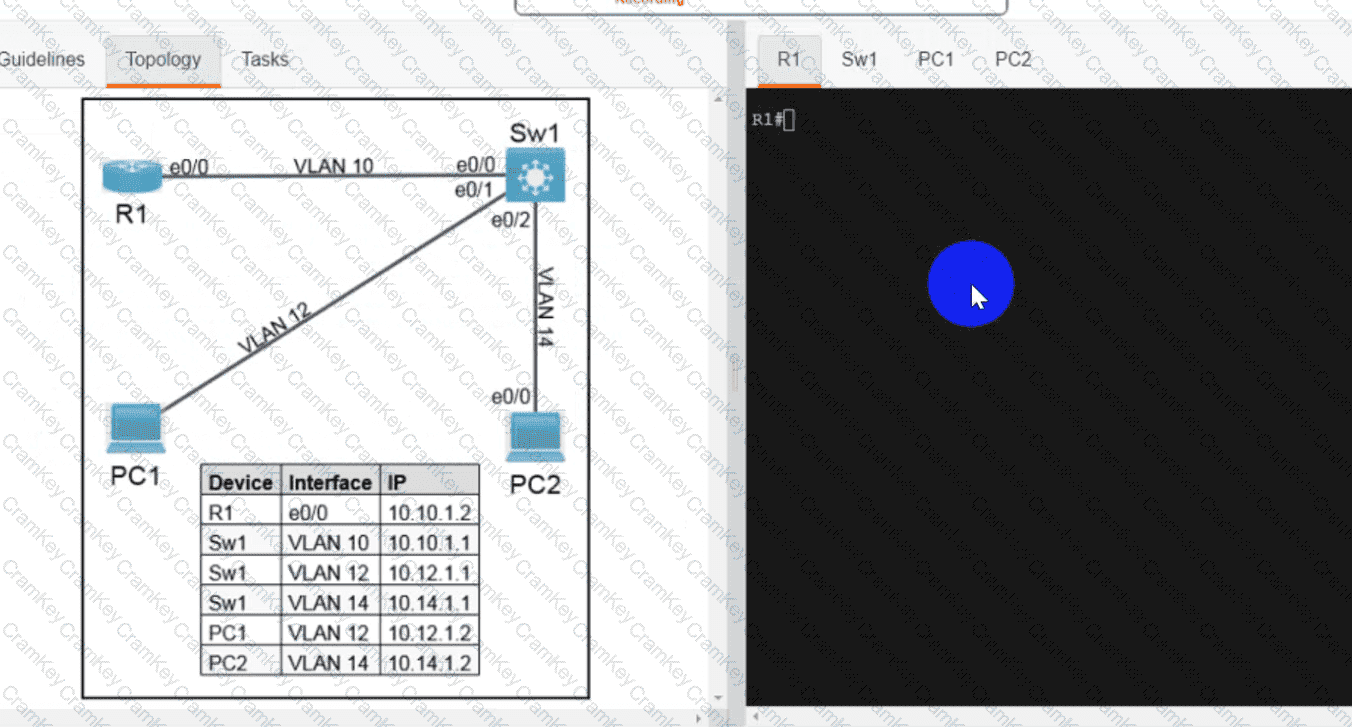

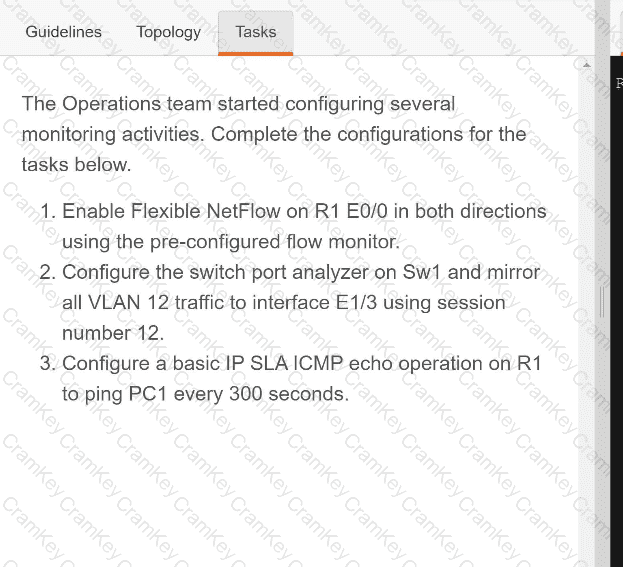

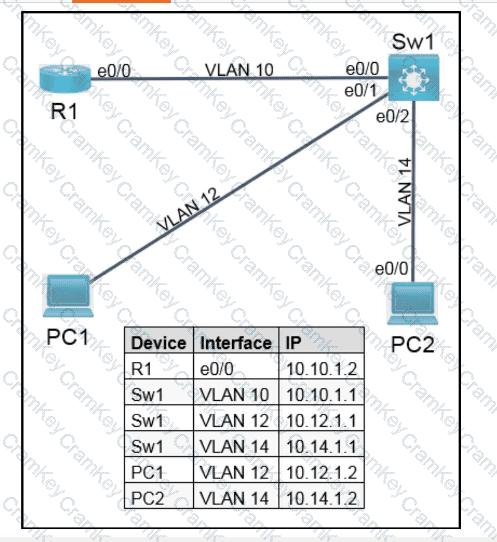

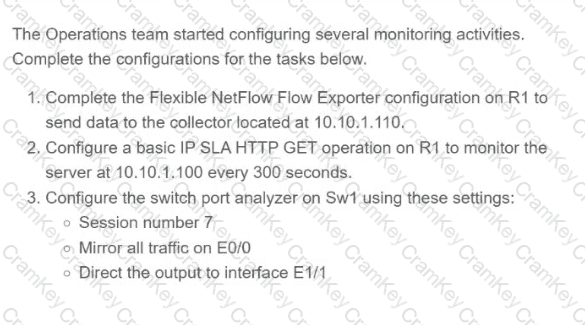

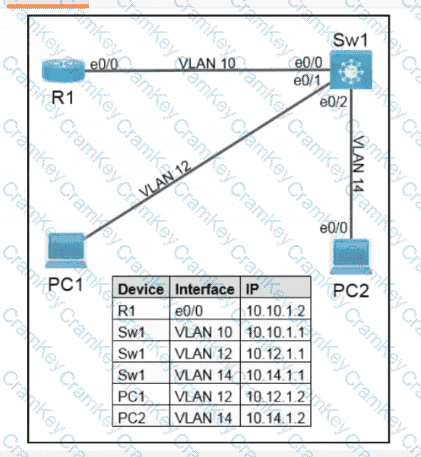

Solution:

R1

config t

flow record NetFlow-Record

match ipv4 source address

match ipv4 destination address

collect country bytes

flow exporter NetFlow-Exporter

destination 10.10.1.10

transport udp 9996

flow monitor NetFlow-Monitor

record NetFlow-Record

exporter NetFlow-Exporter

exit

int et0/0

ip flow monitor NetFlow-Monitor input

ip sla 1

http get http://10.10.1.100

frequency 600

exit

ip sla schedule 1 start-time now

wr

Sw1

config t

monitor session 2 source int e0/0

monitor session 2 source int et0/2

monitor session 2 destination interface e1/0

wr

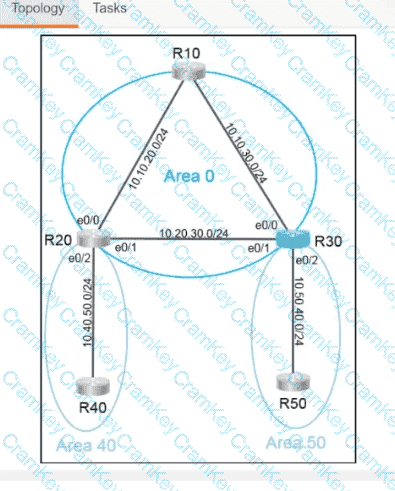

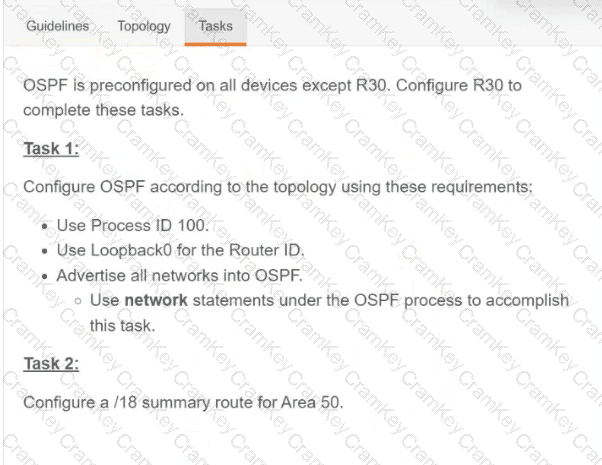

Solution:

R30

Config t

router ospf 10

router-id 10.0.1.30

int ran lo0 , e0/0-1

ip ospf 10 a 0

exit

int et0/2

ip ospf 10 a 50

exit

router ospf 10

area 50 range 10.10.0.0 255.255.128.0

area 50 range 10.50.0.0 255.255.128.0

end

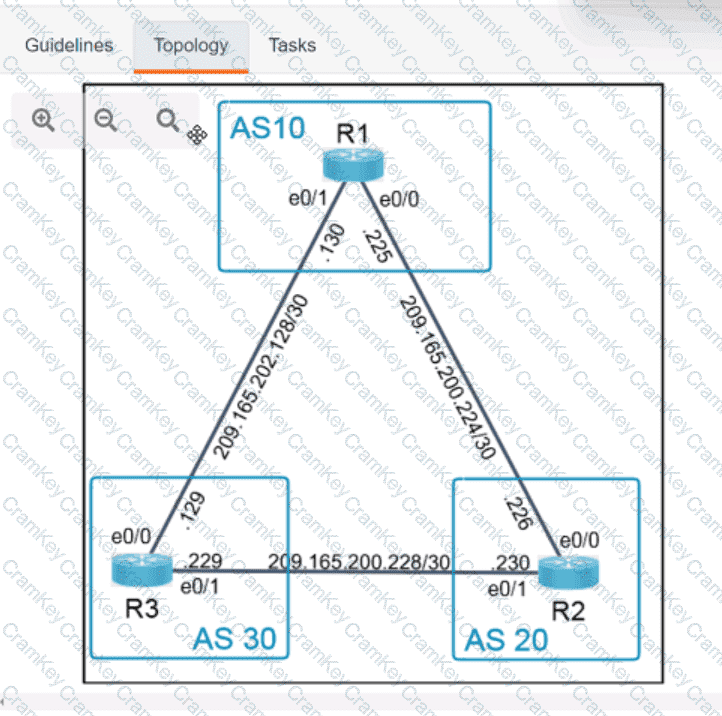

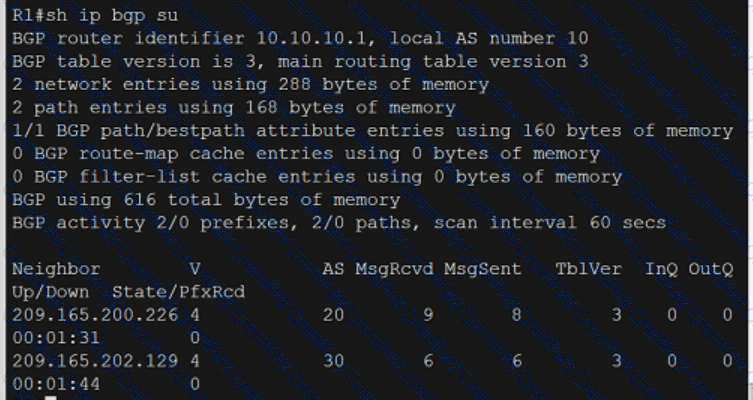

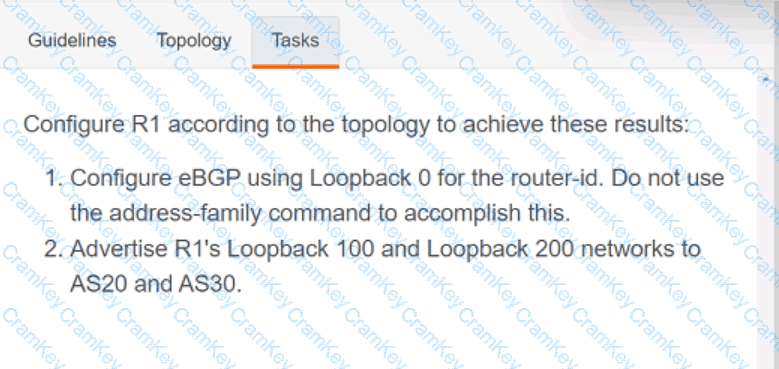

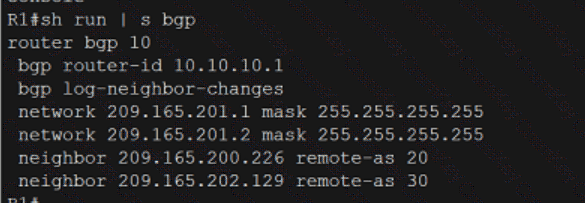

Solution:

router bgp 10

bgp router-id 10.1.1.111

no bgp defa ipv4-unicast

nei 209.165.200.226 remote-as 20

nei 209.165.202.130 remote-as 30

address-family ipv4

neigh 209.165.200.226 activate

neigh 209.165.202.130 activate

network 10.1.1.10 mask 255.255.255.255

network 209.165.201.10 mask 255.255.255.255

network 209.165.201.20 mask 255.255.255.255

wr
