Huawei Updated H12-831_V1.0 Exam Questions and Answers by betty

Comprehensive and Detailed In-Depth Explanation:

Understanding DHCP Snooping and Trusted/Untrusted Ports

1. What is DHCP Snooping?

DHCP Snooping is a security feature that prevents rogue DHCP servers from providing unauthorized IP configurations to clients.

It categorizes switch ports into:

Trusted Ports: Allow DHCP Offer and ACK messages from a legitimate DHCP server.

Untrusted Ports: Block unauthorized DHCP responses to prevent rogue DHCP attacks.

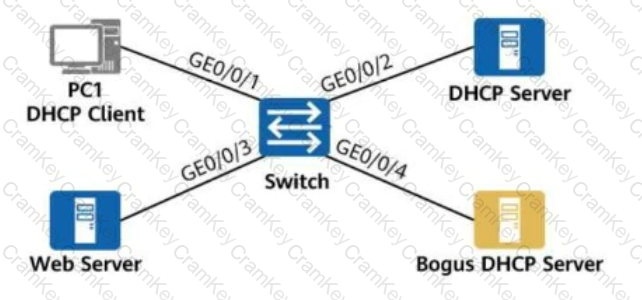

Analyzing the Network Setup in the Figure

Interface

Connected Device

DHCP Role

Should it be Trusted?

GE0/0/1

PC1 (DHCP Client)

Requests DHCP leases

❌ Untrusted

GE0/0/2

DHCP Server (Legitimate)

Provides DHCP leases

✅ Trusted

GE0/0/3

Web Server

Not involved in DHCP

❌ Untrusted

GE0/0/4

Bogus (Rogue) DHCP Server

Malicious DHCP Server

❌ Untrusted & Blocked

GE0/0/2 is connected to the legitimate DHCP server, meaning it should be marked as a TRUSTED interface.

GE0/0/4 connects to a bogus DHCP server, which must be UNTRUSTED to block unauthorized DHCP responses.

GE0/0/1 (Client) and GE0/0/3 (Web Server) do not need to be trusted.

✅ Thus, the correct answer is: D. GE0/0/2.

Final Conclusion:

✅ GE0/0/2 should be configured as the trusted DHCP interface.❌ GE0/0/1 (Client) should remain untrusted.❌ GE0/0/3 (Web Server) does not need DHCP trust.❌ GE0/0/4 (Bogus DHCP Server) should be blocked.

Thus, the correct answer is: D. GE0/0/2.

Comprehensive and Detailed In-Depth Explanation:

Step 1: Understanding OSPF Areas and Summarization

Loopback0 on R5 has IP 10.0.5.5/32 and is advertised into OSPF.

The abr-summary 10.0.5.0 255.255.255.0 command is applied in area 2 on R1, which means:

Instead of advertising individual host routes (like 10.0.5.5/32), R1 advertises the summarized route 10.0.5.0/24 into Area 0 (Backbone).

This summarized route is then propagated into other areas via Area 0 (Backbone).

Step 2: Analyzing the Routing Table of Each Router

R5 (Originating Router in Area 2)

R5 only knows 10.0.5.5/32 because it's the originating router.

The abr-summary command does not affect R5 itself.

❌ R5 does not have 10.0.5.0/24.

R1 (ABR for Area 2, Summarizing the Route)

R1 creates and advertises 10.0.5.0/24 into Area 0.

This summary route is sent to other areas via Area 0.

R2 (Connected to Area 0 & Area 1)

Since R2 is part of Area 0 (Backbone), it receives 10.0.5.0/24 from R1.

✅ R2 has 10.0.5.0/24 in its routing table.

R3 (Connected to Area 0 & Area 2)

Since R3 is also connected to Area 0, it receives the summary route 10.0.5.0/24 from R1.

✅ R3 has 10.0.5.0/24 in its routing table.

R4 (In Area 1, which is not directly connected to Area 2)

R4 belongs to Area 1, and unless explicitly advertised through inter-area summarization, it will not have 10.0.5.0/24.

Since no specific mention of summary advertisement into Area 1 is made, R4 does not get 10.0.5.0/24.

❌ R4 does not have 10.0.5.0/24.

Final Answer: ✅ R2, R3 (Option B, C)

References:

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 – OSPF Route Summarization

OSPF Inter-Area Route Advertisement via ABRs

OSPF Backbone (Area 0) Behavior and Route Distribution
