Multiple Spanning Tree is the correct technology for a large Layer 2 domain with hundreds of switches and VLANs when the goals are efficient link use, loop prevention, and low CPU and memory impact. MST maps multiple VLANs into a smaller number of spanning-tree instances, allowing the designer to load-balance groups of VLANs across alternate paths without running a separate STP instance for every VLAN. Cisco Rapid PVST+ improves convergence compared with classic STP, but it maintains a separate instance per VLAN, which becomes costly at scale. PVST+ has similar per-VLAN scaling concerns and slower convergence behavior than rapid variants. Plain RSTP improves convergence but does not provide the same VLAN-to-instance mapping flexibility for hundreds of VLANs. MST is standards-based and particularly useful in multivendor environments where VLAN grouping and predictable root placement are required. The design should define MST regions consistently, map VLANs deliberately to instances, place roots near the Layer 3 gateway, and keep the number of instances small enough to protect supervisor CPU and memory. Reference topics: MST, RSTP, Rapid PVST+, VLAN-to-instance mapping, Layer 2 scalability.

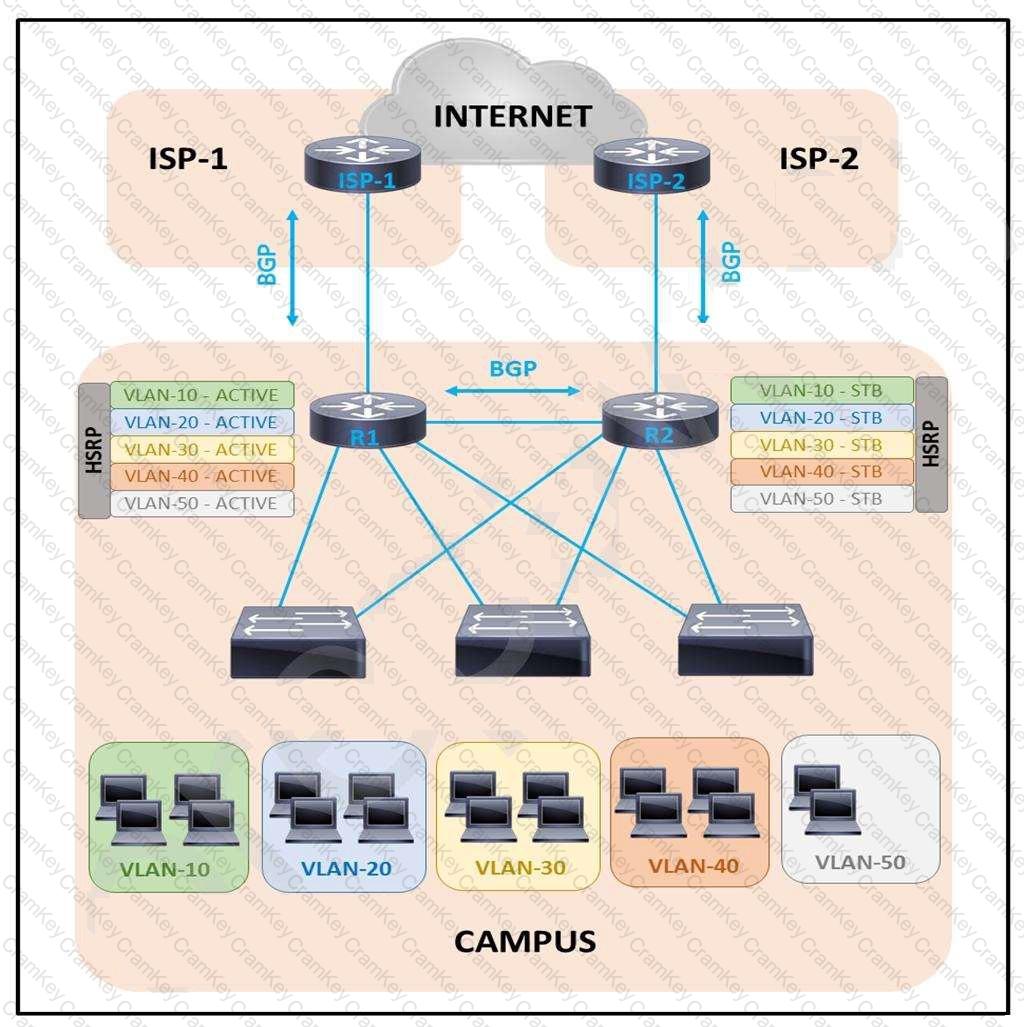

Making R2 active for half of the VLANs improves utilization by distributing first-hop gateway forwarding across both core routers. HSRP provides default-gateway redundancy by making one router active and another standby for a VLAN. If the same router is active for every VLAN, traffic from all downstream VLANs is forwarded through the same core path, which can leave some interfaces congested while parallel links on the standby side remain underused. Cisco campus designs commonly tune HSRP priorities per VLAN and align the active HSRP gateway with the spanning-tree root for that VLAN. This creates a deterministic load-sharing model while preserving gateway redundancy. Adding more interfaces may help capacity, but the question states that some downstream interfaces are already underutilized, so the issue is load distribution rather than absolute port count. A port channel is useful only when the topology supports bundling the specific links and does not by itself move gateway activity. RSTP improves convergence, not HSRP forwarding balance. Reference topics: HSRP load sharing, per-VLAN gateway placement, STP root alignment, campus capacity design.

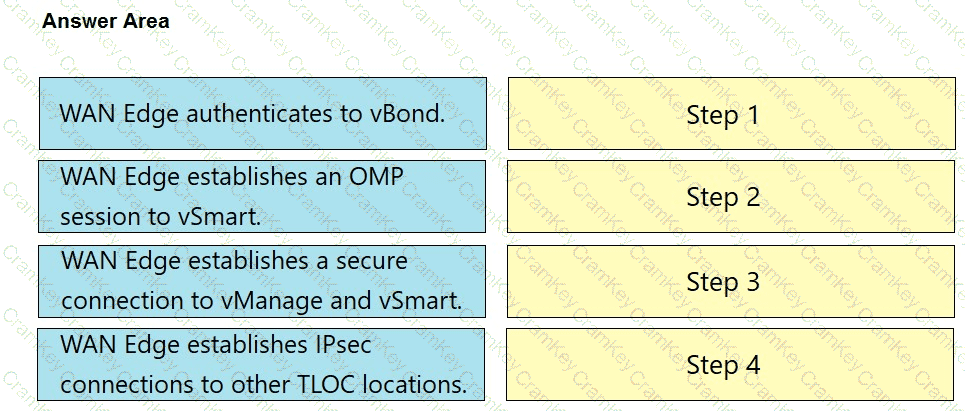

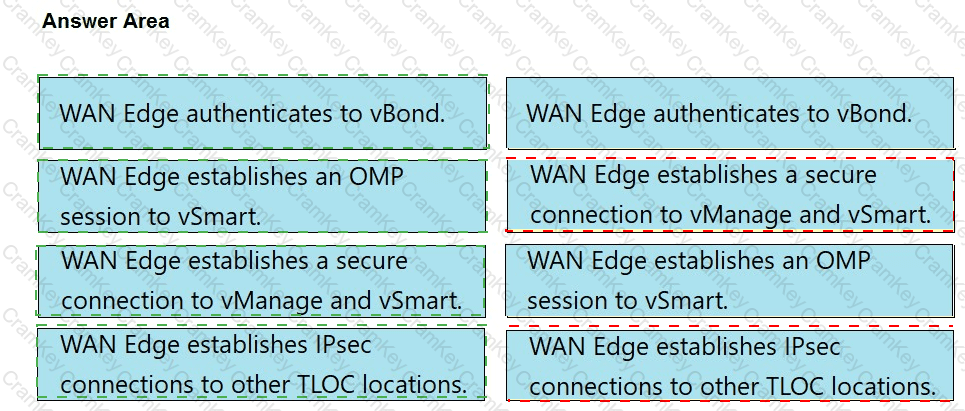

The SD-WAN onboarding sequence follows the controller trust and overlay-establishment workflow. A WAN Edge device first obtains basic reachability information through manual bootstrap, ZTP, or PnP-style provisioning so it can reach the orchestration components. It then establishes secure control connectivity to the orchestrator and validates identity through the certificate and authorized serial number information. After orchestration, the device forms the required secure control connections to the management and control-plane components, receives its configuration, and participates in OMP route exchange. Finally, the WAN Edge builds encrypted data-plane tunnels to other WAN Edge devices based on the TLOC and policy information learned through the control plane. This order matters because the device cannot exchange overlay routes or build data-plane IPsec tunnels until it is authenticated and authorized in the SD-WAN fabric. Cisco SD-WAN designs rely on this sequence to support zero-touch deployment, centralized policy, and secure fabric admission. Reference topics: Cisco SD-WAN onboarding, vBond orchestration, certificate validation, OMP, TLOC exchange, data-plane tunnel establishment.

The branch router should advertise the local LAN with the EIGRP network command and make the LAN-facing interface passive. A passive interface allows the connected network to be included in EIGRP advertisements while suppressing EIGRP hello packets and neighbor formation on that interface. This is exactly what the engineer needs: remote EIGRP neighbors learn the LAN subnet, but unnecessary multicast EIGRP messages are not sent onto the user LAN where no EIGRP neighbors should exist. Replacing EIGRP with a static default route would not meet the requirement to advertise the local LAN through EIGRP. Redistributing connected routes can work, but it is less clean for a simple LAN interface and can introduce external-route behavior or policy complexity. Advertising the subnet as a stub network does not suppress multicast hellos on the LAN interface by itself. Cisco design best practice is to use passive interfaces on LAN-facing interfaces that should be advertised but should not form routing adjacencies. Reference topics: EIGRP passive interface, network statements, branch routing, unnecessary neighbor prevention, multicast control traffic.
