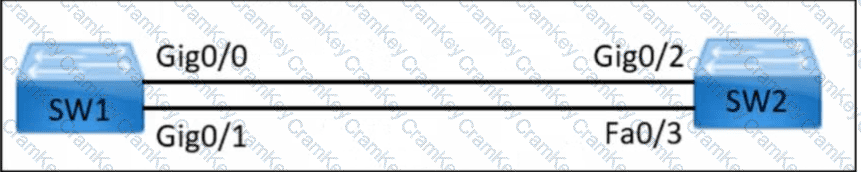

The selected command pair is appropriate because the issue is that GigabitEthernet0/2 on SW2 is not becoming the root port as expected. In spanning-tree design, the root port is selected based on the lowest root path cost, then upstream bridge ID, then port ID when necessary. If the wrong port is selected, the engineer must adjust the local spanning-tree parameters on SW2 so that the intended interface has the best path toward the root bridge. Typical corrective commands lower the spanning-tree cost or set the port priority on the desired interface or VLAN instance. The correct answer pair is therefore the combination that changes the STP decision variables for Gig0/2 rather than changing unrelated features such as PortFast, BPDU Guard, or VLAN trunking. PortFast is unsafe on switch-to-switch links, and protection features do not make an interface more attractive as a root port. The fix must influence STP path selection while keeping the topology loop-free. Reference topics: STP root port election, path cost, port priority, root bridge path selection, Catalyst Layer 2 troubleshooting.

AES Galois/Counter Mode is the appropriate AES mode for Cisco SD-WAN environments that include multicast applications. In SD-WAN data-plane security, encryption must protect traffic efficiently while supporting high-throughput forwarding and modern integrity protection. AES-GCM is an authenticated encryption mode, which means it provides confidentiality and integrity in a single efficient operation. It is well suited to modern IPsec designs and avoids the older requirement to combine a confidentiality mode with a separate authentication algorithm. Cipher Block Chaining and Cipher Feedback are older modes and are not preferred for this design requirement. Electronic Code Book is unsuitable because it exposes patterns in plaintext and is not considered secure for network transport encryption. Multicast support also requires a data-plane security model that can scale without per-flow negotiation overhead. AES-GCM is therefore the correct selection for a secure, efficient Cisco SD-WAN deployment that must carry multicast traffic. Reference topics: Cisco SD-WAN encryption, AES-GCM, IPsec data-plane security, multicast transport, authenticated encryption.

An MPLS WAN from two separate ISPs is the strongest fit when the enterprise requires an active/backup WAN design with guaranteed SLAs for applications on either connection. MPLS VPN services are typically delivered with provider-backed service-level commitments for latency, jitter, packet loss, and availability, which is why they are selected for predictable enterprise application transport. Using two separate MPLS providers improves resiliency against a provider failure while preserving SLA-backed behavior on the backup path. A hybrid MPLS and Internet VPN model can be cost effective, but the Internet path generally does not provide the same deterministic SLA unless enhanced by a specific managed service contract. Internet from two providers improves reachability diversity but does not inherently guarantee application SLA. A single ISP hybrid design creates a provider dependency and weakens availability. Therefore, dual-provider MPLS is the conservative design for guaranteed active/backup WAN service. Reference topics: MPLS WAN design, service-level agreements, active/backup WAN, provider diversity, application performance assurance.

The main purpose of the Cisco SD-Access overlay design is to enable the virtualized fabric services that run over the physical underlay. Cisco describes the overlay as the logical network created on top of the routed underlay, using virtual networks to provide segmentation and policy separation. SD-Access uses LISP for endpoint-to-location mapping and VXLAN for data-plane encapsulation, allowing Layer 2 and Layer 3 services to be delivered across a stable Layer 3 transport. Option C is the best available answer because the overlay exists to integrate and carry SD-Access services such as virtual networks, endpoint mobility, macrosegmentation, and security group policy. Simplified troubleshooting and visibility are management and assurance outcomes, not the overlay’s main technical purpose. High availability depends on the underlay topology, node redundancy, and control-plane design, but it is not the primary definition of overlay design. Reference topics: SD-Access overlay, virtual networks, LISP, VXLAN, segmentation, fabric services.
