The Cisco SD-Access control-plane node provides the host tracking database and map-server function. SD-Access uses LISP-based control-plane behavior to separate endpoint identity from endpoint location. Fabric edge nodes register endpoints with the control-plane node, and the control-plane node maintains the endpoint-to-location database. When a fabric node needs to forward traffic to an endpoint, it queries the control-plane node so the destination endpoint can be resolved to the correct fabric location. In LISP terminology, this maps to the map-server and map-resolver role, while the SD-Access design discussion often refers to the endpoint database or host tracking database. The control-plane node does not enforce policy mapping by itself; policy is integrated with Cisco ISE and applied through scalable group policy in the fabric. It also does not function as a proxy ETR in this option set. Endpoint registration is initiated by the edge nodes, which detect local endpoints and inform the control plane. Therefore, host tracking database and map server are the correct functions. Reference topics: SD-Access control plane, LISP map server, host tracking database, EID-to-RLOC mapping.

An OSPF sham link is the correct MPLS VPN design when backdoor links exist between customer sites and should be used only if the MPLS core is unavailable. In MPLS Layer 3 VPN designs that run OSPF between CE and PE routers, the MPLS VPN path can appear as an interarea route, while a direct dark-fiber backdoor link may appear as an intra-area route. OSPF prefers intra-area routes over interarea routes, so traffic could incorrectly prefer the dark-fiber path during normal operation. Cisco sham links solve this by creating an intra-area logical link across the MPLS VPN backbone between PE routers, making the MPLS path competitive or preferred according to OSPF cost. A virtual link connects disconnected OSPF area 0 sections and is not the right MPLS VPN tool. Stub and NSSA area types control external LSA behavior, not MPLS-backdoor path preference. The sham link preserves the desired routing hierarchy while keeping the direct dark fiber as backup. Reference topics: OSPF sham link, MPLS L3VPN, PE-CE routing, backdoor links, route preference.

End-to-end microsegmentation in Cisco SD-Access is enforced with Security Group Tags and Security Group ACLs. Virtual networks provide macrosegmentation by separating routing tables and address spaces, but SGTs provide more granular group-based policy inside or across those virtual networks. Cisco SD-Access segmentation guidance explains that users or endpoints are assigned to security groups through SGTs and that SGACLs control communication between those groups. This avoids building large numbers of VLANs or IP ACLs tied to topology. VLANs alone provide Layer 2 separation but do not deliver identity-based end-to-end microsegmentation. Five-tuple ACLs can filter traffic, but they are more operationally complex and less policy-oriented than group-based access control. VRFs are useful for macrosegmentation, not microsegmentation within a virtual network. Therefore, SGTs and SGACLs are the correct enforcement method. In a professional design, the architect should define scalable groups according to business roles and application access needs, then use Cisco DNA Center and ISE integration to automate consistent policy deployment across the fabric.

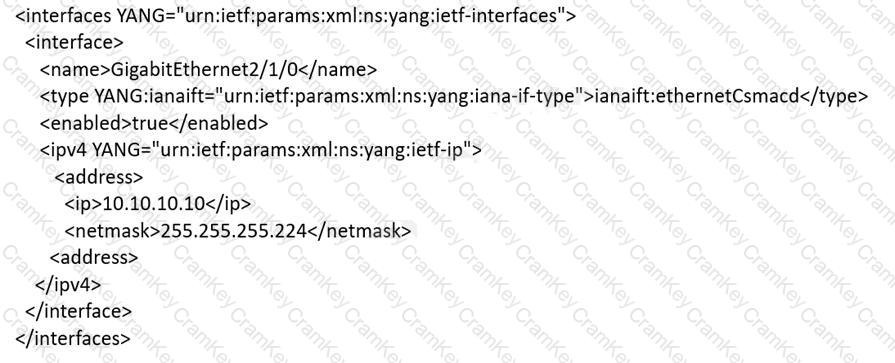

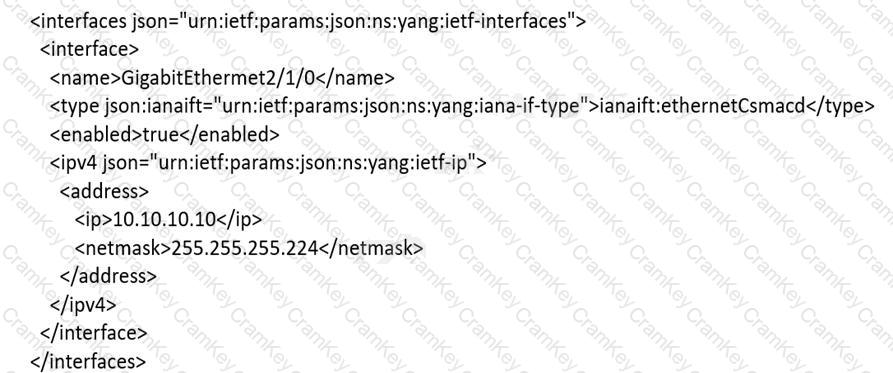

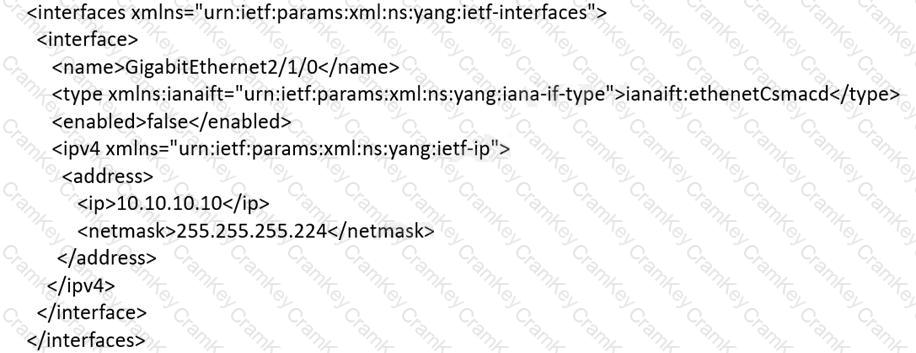

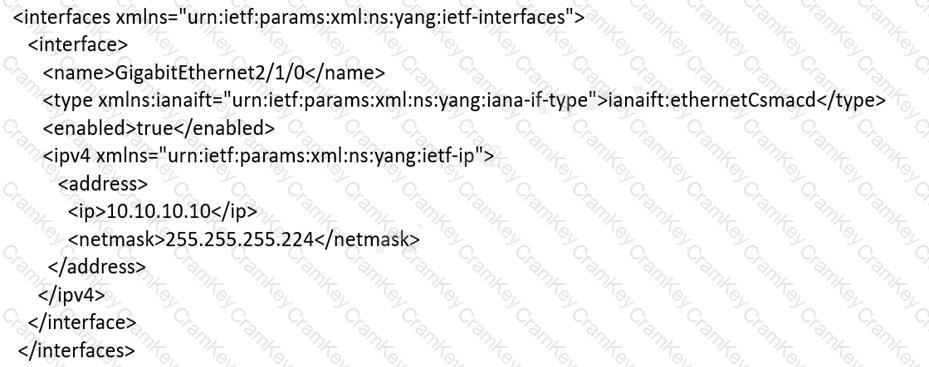

The correct XML/YANG data model set is the option that accurately represents the IOS XE interface hierarchy, assigns the IPv4 address to GigabitEthernet2/1/0, and uses the correct prefix length of 27. In model-driven programmability, the payload must match both the selected YANG model schema and the target platform’s interface naming conventions. For IOS XE native models, interface configuration is structured under the Cisco native namespace, with interface type and name represented in the schema before IPv4 address elements are applied. The address 10.10.10.10/27 must also support a directly connected host at 10.10.10.1/27, which places both addresses in the same 10.10.10.0/27 subnet. Options that place the address under the wrong interface type, use the wrong namespace, incorrectly represent the mask, or configure the host route rather than the interface are invalid. Option D is the only answer aligned to the IOS XE YANG structure and the requested addressing. Reference topics: IOS XE native YANG, NETCONF XML payloads, interface configuration, IPv4 prefix length, model-driven programmability.
