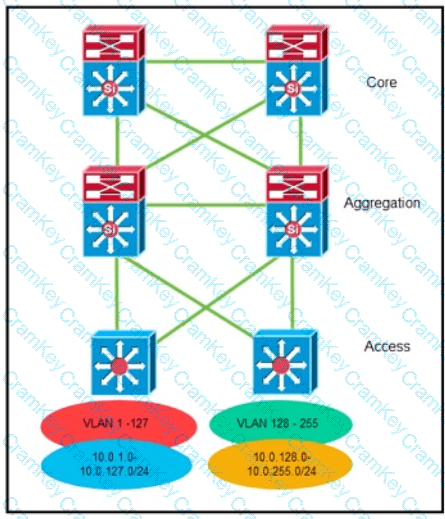

The best summarization design is for the aggregation layer to advertise a default route toward the access layer and to summarize the VLAN subnets toward the core. Cisco hierarchical campus design uses summarization at natural layer boundaries so that access-layer instability is hidden from the rest of the network. If individual access VLANs flap, the core should not have to process every specific route change. Advertising a summary such as 10.0.0.0/16 from the aggregation layer toward the core reduces routing-table size, lowers CPU and memory use, and confines convergence events to the lower layer. At the same time, the access layer normally does not need full knowledge of the enterprise routing table; a default route from the aggregation layer is sufficient for northbound reachability. Summarizing at the access layer is normally less effective because the aggregation layer is the first stable boundary that sees multiple access networks. Advertising a default from the core toward aggregation would hide information in the wrong direction. Reference topics: hierarchical routing, route summarization, campus aggregation design, convergence containment, routing-table scaling.

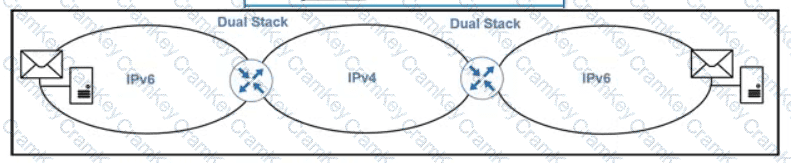

The IPv4-compatible method is the closest match when the exhibit requires IPv6 connectivity between servers across an IPv4 portion of the network without using 6to4, 6rd, or ISATAP. IPv4-compatible IPv6 addressing represents an IPv4 address inside an IPv6 address format and was historically used for automatic IPv6-over-IPv4 tunneling between dual-stack nodes. Although this technique is now considered legacy and is not preferred for new designs, it matches the answer choice that directly embeds IPv4 reachability for host-to-host connectivity. ISATAP is normally used inside an enterprise IPv4 network to connect IPv6 hosts over an IPv4 intranet. 6to4 and 6rd are provider or site transition mechanisms that use specific IPv6 prefix behavior and are not simply a direct method between the depicted mail servers. For modern Cisco design, dual-stack or manually engineered tunnels would normally be preferred, but given these choices, IPv4-compatible addressing is the method aligned to the exhibit requirement. Reference topics: IPv6 transition mechanisms, IPv4-compatible addressing, tunneling, dual-stack migration, host connectivity.

Dual stack is the correct IPv4 and IPv6 deployment strategy when the customer wants a straightforward design with no information hiding and no tunnel forwarding overhead. In a dual-stack deployment, routers, switches, servers, and clients run IPv4 and IPv6 simultaneously. Applications can select IPv4 or IPv6, typically based on DNS response and protocol availability, while the network forwards each protocol natively. This avoids the translation behavior of NAT64, where address information is hidden or converted between protocols. It also avoids GRE or other tunneling mechanisms, which add encapsulation overhead and operational complexity. LISP can provide location/identity separation and mobility, but it is not the simplest migration approach for native IPv4 and IPv6 coexistence. Dual stack is often the cleanest transition model when the infrastructure supports both protocols, because it permits gradual application migration without forcing all services through translators or tunnels. Reference topics: IPv6 migration, dual-stack deployment, NAT64, tunneling overhead, native IPv4 and IPv6 forwarding.

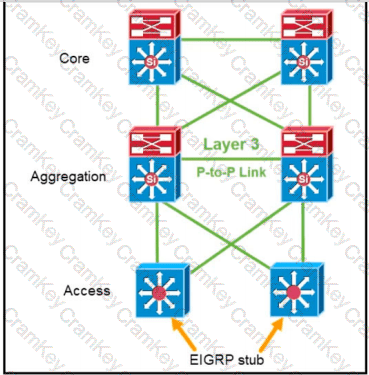

Route summarization should be planned from the aggregation layer toward both the core and the access layer. In hierarchical campus routing, aggregation or distribution devices are natural summarization boundaries because they sit between more specific access-layer networks and the core. Summarizing from aggregation toward the core prevents access-layer subnet churn from forcing unnecessary recomputation and route table growth in the core. Summarizing from aggregation toward access can also provide a concise upstream route, often a default or summary route, so access devices do not need the entire network routing table. The goal is to contain failures, reduce routing state, and preserve fast convergence at hierarchy boundaries. Summarizing from the core toward aggregation may hide useful topology details in the wrong direction, while summarizing directly from access toward aggregation is not always possible or efficient when access devices are numerous and have limited resources. The answer that places summarization at aggregation in both directions best matches Cisco hierarchical design principles. Reference topics: hierarchical campus design, route summarization, aggregation layer, core route scale, convergence containment.
