Cisco Updated 300-420 Exam Questions and Answers by ashton

Before troubleshooting IPsec in a DMVPN deployment, the administrator should verify the GRE tunnel operation. DMVPN is built from multipoint GRE, NHRP, routing, and usually IPsec encryption. IPsec protects the tunnel traffic, but the logical tunnel and overlay reachability must be valid first. If the tunnel interface is down, incorrectly addressed, or unable to carry GRE traffic, troubleshooting crypto maps or ISAKMP will waste time because encryption cannot fix a broken overlay. After the GRE tunnel state is validated, the administrator can confirm NHRP registration and resolution, routing adjacencies, and then IPsec security associations. ISAKMP and crypto map troubleshooting are relevant only after basic tunnel operation is known to be correct. NHRP is also critical in DMVPN, but the question asks what to do before troubleshooting IPsec configuration; the first prerequisite is to verify that the GRE tunnel itself is functioning. This layered troubleshooting order follows Cisco operational practice: confirm transport reachability, then tunnel interface behavior, then NHRP and routing, and finally cryptographic protection.

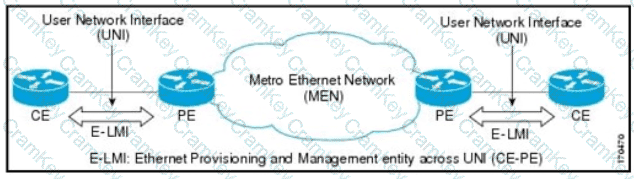

Ethernet Local Management Interface is used between the customer edge and provider edge to communicate service status information for Ethernet services. Under MEF Ethernet service operations, E-LMI provides the CE with information about Ethernet Virtual Connection status, including whether a configured EVC is available or unavailable. This allows the customer device to react to a provider-side service condition without relying only on physical link state. The CE-to-PE link can remain physically up even while the provider EVC is down; E-LMI closes that operational visibility gap by reporting the EVC state to the customer edge. It is not a routing protocol and does not broadcast multicast routes from the CE to the PE. It also does not broadcast to all subnets when an EVC is added. The key function defined by the MEF process is notifying the CE of EVC availability state and related service information. Reference topics: Metro Ethernet, E-LMI, Ethernet Virtual Connection, CE-to-PE signaling, MEF service operations.

Intermittent DMVPN tunnel flaps are commonly caused by reachability problems between routing neighbors or between the tunnel endpoints that support those neighbors. DMVPN depends on several layers working correctly: the underlay transport, GRE tunnel interface, NHRP registration and resolution, IPsec protection if used, and the routing protocol running across the tunnel. If the routing neighbor cannot remain reachable, the tunnel may appear to flap even though the encryption profile itself is not the root cause. A suboptimal routing table can produce poor forwarding or asymmetric traffic, but it is not the most common direct cause of repeated tunnel up/down events. Bandwidth congestion can degrade performance, but a correctly designed tunnel does not flap merely because utilization is high unless keepalives, NHRP, or routing packets are being lost. The fact that a GRE tunnel is not encrypted is a security design problem, not a tunnel-flap cause. The right troubleshooting posture is to verify stable underlay reachability, tunnel interface state, NHRP mappings, and routing adjacency stability before assuming an IPsec encryption failure.

A migration from traditional IP-VPN service to Cisco SD-WAN commonly increases security and scalability. Cisco SD-WAN builds encrypted data-plane tunnels across supported transports, so the enterprise can use Internet, MPLS, or hybrid connectivity while maintaining secure site-to-site communication. The architecture also scales better operationally because policy, templates, onboarding, and routing control are centralized through the SD-WAN controllers and management plane. Increased solution complexity is not a desired characteristic; one of the design goals is to simplify operations through automation and centralized policy. Centralized application policies are also a major SD-WAN benefit, but when only two choices are selected, the stored answer emphasizes the two broad migration outcomes of security and scale. Distributed control plane is not correct because Cisco SD-WAN uses centralized control-plane logic with vSmart controllers distributing OMP routes and policies. A professional migration plan should validate transport diversity, controller redundancy, encryption policy, application-aware routing, and operational readiness. Reference topics: Cisco SD-WAN migration, encrypted overlay, scalability, centralized control plane, IP-VPN replacement.
