Comprehensive Detailed Explanation:

VLAN 1 is often configured as the native VLAN on interfaces to support Zero Touch Provisioning (ZTP). During ZTP, devices communicate over VLAN 1 by default to download their configuration and updates.

LLDP and UBT are unrelated to native VLAN configuration for provisioning.

MSTP relates to spanning tree but does not dictate native VLAN usage.

Thus, VLAN 1 as native VLAN facilitates ZTP processes.

To resolve vMotion connectivity issues on an Aruba AOS-CX 8320, we must ensure the network infrastructure supports Jumbo Frames end-to-end.

MTU and vMotion Requirements: VMware vMotion is highly sensitive to the Maximum Transmission Unit (MTU). For optimal performance and reliability, a 9000-byte MTU is standard. If any switch port in the path is left at the default 1500-byte MTU, vMotion operations will typically time out or fail, even if standard small-packet traffic (like a basic ping) works.

AOS-CX Configuration Syntax: In the AOS-CX operating system, Jumbo frame support is enabled by modifying the MTU at the interface level.

The standard command is mtu 9198.

The value 9198 is used because it accounts for the 9000-byte payload plus L2 headers and tagging overhead.

Unlike the older AOS-S (ProCurve) software, AOS-CX does not use the jumbo command; it uses the mtu command under the physical interface context.

Analyzing the Exhibits:

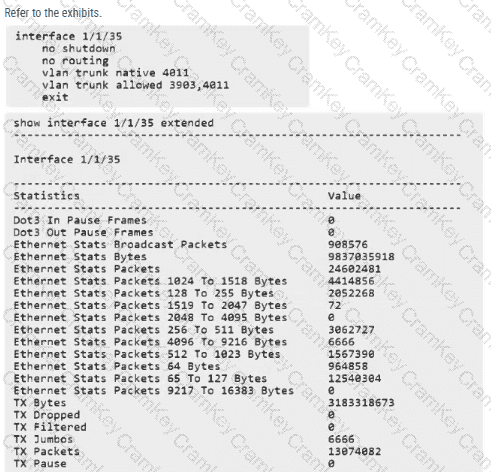

The Configuration: The exhibit for interface 1/1/35 shows a standard trunk configuration but no MTU command. This confirms the port is operating at the default 1500-byte limit.

The Statistics: The show interface extended output shows TX Jumbos: 6666. This indicates that jumbo packets have been sent, but in a troubleshooting context, this may represent previous stats or the switch counting oversized frames before dropping them or failing to receive them from the server.

Why Option B is the Correct Fix: Even if " large " pings (e.g., 2000 bytes) work due to fragmentation or " baby giant " tolerances, the specific high-throughput requirements of vMotion necessitate that the physical transport layer (interface 1/1/35) be explicitly configured to handle the full 9000-byte frame size using the mtu 9198 command.

Addressing the SVI (Option A): While an SVI (interface vlan 3903) also has an MTU, the physical port is the primary gatekeeper for Layer 2 traffic. If the physical port is set to 1500, no jumbo frame will ever reach the SVI or be switched to another port on that VLAN.

When User-Based Tunneling (UBT) is configured and HTTPS-enabled websites fail to load, this often relates to issues with packet fragmentation. The solution is to enable IP fragmentation on the devices to allow large tunneled packets to be properly fragmented and reassembled.

Path MTU discovery is helpful but may be blocked in some networks.

Fragment reassembly is usually on the receiving end.

Jumbo frames may not resolve fragmentation across tunneled paths.

Therefore, enabling IP fragmentation is the most effective solution.

Quality of Service (QoS) on AOS-CX switches relies on hardware queues to manage congestion. Different traffic types require different handling logic.

Strict Priority (SP) Queuing: In an SP model, the switch services the highest-numbered queue (usually Queue 7 for Voice) until it is completely empty before it even considers sending a single packet from a lower-priority queue. This ensures that latency-sensitive traffic like Voice (VoIP) is never delayed by data bursts, providing the " highest priority " forwarding required by the prompt.

Weighted Fair Queuing (WFQ/DWRR): These methods (like Deficit Weighted Round Robin) assign a percentage of the bandwidth to each queue. While this prevents " queue starvation " for data traffic, it doesn ' t guarantee that voice will always go first; it just guarantees voice gets its " fair share. "

FIFO: This is the default " no-QoS " behavior where the first packet to arrive is the first to leave, regardless of its importance.

Virtual Output Queuing (VOQ): This is an internal architectural design of the switch fabric (often found in the 8000 series) used to prevent Head-of-Line (HOL) blocking across the switch backplane. It is not a configurable end-user queuing strategy for traffic prioritization.
