For a 1 Gbps link between two Aruba CX switches, the appropriate SFP port type is an SFP (Small Form-factor Pluggable). SFP+ and SFP28 are used for higher speeds such as 10 Gbps and 25 Gbps, respectively. QSFP+ is for even higher speeds (40 Gbps).

SFP supports 1 Gbps (1000BASE-X)

SFP+ supports 10 Gbps

SFP28 supports 25 Gbps and above

QSFP+ supports 40 Gbps and above

Therefore, the correct port type for a 1 Gbps link is SFP.

Bidirectional Forwarding Detection (BFD) is used in conjunction with OSPF to provide sub-second failure detection. However, running standard BFD (Control Mode) for many neighbors can place a significant load on the switch ' s Control Plane CPU , as the CPU must process every BFD control packet.

Control Mode vs. Echo Mode:

Control Mode: Both peers exchange BFD packets that are processed by their respective CPUs. This ensures the BFD state machine is synchronized but is CPU-intensive.

Echo Mode: The switch sends a BFD Echo packet to its neighbor. The neighbor simply " reflects " the packet back in the data plane (ASIC) without sending it to its own CPU. The originating switch then processes the returned packet.

Efficiency of Echo Mode: In the Aruba AOS-CX architecture, BFD Echo Mode is highly efficient because it offloads the " heartbeat " processing from the CPU to the hardware (ASIC) on supported platforms. By enabling echo mode, the frequency of control packets reaching the CPU is reduced, which effectively resolves high CPU utilization issues while maintaining fast failover.

Evaluating Other Options:

Option A: ICMP is not part of the BFD mechanism for OSPF adjacency tracking.

Option B: OSPF does not form adjacencies on passive interfaces, so BFD would not run there and would not contribute to CPU usage.

Option D: ICMP redirects are unrelated to the BFD protocol ' s internal processing logic.

Quality of Service (QoS) on AOS-CX switches relies on hardware queues to manage congestion. Different traffic types require different handling logic.

Strict Priority (SP) Queuing: In an SP model, the switch services the highest-numbered queue (usually Queue 7 for Voice) until it is completely empty before it even considers sending a single packet from a lower-priority queue. This ensures that latency-sensitive traffic like Voice (VoIP) is never delayed by data bursts, providing the " highest priority " forwarding required by the prompt.

Weighted Fair Queuing (WFQ/DWRR): These methods (like Deficit Weighted Round Robin) assign a percentage of the bandwidth to each queue. While this prevents " queue starvation " for data traffic, it doesn ' t guarantee that voice will always go first; it just guarantees voice gets its " fair share. "

FIFO: This is the default " no-QoS " behavior where the first packet to arrive is the first to leave, regardless of its importance.

Virtual Output Queuing (VOQ): This is an internal architectural design of the switch fabric (often found in the 8000 series) used to prevent Head-of-Line (HOL) blocking across the switch backplane. It is not a configurable end-user queuing strategy for traffic prioritization.

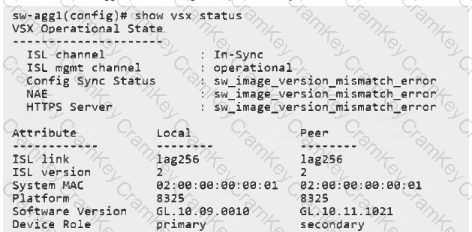

This exhibit highlights a critical operational requirement for Virtual Switching Extension (VSX) : Version Consistency .

Analyzing the Exhibit: * The Local Software Version is GL.10.09.0010.

The Peer (sw-agg2) Software Version is GL.10.11.1021.

The Config Sync Status explicitly reports: sw_image_version_mismatch_error.

The Impact of Software Mismatch: The VSX configuration synchronization engine ( vsx-sync ) requires that both the primary and secondary switches run the exact same version of AOS-CX. When a mismatch is detected, the synchronization of configuration (VLANs, LAGs, etc.) is immediately halted to prevent database corruption or unpredictable behavior.

Incompatible State: While the data plane (traffic forwarding) typically continues to function using the last known good configuration, the control plane " cluster " is effectively in an incompatible mode for management. You cannot make configuration changes on the Primary and expect them to push to the Secondary until the versions are aligned.

Evaluating Other Options:

Option A: Incorrect. The mismatch_error halts all config sync, regardless of whether the specific command exists in both versions.

Option C: A " Live Upgrade " (VSX Orchestration) requires both switches to have access to the same target image and for the sync engine to be healthy. You cannot live upgrade when the sync engine is already in an error state.

Option D: VSX is a distributed forwarding architecture. It does not " forward all traffic " to the primary. Traffic is balanced across MC-LAG links unless a physical failure occurs.
