To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

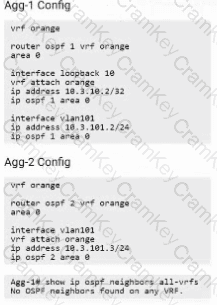

The question concerns an OSPF configuration where the interface does not come up as expected.

Common reasons for no OSPF adjacency or interface participation include:

Interfaces being passive (no adjacency formed)

Mismatched OSPF process IDs

Missing loopback interfaces (for router ID)

Layer-3 interfaces not associated with VRFs when VRFs are configured

Option D (a Layer-3 interface has not been associated with a VRF) is the root cause because in Aruba CX switches, when VRF is configured, all Layer-3 interfaces that participate in OSPF must be associated with the correct VRF instance to establish adjacency and participate correctly.

If an interface is not part of the VRF configured for OSPF, it will not appear in the OSPF interface list or form neighbors.

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot , a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

In AOS-CX QoS architecture, the switch uses a scheduler to determine which hardware queues receive service. A common best practice is to use a Hybrid Queuing Model .

Strict Priority (SP) and Starvation: By default, if a queue is set to Strict Priority (usually Queue 7 for voice), the switch will service that queue exclusively as long as it has data. If the high-priority traffic is sustained (due to a burst or a misconfiguration/attack), the lower-priority queues (Queues 0–5) will never be serviced. This is known as starvation .

The Role of Shaping: To prevent an SP queue from monopolizing the entire link bandwidth, you can apply a shaper to that specific high-priority queue. A shaper sets a maximum bandwidth limit (in kbps or as a percentage) that the queue is allowed to consume.

Mechanism: By shaping Queue 7, even if it has a constant stream of traffic, it will be " throttled " once it hits the shaper limit. This forced " quiet time " allows the scheduler to move down and service the lower-priority queues using DWRR (Deficit Weighted Round Robin) logic, ensuring that data traffic (like web or email) is not completely dropped.

Evaluating Other Options:

Option A: You can only apply one queuing profile per interface in AOS-CX.

Option B: Replacing SP with DWRR entirely would solve starvation, but it would remove the low-latency guarantee required for Voice traffic.

Option D: " Weight " applies only to DWRR/WFQ queues. SP queues do not have a weight because they are always " first in line " by definition.
