HP Updated HPE7-A08 Exam Questions and Answers by fleur

Comprehensive Detailed Explanation:

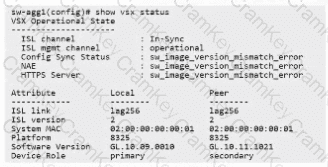

For live upgrading a VSX cluster, the correct procedure is to use the vsx update-software option, which allows in-service software upgrade (ISSU) with minimal disruption by upgrading switches one at a time while maintaining synchronization.

issu update-software is not a recognized command in Aruba CX.

Reloading the primary first risks service disruption.

Compatibility mode is not required prior to reboot.

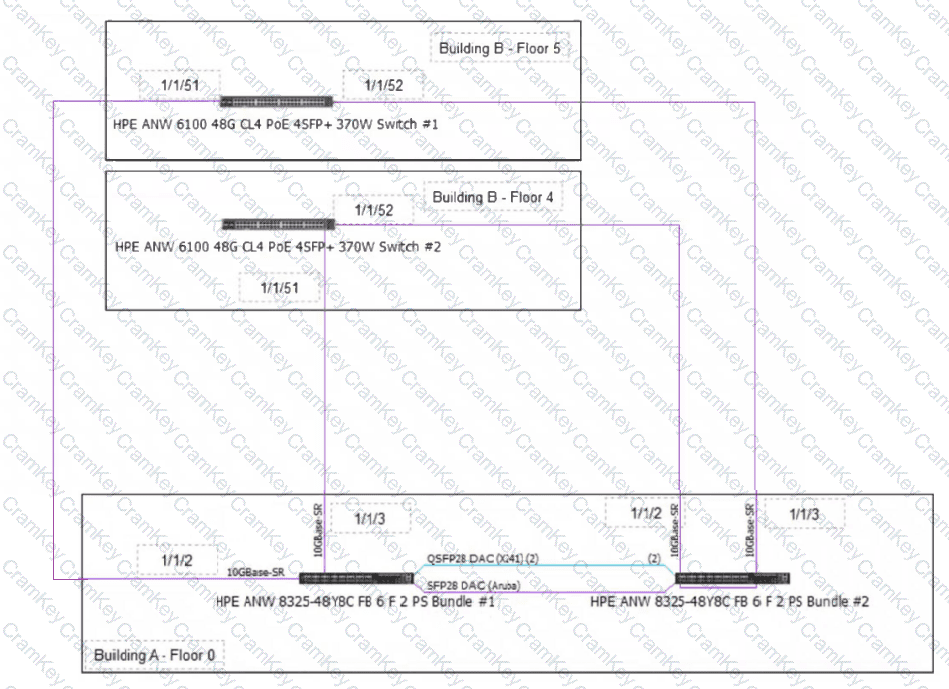

The installed fiber plant is OM4 multimode fiber , and the required building-to-building distance is 350 meters . HPE Aruba Networking ' s current AOS-S/AOS-CX Transceiver Guide confirms that a compatible 10GBASE-SR transceiver operating over OM4 can support distances up to 400 meters . Therefore, the correct design modification is to use the appropriate 10G SR multimode transceiver qualified for the OM4 link , making option C the correct answer. Aruba Networks

The distinction between OM3 and OM4 is important. A conventional 10GBASE-SR connection over OM3 is typically limited to approximately 300 meters , which would not satisfy the 350-meter requirement. OM4 provides the higher modal bandwidth required for the extended 10G SR reach of approximately 400 meters .

Option B is not appropriate for the stated cabling because 10GBASE-LR is designed for single-mode fiber , normally supporting distances up to 10 km; changing to LR would also require changing the optical fiber infrastructure. Likewise, 25GBASE-SR does not solve the problem: standard 25G SR supports substantially shorter multimode distances, typically around 100 meters on OM4. A 25G LR optic similarly requires single-mode fiber. Aruba Networks

Study Guide References: AOS-S/AOS-CX Transceiver Guide; 10GBASE-SR; OM3/OM4 Multimode Fiber; Optical Reach; Campus Inter-Building Connectivity.

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

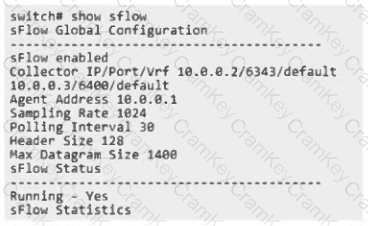

The displayed AOS-CX sFlow configuration contains two values that directly determine sampling and polling behavior: Sampling Rate 1024 and Polling Interval 30 .

The sampling rate of 1024 means that approximately one out of every 1024 packets is selected for flow sampling. HPE Aruba Networking defines the sFlow sampling rate specifically in terms of packets , not bytes. Therefore, option A represents the intended answer, although technically its wording should state “1 out of every 1024 packets is sampled” rather than “data bytes.” HPE documentation explicitly describes sflow sampling < RATE > as defining the sampling rate in number of packets; for example, a rate of 4096 means one out of every 4096 packets is sampled. Aruba Networks

The Polling Interval 30 means that sFlow interface counter information is collected and exported at 30-second intervals , making option C correct. HPE Aruba documents sflow polling < INTERVAL > as specifying the polling interval in seconds, with 30 seconds also being the standard default. Aruba Networks

The Header Size 128 determines how much of a sampled packet header is included, while Max Datagram Size 1400 controls the maximum sFlow datagram size; neither value represents the sampling ratio. Aruba Networks

Study Guide References: sFlow Agent; Sampling Rate; Polling Interval; Flow Samples; Counter Samples; sFlow Datagram and Header Size.
