In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100, falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

In VSX architecture, the Inter-Switch Link (ISL) is implemented as a Link Aggregation Group (LAG). To ensure proper forwarding and VLAN consistency, the ISL LAG must allow all configured VLANs. This allows VSX synchronization and data forwarding across all VLANs that span the two switches.

ISL traffic is not specifically tagged with EF QoS markings by default.

ISL traffic is not encapsulated in GRE tunnels.

The ISL LAG does not automatically include all VLANs; VLANs must be allowed on the LAG explicitly.

Hence, the LAG must be configured to allow all VLANs.

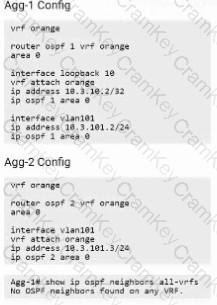

Bidirectional Forwarding Detection (BFD) is used in conjunction with OSPF to provide sub-second failure detection. However, running standard BFD (Control Mode) for many neighbors can place a significant load on the switch ' s Control Plane CPU, as the CPU must process every BFD control packet.

Control Mode vs. Echo Mode:

Control Mode: Both peers exchange BFD packets that are processed by their respective CPUs. This ensures the BFD state machine is synchronized but is CPU-intensive.

Echo Mode: The switch sends a BFD Echo packet to its neighbor. The neighbor simply " reflects " the packet back in the data plane (ASIC) without sending it to its own CPU. The originating switch then processes the returned packet.

Efficiency of Echo Mode: In the Aruba AOS-CX architecture, BFD Echo Mode is highly efficient because it offloads the " heartbeat " processing from the CPU to the hardware (ASIC) on supported platforms. By enabling echo mode, the frequency of control packets reaching the CPU is reduced, which effectively resolves high CPU utilization issues while maintaining fast failover.

Evaluating Other Options:

Option A: ICMP is not part of the BFD mechanism for OSPF adjacency tracking.

Option B: OSPF does not form adjacencies on passive interfaces, so BFD would not run there and would not contribute to CPU usage.

Option D: ICMP redirects are unrelated to the BFD protocol ' s internal processing logic.
