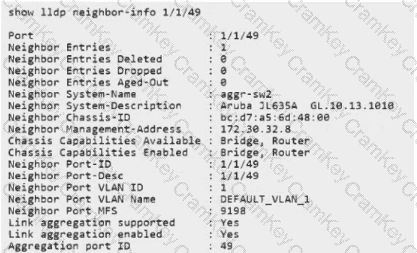

The Link Layer Discovery Protocol (LLDP) is used by Aruba switches to share identity and capability information with neighbors. By default, AOS-CX switches often advertise the IP address of the dedicated Out-of-Band (OOB) management port.

The Management-Address TLV: Neighbors use the " Management Address " Type-Length-Value (TLV) to know which IP they should use to manage the remote device (e.g., for SSH or Web UI access).

Changing the Source: In some designs, you want the switch to be managed through an " In-Band " VLAN interface rather than the physical management port.

AOS-CX Command Syntax: To specify which local interface ' s IP should be placed into the LLDP advertisement, AOS-CX uses the global command:

lldp management-ipv4-address vlan < VLAN-ID >

This tells the LLDP process: " Look at the IP assigned to SVI 5, and use that as our management identity in all LLDP frames sent out of all ports. "

Evaluating the Options:

Option D (Correct): Matches the specific AOS-CX syntax for selecting a VLAN-based management address.

Option B: This syntax is more common in the legacy AOS-S (ProCurve) software, whereas CX uses the management-ipv4-address keyword to distinguish between address families.

Option A: While intuitive, LLDP management address selection is a global process control in AOS-CX, not an interface-level trigger on the SVI itself.

Option C: While you can manually set the address using lldp management-address < IP > , there is no standalone lldp configuration context in the AOS-CX CLI.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

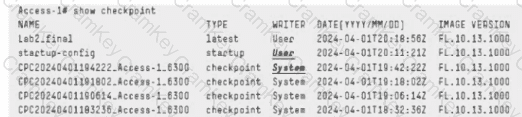

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

The event message:

perl

Copy

2024-04-04T08:35:38.312254+00:00 ICX-Core-1 hpe-vaxd[2167]: Event[701|LOG_INFO|AMM1/1|VSX2 state local up, remote down]

indicates that the local VSX member is up, but the remote VSX member is down. In a VSX pair, both switches must be operational for full redundancy and synchronization.

This log means the secondary VSX switch (remote) is down or unreachable, causing loss of synchronization and possibly traffic failover issues.

Option B (keepalive detection) is related but the event specifically shows the state of the remote switch being down.

Options C and D refer to LAG or interface state, which are not what this log entry describes.
