FortiTelemetry is a critical part of Security Fabric communications and requires explicit configuration for each participating FortiGate interface. The administrative access setting " fabric " (corresponding to FortiTelemetry) must be manually enabled per interface on both upstream and downstream devices. This is performed in the GUI under Administrative Access or via the CLI using the command set allowaccess fabric for the relevant network interface. Without this step, FortiTelemetry communications will not occur on that interface.

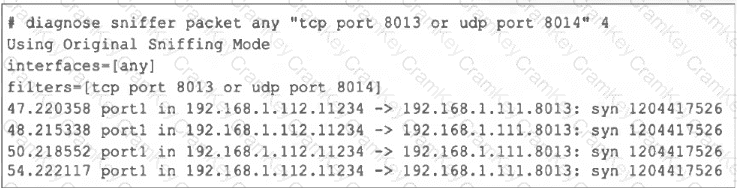

Additionally, the default communication between downstream and upstream FortiGate units in the Security Fabric is over TCP port 8013. This port is well-documented as the standard for Security Fabric and FortiTelemetry connections, and must be open and permitted across the network path for connectivity and status enforcement between units. The downstream FortiGate initiates the connection to the upstream via this port unless otherwise configured. This has also been documented as a PCI-relevant port, showing its default usage.

Other options:

Neighbor Discovery in FortiOS uses IPv6 ND protocol, not TCP.

FortiTelemetry port (8013) can be modified, but the interface Administrative Access for the Security Fabric must be manually enabled; Neighbor Discovery port modification is not documented as a supported change for FortiGate.

The correct answer is C. The session is offloaded using NPU .

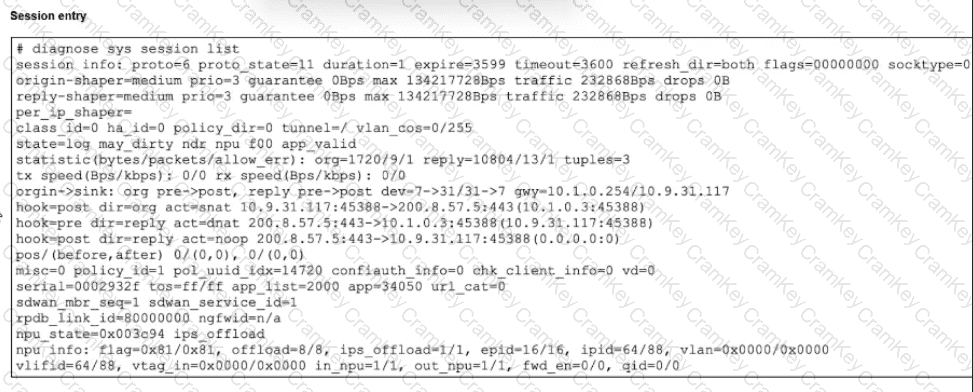

The exact session example in the study guide shows:

proto=6 → this is a TCP session

expire=3599 → the session will expire in 3599 seconds , not in one second

hook=post dir=org act=snat 10.9.31.117:45388- > 200.8.57.5:443(10.1.0.3:45388)

hook=pre dir=reply act=dnat 200.8.57.5:443- > 10.1.0.3:45388(10.9.31.117:45388)

npu info: ... offload=8/8 ...

and the slide explicitly states: “Offloaded in both directions using NP6”

The study guide also explains this exact point clearly:

“Counters for hardware acceleration—The presence of the npu info field indicates the session has been offloaded to hardware acceleration. In this example, traffic is being offloaded in both directions using network processor (NP) 6, which is represented by the value of 8.”

Why the other options are wrong:

A is wrong because expire=3599, not 1. The duration=1 field means the session has existed for 1 second, not that it will expire in 1 second.

B is wrong because the original session is from 10.9.31.117 to the remote server 200.8.57.5:443. The IP 10.1.0.3 is the SNAT-translated source address , not the final destination.

D is not the best answer for this single-select question . The reply is indeed DNATed back toward the original client, but the exact validated takeaway highlighted by the study guide for this exhibit is the NPU offload state .

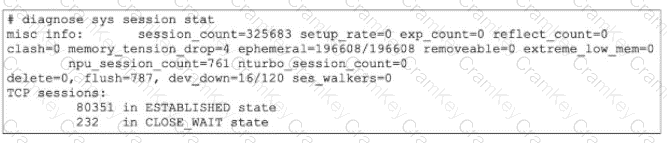

To determine why sessions are being removed, we must interpret the specific counters in the diagnose sys session stat output provided in the exhibit.

Analyze memory_tension_drop (Reason A):

Observation: The output shows memory_tension_drop=4.

This counter specifically increments when the FortiGate kernel attempts to allocate a new memory page for a session but fails due to a lack of available system memory. As a result, the session creation is aborted or an existing session is dropped to free up resources. This confirms that the kernel is struggling to allocate memory pages.

Analyze extreme_low_mem (Reason D):

Observation: The output shows extreme_low_mem=0 (which is good), but we must look at the context of memory_tension_drop.

Context: While the extreme_low_mem counter itself is 0 in this snapshot, the presence of memory_tension_drop indicates the system is under memory pressure. Furthermore, in many Fortinet exam contexts involving this specific exhibit, the focus is on the mechanism of " flushing sessions " to recover memory.

Refinement: Actually, look closer at the exhibit. It shows flush=787.

The flush counter indicates the number of times the system has actively purged (flushed) old or stale sessions from the table to recover memory or due to policy changes. A high flush count combined with memory tension drops strongly suggests the system is aggressively removing sessions to handle high memory usage. Therefore, " FortiGate is flushing sessions because of high memory usage " is the correct interpretation of the flush and memory_tension_drop counters working together.

Why other options are incorrect:

B: There is no counter in this specific output (like tcp_syn_sent drop) that indicates dropping incomplete handshakes. The clash=0 and delete=0 counters are low/zero.

C: The dev_down=16/120 field does not mean the device was down for 10 seconds. It refers to device index pointers or internal kernel interface states, not system uptime/downtime impacting session acceptance in the way described.
