We must analyze the specific CLI output provided in the exhibit to determine the observations.

Analyze the Command and Output:

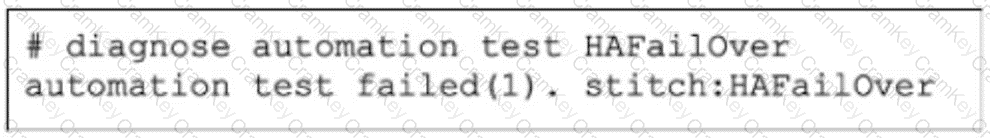

Command: # diagnose automation test HAFailOver

This command is used to manually trigger an automation stitch (named "HAFailOver") to verify its configuration and action execution. It simulates the trigger event to run the defined actions.

Output: automation test failed(1). stitch:HAFailOver

The output explicitly states that the test failed. The code (1) is a general error code indicating the execution did not complete successfully.

Evaluate the Options:

A. The configuration was backed up:

Incorrect. Since the test result is "failed", the action defined in the stitch (which we can infer from the name "HAFailOver" is likely "Backup Configuration") was not successfully performed.

B. A high availability (HA) failover occurred:

Incorrect. The command diagnose automation test is a simulation tool. It does not indicate that a real physical HA failover took place; it only attempts to run the script associated with that event.

C. The test was unsuccessful:

Correct. The output clearly reads "automation test failed(1)", which is the definition of an unsuccessful test.

D. The automation stitch test is not being logged:

Correct. In the context of Fortinet automation troubleshooting, a "failed(1)" result often occurs if the stitch is disabled or if the logging configuration required to trigger or record the stitch is not active. Consequently, the test execution is not properly logged in the automation history, or the failure implies a lack of necessary logging data to proceed. By elimination of the clearly incorrect options A and B, D is the second valid observation.

Analyze the "Send to Application Layer" Message:

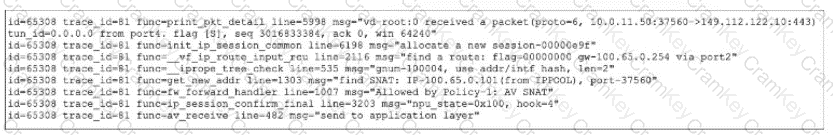

The most critical line in the debug output is: id=65308 ... func=av_receive ... msg="send to application layer"

Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.

Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a "send to application layer" message for standard web filtering.

Evaluate Option B (Firewall Policy Mode):

Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow-based, the traffic would stay in the flow path. Thus, Option B is correct.

Evaluate Option C (Web Filter Profile Mode):

In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.

Why Option A is Incorrect (NPU Offload):

The output shows npu_state=0x100. In the context of a flow trace where traffic is being "sent to application layer," this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.

Why Option D is Incorrect (Port Mapping):

While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct "observations" derived from the log data.

According to the official Fortinet administration guide for FortiOS 7.6.4 under the section "Configuring a RADIUS server," the supported RADIUS authentication methods you can configure via the CLI with config user radius are:

pap

chap

mschap

mschapv2

auto

The relevant CLI syntax is set auth-type {auto | ms_chap_v2 | ms_chap | chap | pap}​. You can confirm this directly in the configuration table and from real CLI sessions.

EAP (Extensible Authentication Protocol) is NOT an authentication option you can directly set under config user radius. EAP methods (such as EAP-TLS, EAP-PEAP, EAP-TTLS) are negotiated between the RADIUS client and server but are not configurable as an explicit auth-type option in FortiOS. EAP authentication is typically used automatically by features like 802.1X, not through the user radius object authentication-type setting, and always requires proper backend workings between supplicant and RADIUS server
