To solve this high CPU usage scenario involving the ipsengine, we must understand the specific functions of the diagnose test application ipsmonitor commands shown in the troubleshooting steps.

Analyze the Situation:

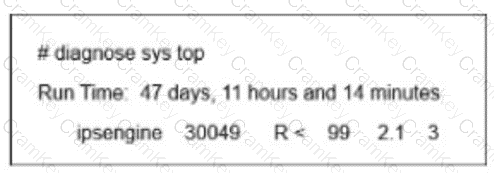

Exhibit: The diagnose sys top output shows the ipsengine process is in a run state (R) consuming 99% CPU.

Previous Action: The administrator already ran diagnose test application ipsmonitor 5.

Result: The CPU usage did not drop.

Understand the Commands:

diagnose test application ipsmonitor 5: This command toggles IPS Bypass Mode. When enabled, the IPS engine lets traffic pass through without inspection.

Implication: If the CPU was high due to traffic volume, enabling bypass would drop the CPU load immediately.

Failure: Since the CPU remained at 99% after bypass, the ipsengine process is likely frozen, stuck, or in an internal infinite loop unrelated to the current traffic flow. The process itself is the problem, not the traffic volume.

Evaluate the Solution (Option B):

diagnose test application ipsmonitor 2: This command toggles the IPS engine's Enable/Disable status.

Because the engine is stuck (bypass failed to relieve pressure), the "Immediate action" required is to stop or restart the process entirely.

Running option 2 effectively disables/kills the stuck IPS engine instance, which will immediately drop the CPU usage to near zero. (It can then be toggled again to restart it).

Why other options are incorrect:

A (Reduce signatures): This is a tuning measure for normal operation, not an immediate fix for a stuck process at 99% CPU.

C (Disable IPS on policies): This is a configuration change that takes time and requires a commit; it is not the most immediate diagnostic tool available.

D (Bypass all IPS engines): This describes the action of command 5 (Bypass), which the prompt explicitly states was already performed and failed.

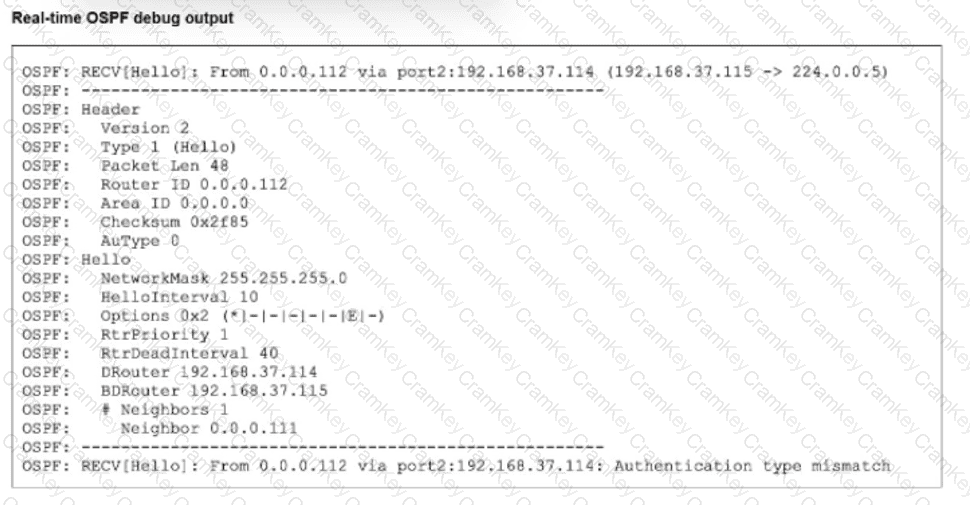

To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.

Analyze the Debug Output:

The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF: RECV[Hello]: ... auth-type 0 ...

"RECV": Indicates the packet is coming from the Remote peer.

"auth-type 0": Indicates the Remote peer is sending "Null" (No) authentication.

Analyze the Failure:

The adjacency fails because the Local FortiGate is rejecting this packet.

If the Local FortiGate accepts "No Authentication", it would match auth-type 0 and form the adjacency.

Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).

Evaluate the Options:

A. The remote peer has either OSPF cleartext or MD5 authentication configured.

Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.

B. There is an OSPF authentication configuration mismatch.

Correct. One side is sending "No Auth" (Remote), and the other expects "Auth" (Local). This is a definition of a mismatch.

C. The local FortiGate does not have OSPF authentication configured.

Incorrect. If the Local unit had "No Auth" configured, it would match the Remote's auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.

D. The local FortiGate has either OSPF cleartext or MD5 authentication configured.

Correct. Because the Local unit is rejecting the "No Auth" packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).

Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.

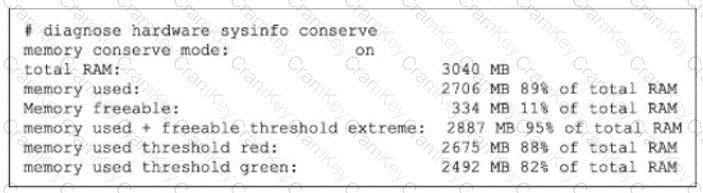

To determine the behavior, we must analyze the memory thresholds and the current status shown in the exhibit:

Analyze the Thresholds (The Three States):

Green (Exit): 82% (Memory usage is safe).

Red (Enter Conserve Mode): 88% (Memory usage is high; action is required).

Extreme (Kernel Conserve Mode): 95% (Memory is critical; drastic action is required).

Determine the Current State:

Current Memory Used: 89%.

Since 89% is greater than the Red threshold (88%) but lower than the Extreme threshold (95%), the FortiGate is in Red Conserve Mode (User-space conserve mode), not Extreme mode.

Evaluate the Behavior in "Red" Mode:

In Red Conserve Mode, the FortiGate's primary goal is to prevent memory exhaustion while still processing traffic if possible.

Proxy-based inspection (handled by the WAD process) is memory-intensive because it buffers content. To save memory, the system stops accepting new sessions that require proxy-based inspection.

Flow-based inspection (handled by the IPS engine) streams data and consumes significantly less memory. Therefore, in Red mode, the system typically continues to allow and inspect flow-based sessions.

Option A correctly describes this split behavior: allowing flow-based (lighter) but blocking proxy-based (heavier).

Why other options are incorrect:

B: If memory increases another 6% (89% + 6% = 95%), the device hits the Extreme threshold. At 95%, the kernel begins dropping all new sessions to prevent a system crash. Thus, it will not continue to allow sessions.

C: This describes "Fail-Open" behavior (passing traffic without inspection). While configurable (set av-failopen pass), the default is usually "Fail-Close" (blocking). More importantly, the distinction between flow and proxy availability is the key architectural feature of Red mode.

D: Blocking all new sessions regardless of type is the behavior of Extreme Conserve Mode (95%). Since the device is only at 89%, this drastic measure is not yet active.
