Cisco Updated 350-401 Exam Questions and Answers by hidayah

Solution:

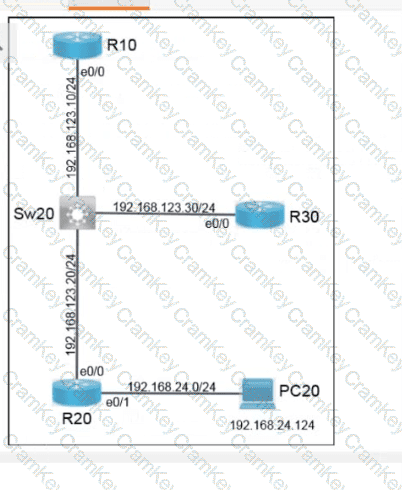

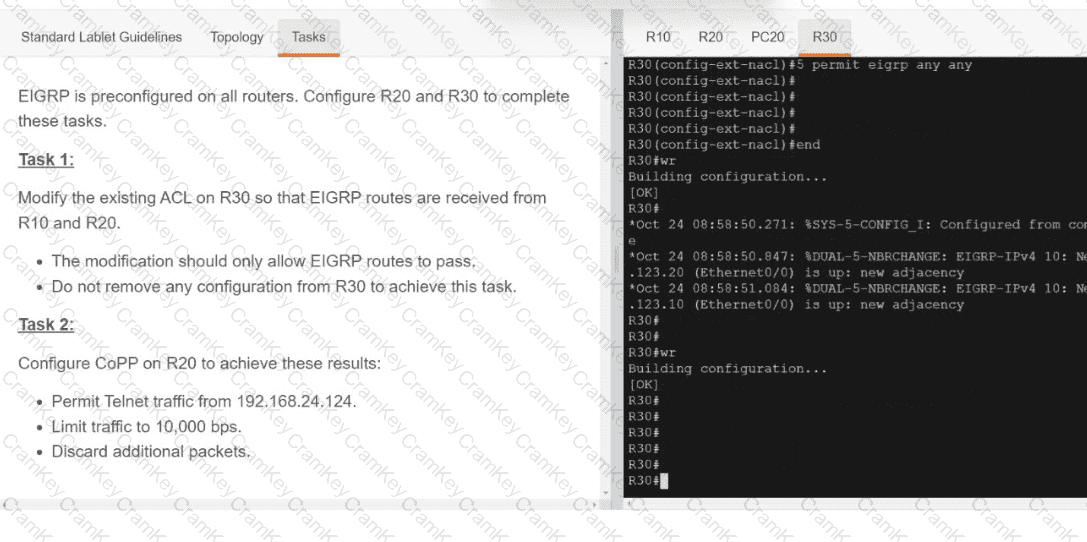

R30

show ip access-list

config t

ip access-list extended 120

5 permit eigrp any any

wr

R20

config t

ip access-list extended 100

permit tcp 192.168.25.0 0.0.0.255 any eq 23

class-map match-any TELNET

match access-group 100

policy-map CoPP

class TELNET

police 10000 conform-action transmit exceed-action drop

control-plane

service-policy input CoPP

wr

Solution:

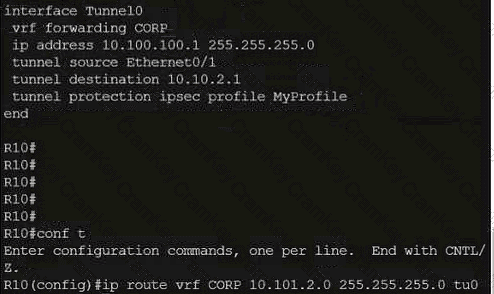

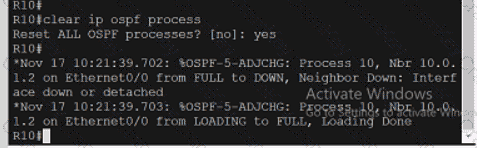

R10

Copy run start

R20

Copy run start

Verification:

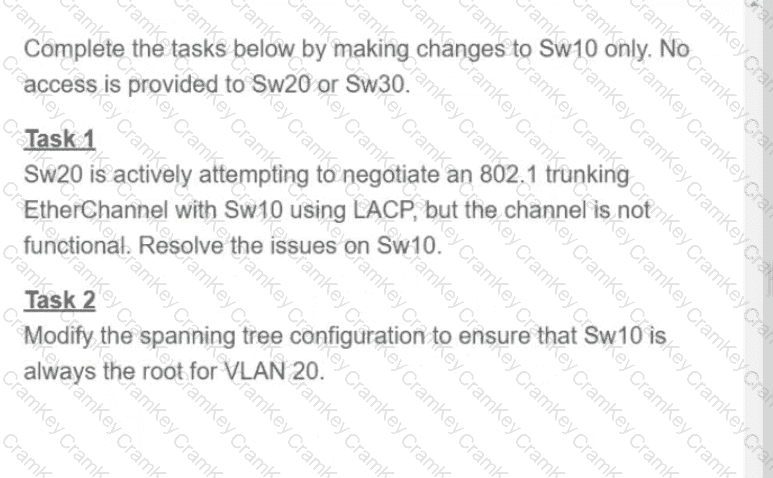

Solution:

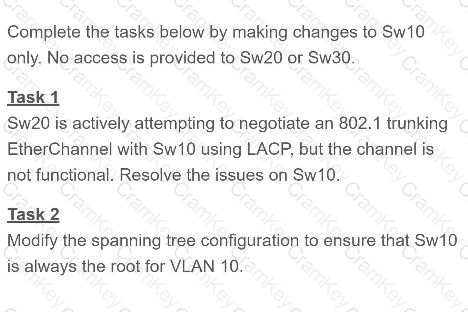

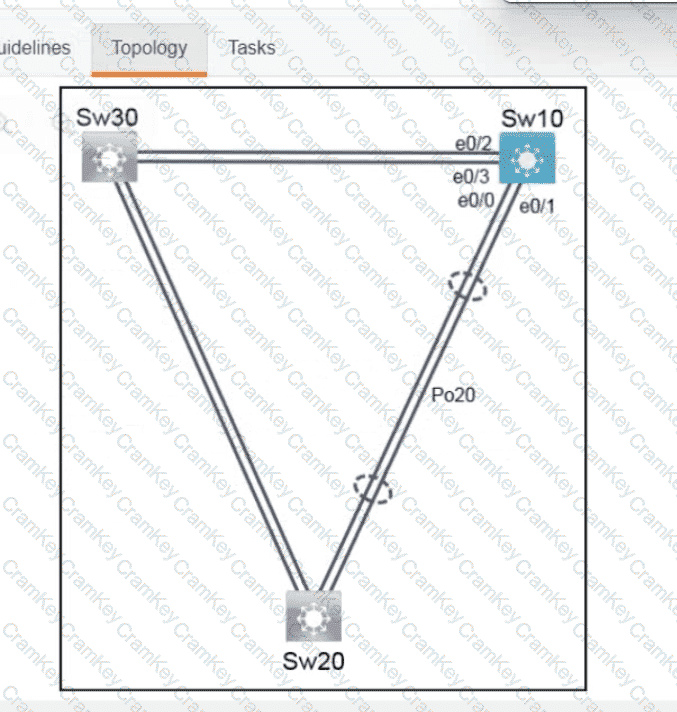

Sw10

config t

no int po20

int et0/0

channel-group 20 mode active

no shut

spanning-tree vlan 20 pri 0

wr

Verification:-

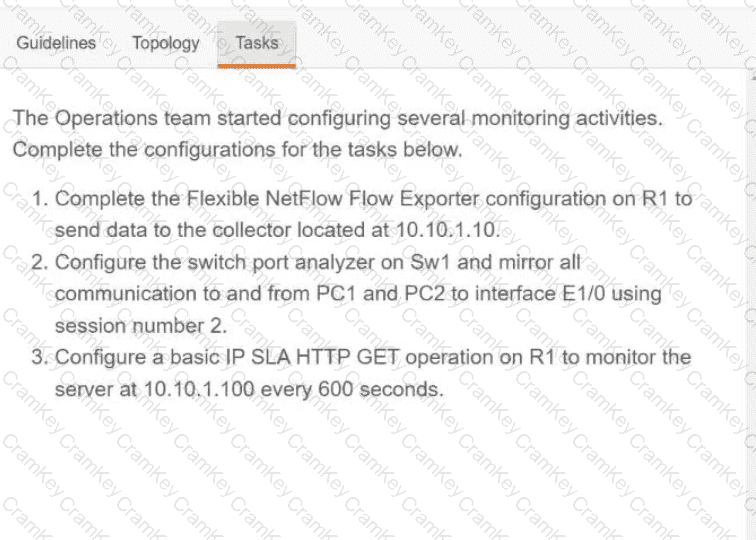

Solution:

R1

config t

flow record NetFlow-Record

match ipv4 source address

match ipv4 destination address

collect country bytes

flow exporter NetFlow-Exporter

destination 10.10.1.10

transport udp 9996

flow monitor NetFlow-Monitor

record NetFlow-Record

exporter NetFlow-Exporter

exit

int et0/0

ip flow monitor NetFlow-Monitor input

ip sla 1

http get http://10.10.1.100

frequency 600

exit

ip sla schedule 1 start-time now

wr

Sw1

config t

monitor session 2 source int e0/0

monitor session 2 source int et0/2

monitor session 2 destination interface e1/0

wr
