In significant aortic valve regurgitation (AR), the continuous wave Doppler signal across the valve demonstrates a rapid decline in regurgitant jet velocity, resulting in a pressure half-time (PHT) less than 250 milliseconds. A short PHT indicates severe AR with rapid equalization of aortic and left ventricular pressures during diastole.

Pulsed wave Doppler forward flow in the abdominal aorta evaluates stroke volume but does not directly indicate AR severity. Vena contracta to LVOT diameter ratio less than 25% would indicate mild AR, not significant. Peak velocity ≥4.5 m/s is more characteristic of aortic stenosis rather than regurgitation.

This criterion for AR severity using CW Doppler PHT is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Regurgitation Doppler Assessment【20:375-380†Textbook of Clinical Echocardiography】.

The continuity equation calculates aortic valve area (AVA) by equating stroke volume through the left ventricular outflow tract (LVOT) to stroke volume through the aortic valve. The equation is:

AVA = (Cross-sectional area of LVOT) × (LVOT VTI) / (Aortic valve VTI)

The cross-sectional area of the LVOT is derived from the LVOT diameter, using the formula π × (diameter/2)^2. Because the diameter is squared in this calculation, even a small error in measurement leads to a significant error in the calculated valve area.

This makes the LVOT diameter measurement the greatest source of error when calculating AVA by the continuity equation. Errors in Doppler velocity measurements (LVOT velocity or aortic jet velocity) are also important but less impactful compared to diameter measurement error.

Aortic valve planimetry is a direct measurement method, not part of the continuity equation. LVOT velocity recorded with pulsed Doppler and aortic jet velocity by continuous wave Doppler are important but not the greatest error source.

This is a well-established concept described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Valvular Stenosis and Continuity Equation Methodology【20:370-375†Textbook of Clinical Echocardiography】.

The M-mode image shows characteristic diastolic doming or “hockey stick” appearance of the anterior mitral leaflet with restricted leaflet motion. This is a classic sign of mitral stenosis, where leaflet thickening and fusion cause limited opening during diastole.

Dilated cardiomyopathy shows increased chamber sizes and decreased systolic function but not mitral leaflet doming. Hypertrophic cardiomyopathy is characterized by septal thickening and SAM of the mitral valve. Mitral valve prolapse shows leaflet billowing into the left atrium during systole.

This pattern is well described in ASE valvular heart disease guidelines and echocardiography texts【12:ASE Valve Imaging Guidelines†p.180-185】【16:Textbook of Clinical Echocardiography, 6e†p.200-205】.

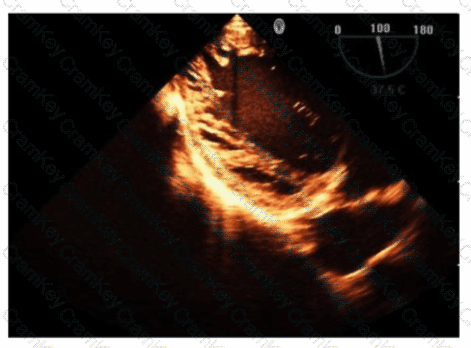

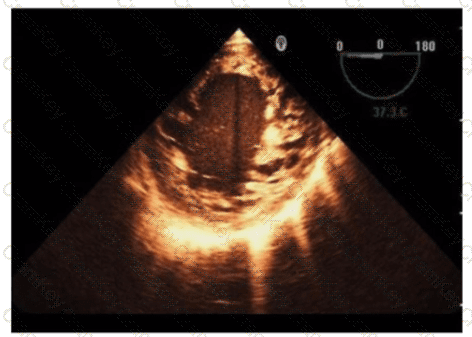

The echocardiographic images show prominent trabeculations and deep intertrabecular recesses communicating with the left ventricular cavity, best seen on contrast-enhanced images. This finding is characteristic of left ventricular noncompaction (LVNC), a cardiomyopathy resulting from arrested myocardial compaction during embryogenesis.

LVNC is diagnosed by visualizing a two-layered myocardium with a thin compacted epicardial layer and a thicker noncompacted endocardial layer with deep trabecular recesses. The use of contrast echocardiography enhances endocardial border delineation and recess visualization, increasing diagnostic accuracy.

Loeffler syndrome (hypereosinophilic cardiomyopathy) often shows endomyocardial fibrosis and restrictive physiology but not prominent trabeculations. Hypertrophic cardiomyopathy shows asymmetric septal hypertrophy without deep recesses. Ischemic cardiomyopathy shows wall motion abnormalities but not characteristic trabecular patterns.

These diagnostic criteria and imaging features are well documented in the "Textbook of Clinical Echocardiography" and ASE guidelines on cardiomyopathies and use of contrast echo【16:Textbook of Clinical Echocardiography, 6e†Chapter on LV Noncompaction】【12:ASE Contrast Echocardiography Guidelines†p.180-190】.
