The apical sparing pattern of global longitudinal strain (GLS) is a characteristic echocardiographic finding in cardiac amyloidosis. This pattern appears as a relative preservation of longitudinal strain in the apical segments compared to markedly reduced strain in basal and mid-ventricular segments, resulting in a "cherry on top" bullseye plot appearance.

This distinctive pattern helps differentiate amyloidosis from other causes of left ventricular hypertrophy and dysfunction, such as hypertensive heart disease, hypertrophic cardiomyopathy, or athlete’s heart, which generally show more uniform or different regional strain impairments.

This diagnostic feature has been validated in numerous studies and is included in the ASE guidelines on strain imaging and the "Textbook of Clinical Echocardiography," providing a sensitive and specific noninvasive marker for amyloid infiltration of the myocardium【12:ASE Strain Imaging Guidelines†p.130-140】【16:Textbook of Clinical Echocardiography, 6e†p.320-325】.

Comprehensive and Detailed Explanation From Exact Extract:

The recommended method to measure left atrial diameter in the parasternal long axis view is the inner edge to inner edge technique, perpendicular to the aortic root, measured at end-diastole. This approach provides the most reproducible and standardized measurement.

Measurement parallel to the aortic root or at end-systole is less accurate. Outer edge measurements overestimate size.

ASE chamber quantification guidelines specify this method for standardization and reproducibility in adult echocardiography practice【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.120-125】.

Comprehensive and Detailed Explanation From Exact Extract:

Tetralogy of Fallot (TOF) is a congenital heart defect characterized by four key anatomical abnormalities: an outlet (malalignment) ventricular septal defect (VSD), an overriding aorta that receives blood from both ventricles, right ventricular outflow tract (RVOT) obstruction (commonly infundibular stenosis), and resultant right ventricular hypertrophy. These defects cause cyanosis due to right-to-left shunting and impaired pulmonary blood flow.

Option A describes Ebstein anomaly, characterized by a displaced tricuspid valve and atrialization of the right ventricle.

Option B describes features more consistent with Shone complex or other left heart obstructive lesions.

Option C describes atrioventricular septal defect (AVSD), seen in conditions like Down syndrome.

In unrepaired TOF, echocardiography demonstrates the large malalignment VSD, overriding aorta, RVOT obstruction, and hypertrophied right ventricle. These are classic textbook findings described in adult and pediatric echocardiography literature, including “Textbook of Clinical Echocardiography” (Chapter on Congenital Heart Disease) and ASE guidelines【16:Textbook of Clinical Echocardiography, 6e†p.560-565】【12:ASE Adult Congenital Guidelines†p.400-410】.

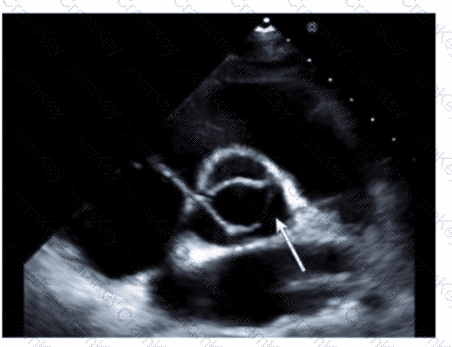

The arrow points to the left coronary cusp of the aortic valve, identifiable in the short axis view as one of the three cusps. The left coronary cusp is adjacent to the left coronary artery origin and lies anteriorly.

The posterior leaflet is part of the mitral valve, septal leaflet refers to the tricuspid valve, and non-coronary cusp is another aortic cusp located posteriorly.

This identification is found in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Valve Anatomy【20:50-55†Textbook of Clinical Echocardiography】.
