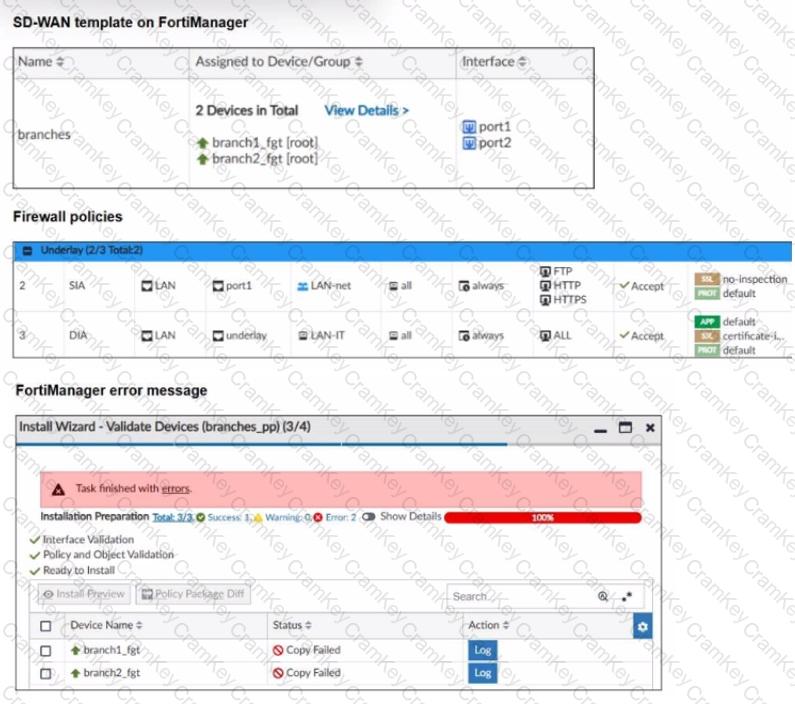

FortiManager enforces a strict distinction: " Firewall policies must reference SD-WAN zones, not individual SD-WAN members, when used in conjunction with SD-WAN templates. Attempting to install a policy that references a specific member (interface) will result in a deployment error, as member-level targeting is not supported in SD-WAN policy abstraction. This enforces centralized policy consistency and proper SD-WAN operation. " Ensuring policies target zones allows FortiGate to dynamically select the optimal member. FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault. In checking this outcome, an administrator should distinguish what the displayed exhibit proves from configuration prerequisites not visible in the screenshot. Routing eligibility, device role, rule matching, and software-version details should be verified before using the selected answer in a production decision. The referenced Fortinet documentation identifies the underlying feature and its supported configuration context.

FortiGate SD-WAN evaluates traffic against configured service rules and uses eligible member interfaces to determine the forwarding path. In this scenario, the destination is an internal corporate server accessible through the SD-WAN overlay.

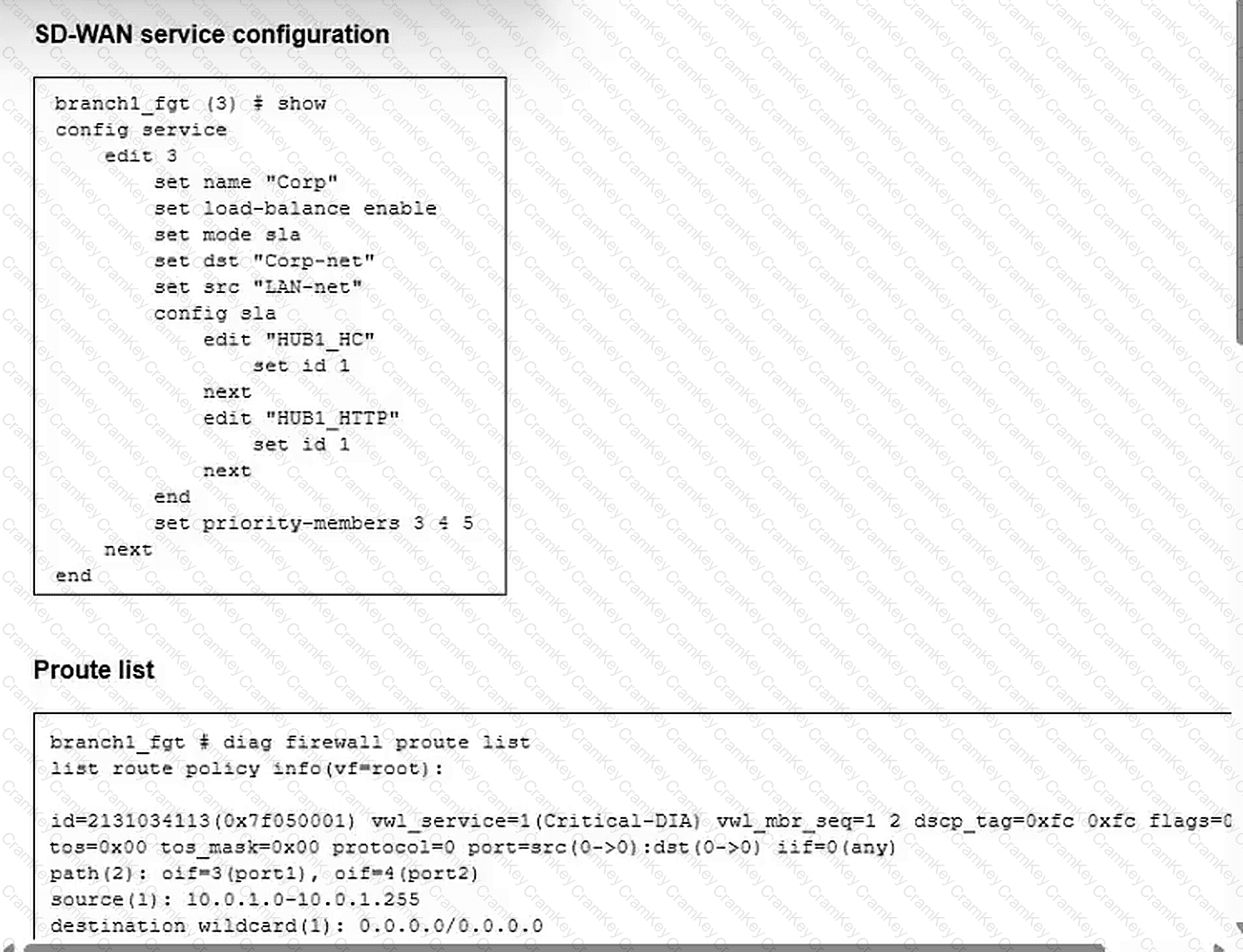

The exhibit identifies SD-WAN service rule 3, named Corp , with the following configuration:

set load-balance enable

set mode sla

set dst " Corp-net "

set src " LAN-net "

set priority-members 3 4 5

Option D is correct because the rule enables SLA-based load balancing across three overlay members corresponding to HUB1-VPN1, HUB1-VPN2, and HUB1-VPN3.

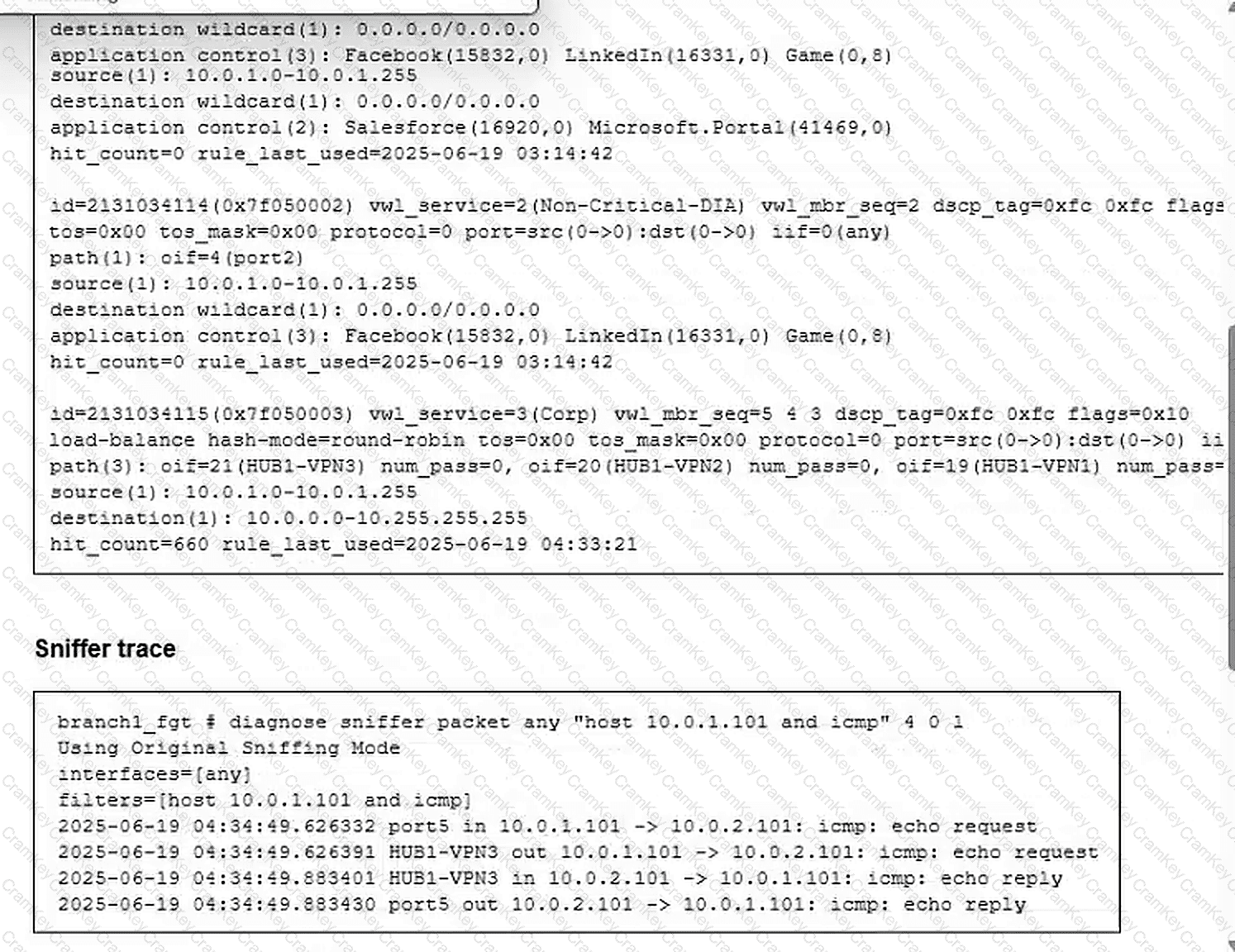

The route-list output confirms that the corporate service rule has three available paths. Provided the members remain healthy, meet the applicable SLA requirements, and have valid destination reachability, FortiGate can distribute qualifying sessions among these interfaces.

Option B incorrectly assumes that the interface observed in the packet-sniffer output must carry every subsequent session. The displayed ICMP traffic uses HUB1-VPN3, but this observation does not establish exclusive forwarding for HTTP sessions.

Options A and C identify physical WAN interfaces rather than the eligible corporate VPN overlay members.

FortiGate applies the configured load-balancing algorithm when selecting an eligible member for a new session. The original question establishes that all SD-WAN links are stable, supporting the use of the available overlay paths.

FortiSASE geofencing provides geographical access control by permitting or denying connections to FortiSASE security points of presence (POPs) according to the originating country or region of the connecting user or edge device.

Option D is correct because FortiSASE identifies the source country using the connection ' s public IP address and evaluates it against configured regional access restrictions.

Administrators configure this functionality under Network > Geofencing > Regional access to FortiSASE.

FortiSASE supports three geographical access modes:

Allow all: Permits connections from all countries and regions. This is the default configuration.

Allow specified: Permits connections only from explicitly authorized countries or regions.

Deny specified: Blocks connections originating from selected countries or regions while permitting other locations.

Option A is incorrect because geofencing does not primarily enforce time-based application access restrictions.

Option B is incorrect because content inspection and web filtering are separate security functions.

Option C is incorrect because endpoint data encryption is unrelated to geographical connection restrictions.

Additionally, FortiSASE supports regional compliance rules that prioritize permitted POPs or on-premises gateways for users originating from specified regions. These routing preferences are distinct from geofencing ' s connection admission controls.

The implicit SD-WAN rule serves as the final catch-all. In FortiOS operation: " Sessions matching the implicit SD-WAN rule do not have an SD-WAN service id, as they are not associated with any specific user-defined SD-WAN rule. Additionally, this occurs only when traffic fails to match any entry in the policy route table. This default handling guarantees connectivity while minimizing the risk of blackholed traffic. " Administrators can observe this in diagnostic outputs for troubleshooting. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow. When troubleshooting, correlate the configured SD-WAN service with diagnose sys sdwan service4, the live session entry and the routing table. An application signature, an IP route and a health-check result describe different decision stages; treating them as interchangeable can produce incorrect conclusions about the egress interface.
