Fortinet Updated NSE7_SSE_AR-26 Exam Questions and Answers by arnold

BGP on loopback separates routing adjacency establishment from individual IPsec tunnel interface addresses. Combined with Dynamic BGP, it enables scalable SD-WAN overlays and dynamic spoke-to-spoke routing relationships.

Option A is correct for the intended reference design because enabling net-device on a spoke supports dedicated tunnel-interface handling for IPsec connections and dynamically created ADVPN shortcuts. This configuration appears in Fortinet ' s overlay provisioning examples.

Option C is correct because the spoke ' s localid supplies an identifiable IKE identity that the hub can use when authenticating and matching IPsec peers. It is particularly useful where multiple spokes share a hub ' s dial-up IPsec configuration or the hub requires specific peer identities.

Option B is incorrect because the hub normally acts as the dynamic IPsec dial-up responder, rather than being configured as a static tunnel endpoint for every spoke.

Option D is not a fundamental requirement of BGP-on-loopback routing. IKE mode configuration can distribute tunnel addresses, but loopback-based BGP does not inherently require IP addresses on each IPsec overlay.

An important implementation distinction is that net-device behavior can vary by FortiOS release and reference topology. Therefore, the actual production configuration should follow the selected FortiOS 7.6 deployment template rather than treating this combination as universal.

The FortiManager installation error is associated with the gateway value produced by metadata substitution, not with a general failure of FortiManager-to-FortiGate connectivity. A template uses a variable such as ' $(sdwan_port1_gw) ' to provide the interface gateway at installation time. If the current device has no valid value in its per-device metadata mapping, the generated FortiOS configuration contains an invalid IPv4 gateway and the copy or validation operation fails. Therefore the remediation is to inspect the variable definition and its per-device mapping, which is option C in the normalized question. The administrator can verify the mapping for the affected FortiGate, supply a valid address, regenerate the installation preview and reinstall. It is unnecessary to remove all template installation targets: FortiManager supports them alongside metadata variables. Nor must the members of a zone all use identical gateway configuration methods. This conclusion is specifically tied to the error shown in the original exhibit. The uploaded FortiSASE guides describe centralized management generally, but detailed per-device template substitution belongs to the FortiManager 7.6 Administration Guide.

FortiSASE Branch On-ramp extends cloud-delivered security services to users located behind branch routers or firewalls through IPsec tunnel connectivity.

Option A is correct because FortiSASE supports deployment of multiple branch on-ramp locations. A branch device can establish connections to multiple provisioned on-ramp locations, subject to the supported device type, licensing, and tunnel configuration. This facilitates geographic resilience and alternative connectivity paths.

Option D is correct because Branch On-ramp and Secure Private Access share important Border Gateway Protocol (BGP) configuration settings. These include FortiSASE autonomous system information and BGP router ID subnet allocation.

Fortinet specifies that the SPA network configuration must be established before deploying branch on-ramp locations, although individual SPA service connections can be configured afterward.

Option B is incorrect because SSL deep inspection requires endpoints to trust the certificate authority used by FortiSASE to inspect and re-sign intercepted TLS connections. Without the appropriate trusted CA certificate, users can experience certificate validation errors.

Option C is incorrect because Branch On-ramp supports IPsec-capable branch devices, including supported FortiGate and third-party devices. FortiAP and FortiExtender are associated primarily with thin-edge deployments.

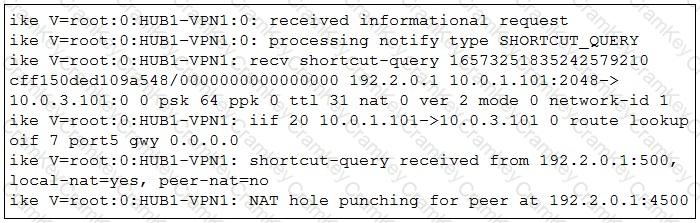

The IKE debug shows a receiving SHORTCUT_QUERY event and NAT hole punching, without an explicit forward shortcut-query record. This is consistent with a spoke receiving the shortcut-discovery query relayed by its hub over the existing spoke-to-hub tunnel. A hub-forwarder log would ordinarily include forwarding messages; the exhibit does not prove that a final spoke-to-spoke shortcut is already established. NAT hole punching is part of preparing connectivity when at least one endpoint is behind address translation, not proof that two established peers have completed negotiation. Therefore, the supported role is the destination spoke receiving a query via its hub. Reference: FortiOS 7.6 — ADVPN Shortcut Discovery and NAT Traversal. An operational review should distinguish the rule that matches the traffic from the interface that is ultimately selected. Valid forwarding also depends on destination route eligibility, current member state and the applicable SLA or quality-selection algorithm. A diagnostic showing configured members alone is not conclusive evidence that all those members will carry a particular flow.
