Fortinet Updated NSE7_SSE_AR-26 Exam Questions and Answers by laurence

An SD-WAN member may be removed using the FortiGate GUI once its configuration dependencies are cleared. Option A is the intended answer: FortiOS updates the member configuration and its associated forwarding entries as needed. Removal does not require the CLI, does not enforce a minimum of two members per user-defined zone, and does not automatically move the interface into the default virtual-wan-link zone. Those facts eliminate B, C and D. A working deployment can lose connectivity after this change if other services depended on routes through the deleted member; therefore an administrator should check static routing and member reachability, not simply the SD-WAN Rules or Performance SLAs tabs. FortiOS describes an SD-WAN member as a reference to an underlying physical or logical interface. Deleting the SD-WAN membership does not necessarily delete that underlying interface or its addressing. Before removing it, examine SD-WAN member references, health checks, firewall policies, SD-WAN zones and configured static routes. After the change, compare the active routing table and the available SD-WAN forwarding members. The answer assumes no outstanding dependency blocks the delete operation.

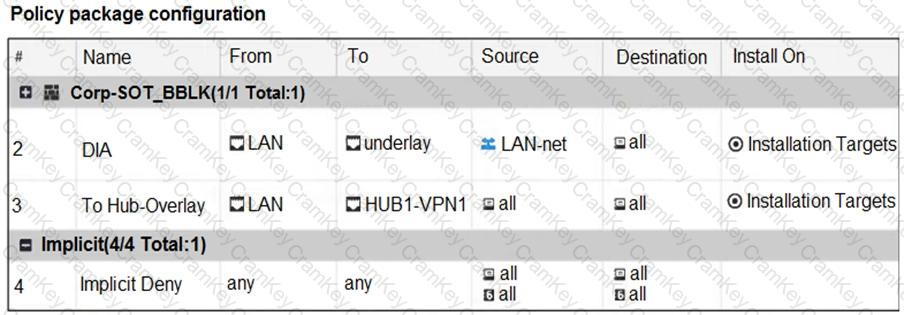

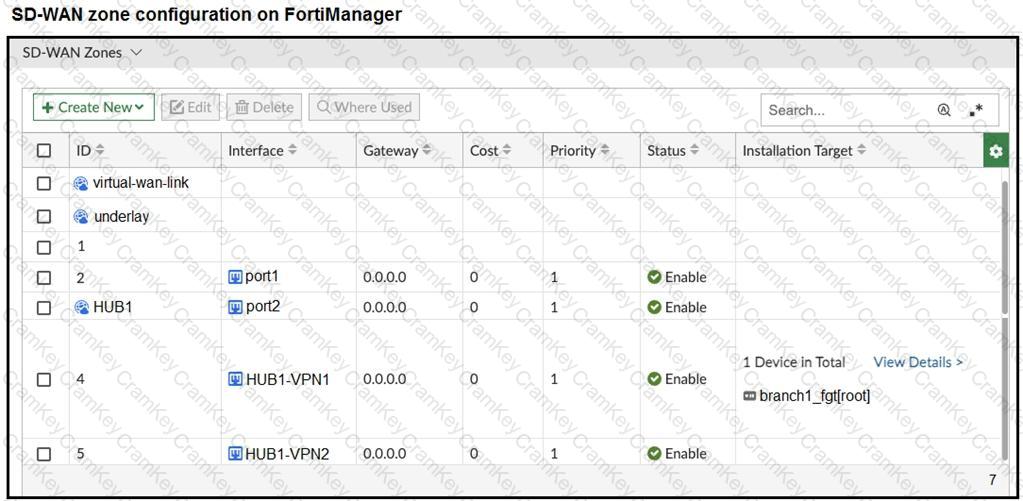

Policy 3 points traffic To = HUB1-VPN1, which is an SD-WAN member interface. In SD-WAN you must reference the SD-WAN zone (the logical interface) in policies, not its member tunnels. Change the policy’s To interface to the zone HUB1, and the install will succeed. FortiManager templates reduce repetitive work but must resolve to valid, device-specific configurations at installation time. Device assignments, metadata mappings, ADOM scope, policy-package interfaces and provisioning order should be inspected together rather than troubleshooting any one object in isolation. A successful management connection does not guarantee a successful configuration installation. Review the installation preview and task log, then validate the resulting device configuration and operational diagnostics. This separates a deployment-time validation failure from a live tunnel, routing or SLA fault. In the relevant Fortinet FortiManager documentation, the applicable feature should be verified against the deployed software version, the selected configuration mode and the live operational state before the answer is treated as a definitive implementation requirement.

In FortiOS 7.6, when SD-WAN is enabled, physical and logical WAN interfaces are added as SD-WAN members and are abstracted behind the SD-WAN interface (virtual-wan-link or SD-WAN zone). Traffic forwarding decisions are then made by SD-WAN rules instead of individual interfaces. Under the FortiOS 7.6 architecture and Fortinet SD-WAN architecture guides, firewall policies must reference the SD-WAN interface or SD-WAN zone, not the individual WAN interfaces that are members of SD-WAN. Therefore, during the configuration update process, existing firewall policies that reference physical WAN interfaces must be updated to reference the SD-WAN interface. Option A is incorrect because routing configuration does not require replacing interface references when SD-WAN is enabled. Static and dynamic routes typically point to the SD-WAN interface automatically, and SD-WAN rules handle path selection. Option B is incorrect because SD-WAN is a built-in FortiOS feature. It does not require a separate license and does not require a reboot when enabled. Option D is incorrect because interfaces must remain enabled to function as SD-WAN members. Disabling an interface would prevent SD-WAN from using it for traffic forwarding. Therefore, the required action during the SD-WAN configuration update process is to replace references to interfaces used as SD-WAN members in the firewall policies, which corresponds to option C.

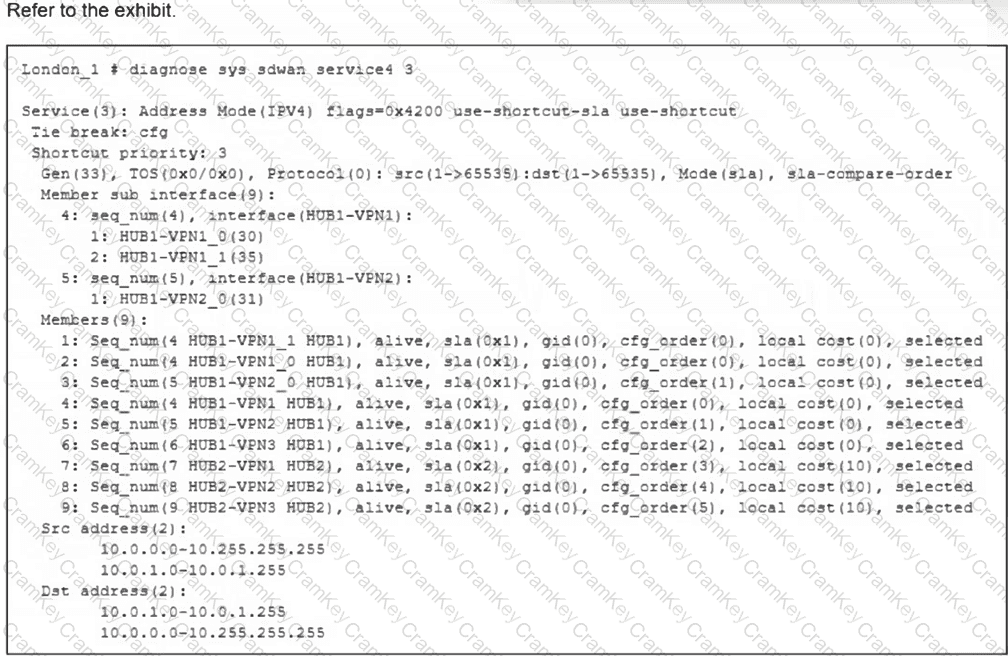

The command shown in the exhibit is: diagnose sys sdwan service 4 3 This command displays the runtime state of SD-WAN rule ID 3 on the device. The output explicitly shows: The listed members include multiple IPsec tunnel interfaces such as HUB1-VPN1, HUB1-VPN2, HUB1-VPN3, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3, which is characteristic of a spoke device connecting to multiple hubs in a hub-and-spoke ADVPN topology, as defined in the FCSS SD-WAN 7.6 architecture. Option B is incorrect because, although members are listed under different interfaces, the output does not indicate SD-WAN zones. Zones are shown only in configuration output, not in this diagnostic command. Option C is incorrect because this is not a hub device. The presence of multiple hub tunnels as SD-WAN members indicates a spoke role. Additionally, the output does not confirm the number of established ADVPN shortcuts. Option D is incorrect because the output clearly references SD-WAN rule 3, not rule 4, and it does not state that exactly three shortcut tunnels are allowed. Therefore, the correct conclusion is that this is a spoke device and SD-WAN rule 3 is configured with nine members, which matches option A.
