A server provides services to clients. In practical network terms, it runs applications or services that workstations request, and it can handle requests from multiple clients at the same time. Examples include web servers, file servers, DNS servers, DHCP servers, authentication servers, and application servers. A server does not have to run the same operating system as other servers to communicate; network protocols provide interoperability. It also does not achieve redundancy only through virtual clustering, and it does not have to be housed solely in a data center dedicated to one client. Cisco CCNA 200-301 v1.1 Network Fundamentals includes endpoint and server roles because engineers must understand what traffic sources and destinations exist on the network. The two correct functions are application/data service delivery and handling simultaneous client requests. That makes B and C correct.

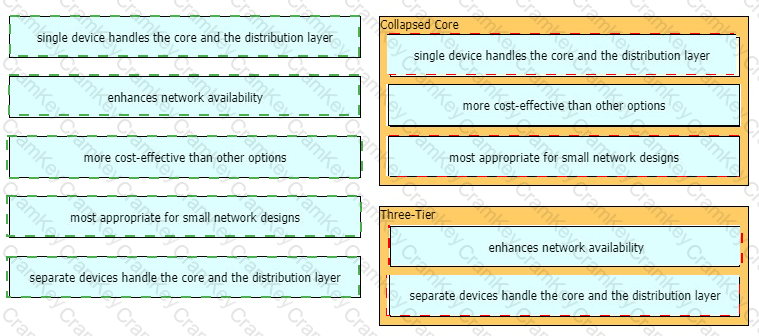

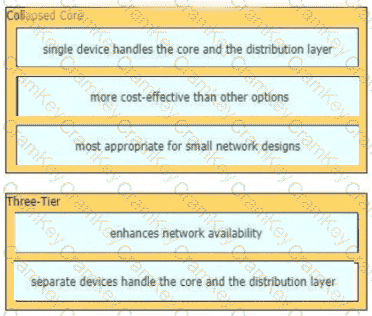

The correct response is the displayed drag-and-drop mapping. Network architecture characteristics distinguish two-tier, three-tier, spine-leaf, WAN, SOHO, and cloud designs. The correct mapping depends on where devices attach, where aggregation occurs, how redundancy is built, and whether the design optimizes campus access, data-center east-west traffic, or remote connectivity. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. The distractors normally mix access, distribution, core, and data-center terms, so matching function to layer is the safest method. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.

Pure IPsec protects unicast IP traffic well, but it does not natively carry multicast or broadcast traffic across sites in the way routing protocols and some legacy services may require. GRE can encapsulate many traffic types, including multicast, inside a unicast tunnel. When GRE is combined with IPsec, GRE provides the tunnel that can carry multicast traffic and IPsec provides encryption and integrity protection for the GRE packets. This is why GRE over IPsec is a common design when encrypted site-to-site connectivity must also support routing protocol hellos or multicast-dependent control traffic. ISATAP is an IPv6 transition mechanism, not the answer for encrypted multicast between remote sites. GRE alone carries the traffic but does not encrypt it. Cisco CCNA 200-301 v1.1 Security Fundamentals expects candidates to understand the division of labor: GRE encapsulates; IPsec secures. Therefore, the mechanism that carries multicast between remote sites and supports encryption is GRE over IPsec.

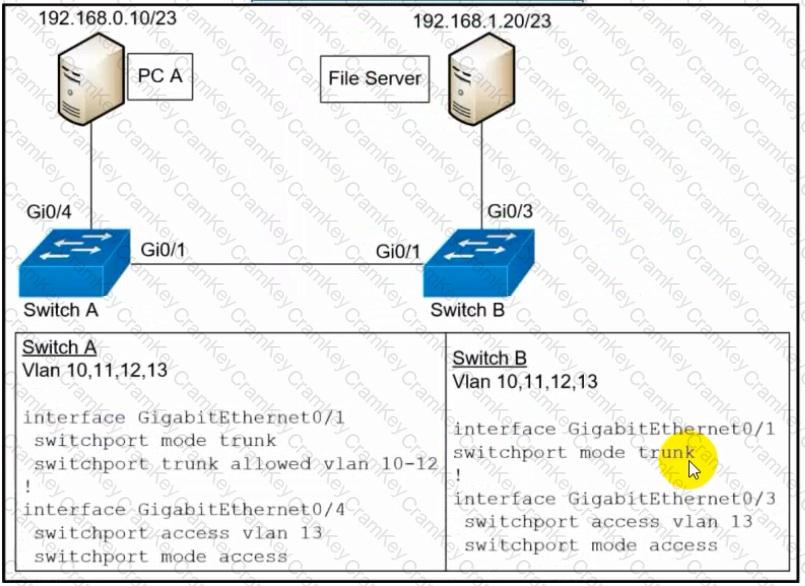

The correct response is C. The trunk must add the missing VLAN to the allowed VLAN list without removing existing working VLANs. The command to add VLAN 13 preserves the current allowed VLANs and enables communication to the file server. For Cisco CCNA 200-301 v1.1, the important point is the mechanism, not a generic description of the technology. Replacing the allowed list with only one VLAN or removing existing VLANs would interrupt other communications. When this appears in a network, the symptom normally confirms the answer: the route installed, the state selected, the packet forwarded, the wireless client behaviour, or the management workflow will follow this rule. That is why this answer is the best fit for the scenario and not just a plausible networking term.
