In an EVPN-VXLAN environment, different BGP route types serve distinct purposes in building the control plane. The Ethernet Segment Identifier (ESI) is a unique 10-byte identifier used to represent a multi-homed segment.

Type 1: Ethernet Auto-Discovery (A-D) Route (Option A): This route type is essential for multi-homing scenarios. It carries the ESI to support features like fast convergence and aliasing. By advertising an A-D route per Ethernet Segment, a PE tells other routers that it is connected to that specific ESI. It does not carry individual host MAC addresses; instead, it provides a " mass withdraw " mechanism to quickly update paths if the entire segment goes down.

Type 4: Ethernet Segment Route (Option D): This route is used exclusively for Designated Forwarder (DF) election. It advertises the existence of an ESI and the ES-Import Route Target to all other PE routers. This allows PE routers connected to the same multi-homed segment to discover each other automatically and elect a DF to handle BUM traffic. Like Type 1, it focuses on the segment identity and does not include MAC addresses.

Type 2: MAC/IP Advertisement Route (Option B): This is the primary route used for host reachability. It must include a MAC address (and optionally an IP). While it also includes the ESI to indicate which segment the host is behind, its primary function is MAC advertisement.

Type 3: Inclusive Multicast Ethernet Tag Route (Option C): This route is used for VTEP discovery and building the replication list for BUM traffic. It identifies the VTEP ' s IP and the VNI, but it does not carry the ESI or MAC addresses.

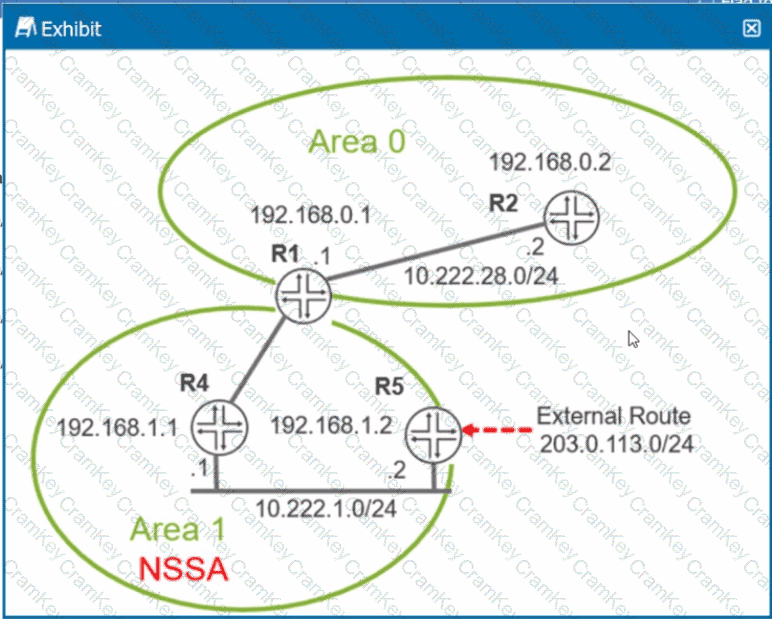

The exhibit shows an OSPF network where Area 1 is configured as a Not-So-Stubby Area (NSSA). R5 is an Autonomous System Boundary Router (ASBR) injecting an External Route (203.0.113.0/24) into this area.

NSSA ASBR Behavior (Option D): Within an OSPF NSSA, external routes cannot be advertised as standard Type 5 LSAs because stubby areas do not support them. Instead, the ASBR (R5) advertises the external prefix using a Type 7 LSA (NSSA External LSA). This LSA is flooded throughout Area 1.

ABR Translation Behavior (Option C): When the Type 7 LSA reaches the Area Border Router (R1), the ABR is responsible for translating it into a Type 5 LSA (AS External LSA). This allows the external route to be propagated into the backbone (Area 0) and subsequently to the rest of the OSPF domain.

Incorrect Statements (A & B): Option A is incorrect because Type 7 LSAs are local to the NSSA and are never advertised into Area 0. Option B is incorrect because Type 5 LSAs are strictly prohibited within an NSSA.

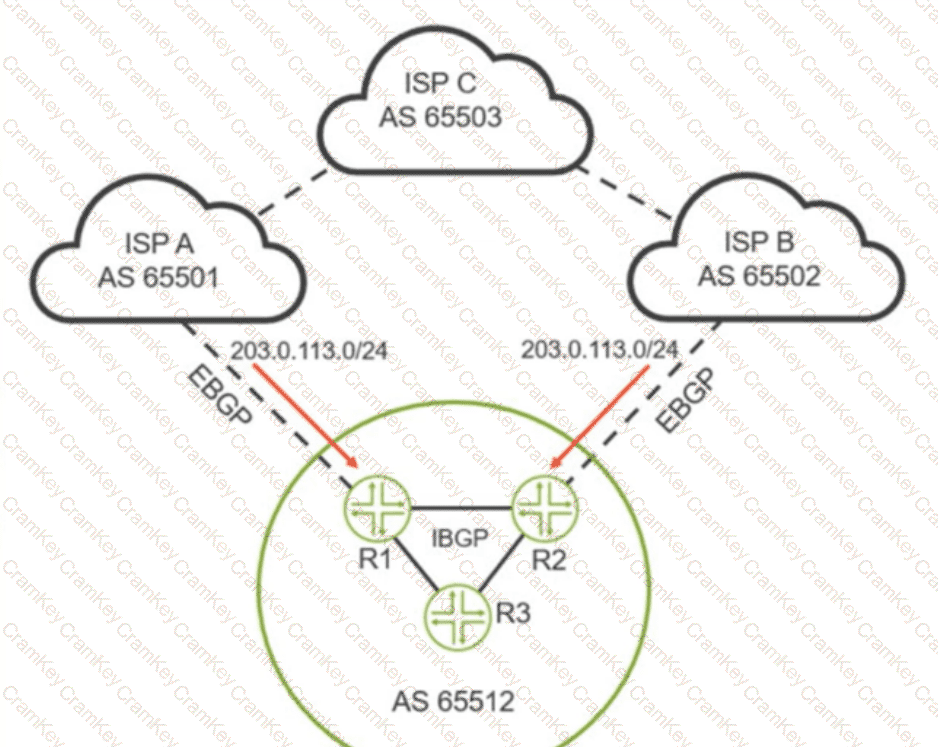

In Junos OS, particularly in BGP-based environments like EVPN-VXLAN or MPLS, the router often needs to perform a recursive lookup to resolve the BGP next-hop of a route.

Next-Hop Resolution (Option C): When an EVPN route (found in default-switch.evpn.0) is received, the protocol next-hop is typically the loopback IP of the remote VTEP. To actually forward traffic, the switch must know how to reach that loopback IP.

The inet.3 table is the default table in Junos used to store egress interface information for BGP next-hops.

While inet.0 handles standard unicast routing, inet.3 is specifically consulted for resolving the path toward BGP peers. In an EVPN context, this ensures that the VXLAN tunnel endpoint is reachable and properly resolved through the underlay.

Other Tables: * inet.2 (Option A) is used for Multicast RPF checks.

default-switch.evpn.0 (Option B) stores the EVPN routes themselves (MAC/IP), but it is the source of the lookup, not the table where the recursive resolution occurs.

vxlan.inet (Option D) is an internal table used to track active VXLAN tunnels but is not the primary table for recursive BGP next-hop validation.

Private VLANs (PVLANs) allow for granular port isolation within a single broadcast domain. When extending a PVLAN across multiple switches (S1 to S2), the secondary VLANs (Community or Isolated) must be preserved across the trunk links.

802.1Q Tagging (Option B): For traffic from a Community VLAN (RND) to reach members on a different switch, the Community VLAN must have its own 802.1Q VLAN tag (VLAN ID) associated with it. When a frame from a community port on S1 traverses the trunk to S2, it is tagged with this specific secondary VLAN ID. S2 receives the tagged frame, identifies it as belonging to the RND community, and forwards it to the appropriate community or promiscuous ports.

Why it fails without a tag: If the RND community is only defined locally on S1 without a global VLAN ID, the trunk port will not know how to distinguish that traffic from the Primary VLAN or other communities.

Incorrect Options: Option A is incorrect because the community VLAN must have a different tag than the parent (Primary) VLAN to maintain the internal PVLAN logic. Option C is incorrect because stripping tags would lead to the traffic being merged into the native VLAN or dropped. Option D is incorrect because RND is a community VLAN; changing it to an isolated VLAN would change its behavior (preventing communication between members of that same group).
