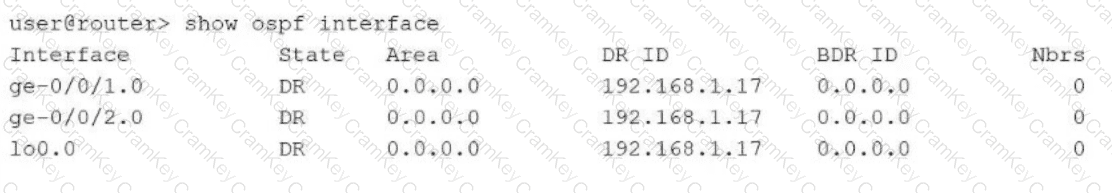

The show ospf interface output provides critical information about the local OSPF state.

Loopback Behavior (Option A): The output shows lo0.0 is in the DR (Designated Router) state with Nbrs 0. In Junos OS, OSPF adjacencies are not formed over loopback interfaces; they are treated as stub networks.

Neighbor State (Option D): Every interface listed (ge-0/0/1.0, ge-0/0/2.0, and lo0.0) shows Nbrs 0. This indicates that the router is not seeing any OSPF neighbors. Since the physical interfaces are in the DR state (meaning the router has elected itself as the DR because no other routers responded), it confirms the router is not receiving OSPF Hello messages from any potential neighbors on those segments.

Router ID: The DR ID 192.168.1.17 is the local router ' s own ID, not a neighbor it is trying to reach.

Junos OS uses specific routing tables for handling multicast traffic to ensure loop prevention through Reverse Path Forwarding (RPF) checks:

Multicast RPF (Option C): The inet.0 table is the default unicast routing table. In most standard multicast deployments, Protocol Independent Multicast (PIM) performs its RPF checks against this table to determine the upstream interface toward the multicast source.

Topology Differences (Option A): The inet.2 table is specifically designed for multicast RPF lookups when the multicast forwarding topology differs from the unicast forwarding topology. This is common in environments using Multiprotocol BGP (MBGP) where you might want multicast traffic to follow a different path than standard data traffic.

inet.1 Role (Option B): The inet.1 table is the multicast forwarding cache. It stores (S,G) and (*,G) entries for actual packet forwarding. Routing protocols like MBGP or IS-IS do not place routes directly into inet.1; instead, PIM uses information from inet.0 or inet.2 to populate inet.1.

IS-IS and OSPFv3 (Option D): These protocols place their IPv4/IPv6 unicast routes into inet.0 or inet6.0. They do not place routes into inet.2 " directly " unless specific RIB-group configurations or address families are enabled to share those routes for multicast RPF purposes.

Junos OS 24.4 handles multicast traffic using two distinct models based on whether the source is known in advance.

Knowledge and Sources (Option A): PIM-ASM (Any Source Multicast) is designed for " many-to-many " communication where receivers join a group ($*,G$) and rely on a Rendezvous Point (RP) to discover active sources. In contrast, PIM-SSM (Source-Specific Multicast) is for " one-to-many " scenarios where receivers must already know the exact source IP ($S,G$) before joining.

Protocol and RP Logic (Option D): PIM-SSM bypasses the RP entirely. It relies on IGMPv3 messages from the host, which explicitly include both the source address and the group address. This allows the last-hop router to build a Shortest Path Tree (SPT) directly toward the source immediately.

Register Process (Option B): While PIM-ASM does use registers, it is the First-Hop Router (Designated Router on the source segment) that sends the register to the RP, not the receiver ' s DR.

RP Role (Option C): This is exactly backwards; PIM-ASM requires an RP for source discovery, whereas PIM-SSM does not use one at all.
