In Junos OS routing policies, the order of evaluation and the impact of terminal actions are critical for predictable control.

Immediate Execution (Option D): When a route-filter contains an explicit action like accept or reject within its block, that action is considered terminal if a match is found.

Evaluation Flow: The policy engine processes terms and conditions from top to bottom. If a prefix matches a route-filter that has an embedded accept action, the policy executes that action immediately and stops further evaluation of that specific term. Consequently, any subsequent then clause in the same term is completely ignored.

Best Practice: To ensure a then clause (which might include modifications like changing a preference or community) is executed, the route-filter should be defined without an internal action, allowing the match to fall through to the term ' s common then statement.

In this scenario, the requirement is to authenticate devices based on their MAC addresses using a centralized database.

MAC RADIUS (Option A): This is the standard Juniper method for authenticating " headless " or non-802.1X capable devices based on their hardware (MAC) address. The switch acts as a proxy, sending the device ' s MAC address as the username and password to a centralized RADIUS server (the centralized database). If the MAC address is found in the server ' s database, the device is granted access to the network. This perfectly matches the user ' s requirement for MAC-based authentication and a centralized database.

Captive Portal (Option B): This is a web-based authentication method requiring user interaction (login via a browser), which is not based on MAC address identification for the initial authentication phase.

Supplicant Modes (Options C & D): These define how multiple devices are handled on an 802.1X-enabled port, but they are not authentication methods themselves; they rely on 802.1X (EAP-based) or MAC-RADIUS being already configured.

In an EVPN-VXLAN architecture, the network is divided into two distinct planes: the Underlay and the Overlay.

Underlay (IP Fabric): The underlay ' s only job is to provide IP reachability between the loopback addresses of all VTEPs (Virtual Tunnel Endpoints). This is typically achieved using OSPF, IS-IS, or EBGP.

Overlay (EVPN Control Plane): The overlay is responsible for carrying Layer 2 MAC and Layer 3 IP reachability information between switches. EVPN signaling is the standard mechanism for this task.

Protocol Choice (Option D): EVPN uses MP-BGP (Multiprotocol BGP) as its control plane protocol. On Juniper EX Series and QFX Series switches, the most scalable and recommended design for the overlay is EBGP (External BGP).

In a 3-stage or 5-stage Clos architecture, EBGP is used in the overlay to exchange EVPN routes (Route Types 1-5) between Leaf and Spine switches.

EBGP simplifies configuration by avoiding the need for Route Reflectors (required for IBGP) and provides better control over route propagation through BGP community and policy management.

Incorrect Options:

Options A and B refer to the underlay protocols. While they provide the path for the VXLAN tunnels, they do not handle the EVPN signaling itself.

Option C (MPLS) is a different transport technology. While EVPN can run over MPLS (EVPN-MPLS), campus designs on EX series devices specifically use VXLAN as the data plane, making EBGP the standard signaling protocol for the EVPN-VXLAN overlay.

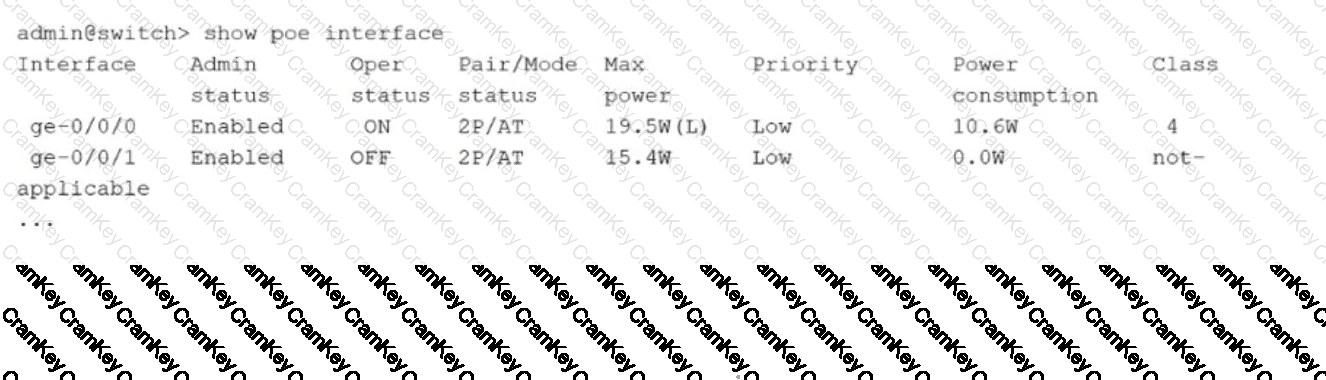

The exhibit shows the output of the show poe interface command on a Juniper switch.

VTEP Power Capabilities (Statement D): The exhibit shows the Pair/Mode as 2P/AT, which refers to the IEEE 802.3at (PoE+) standard. Under this standard, a switch can supply up to 30 W of power per port to attached devices (PDs). * Dynamic Learning (Statement C): Looking at the Max power column for port ge-0/0/0, it shows 19.5W(L). The (L) indicator signifies that the power has been dynamically learned (negotiated) via LLDP or hardware classification, rather than being statically configured by an administrator. Additionally, it has identified the device as Class 4, which is a standard dynamic classification for PoE+ devices.

Why others are incorrect: Statement A (60 W) refers to the 802.3bt (PoE++) standard, which is not indicated here. Statement B is incorrect because the " (L) " confirms the configuration is not static.
