Huawei Updated H13-511_V5.5 Exam Questions and Answers by avi

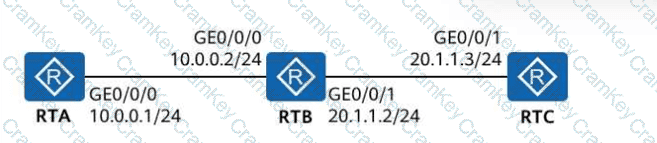

In the shown topology, RTA and RTB are directly connected on10.0.0.0/24(RTA: 10.0.0.1/24, RTB: 10.0.0.2/24). RTB and RTC are directly connected on20.1.1.0/24(RTB: 20.1.1.2/24, RTC: 20.1.1.3/24). In HCIA networking fundamentals, a router forwards packets based on its routing table, and thenext hop must be reachable on a directly connected network(or resolved via recursion), meaning it is typically theneighbor router interface on the local link.

A is false: For traffic fromRTA to RTC (20.1.1.3), RTA’s next hop should beRTB’s interface 10.0.0.2(its directly connected neighbor). The address20.1.1.2is not on RTA’s directly connected subnet, so it cannot be used as the immediate next hop in this basic routing scenario.

B is true: RTC must have a route back to10.0.0.0/24(for return traffic to RTA). Since RTC only knows its directly connected network20.1.1.0/24, a static/default route is required pointing to20.1.1.2.

C is true: RTB has two directly connected networks (10.0.0.0/24 and 20.1.1.0/24), so it can reach both RTA and RTC withno additional routes.

D is false: RTB does not need extra routing configuration for RTA↔RTC communication because both networks are alreadydirectly connectedon RTB.

When creating a Windows template in FusionAccess, the Template Tool must be mounted and installed inside the VM.

According to HCIA documentation:

The template tool installs necessary drivers, services, and agents required for desktop provisioning, management, and optimization.

Without mounting and installing the template tool, the VM cannot be converted into a usable desktop template.

Other operations such as configuration and conversion are subsequent steps, but mounting the template tool is mandatory.

Therefore, the correct answer is A.

In AD,OUsanduser groupsare both used for organizing and managing resources, but they differ in function.

Ais true. Both OUs and user groups areAD objects.

Bis true. An OU can contain multiple types of AD objects, includingusers, computers, printers, and shared resources.

Cis false.Group policies cannot be directly applied to user groups; they are applied to domains, sites, or OUs.

Dis false. A user group can containusers, computers, and even other groups, not only user accounts.

Thus, the correct answers areA and B.

FusionAccess OA security architecture adoptszone-based isolation(red, yellow, green zones).

Each zone islogically and physically isolated

Each zone has itsown FusionAccess system

Data is not allowed to flow freely between zones

OptionBis false because it incorrectly states that data can be transmitted between zones. The other statements correctly reflect FusionAccess OA security and integration characteristics.
