According to the Huawei HCIA-Cloud Computing documentation, specifically within the "Planning and Deployment of FusionAccess" module, the network architecture of a cloud data center is divided into distinct planes to ensure security, isolation, and efficient management. In a FusionAccess deployment, infrastructure virtual machines (VMs)—which include critical components such as the ITA (IT Adapter), HDC (Huawei Desktop Controller), WI (Web Interface), and the GaussDB database—are considered the "management brain" of the desktop cloud solution.

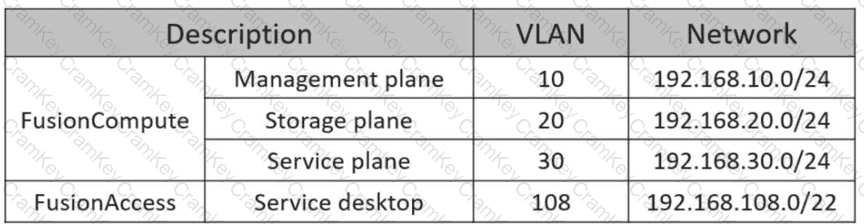

TheManagement planeis specifically designed to facilitate communication between management systems and all nodes within the cloud environment. In the provided scenario, the network segment192.168.10.0/24(VLAN 10) is designated as the FusionCompute Management plane. Huawei's official best practices dictate that Linux infrastructure VMs must be deployed on this plane to allow them to communicate directly with theVirtual Resource Management (VRM)node and theComputing Node Agent (CNA)hosts. This placement ensures that management traffic for desktop provisioning and resource orchestration remains isolated from general user traffic and heavy storage data flows.

In contrast, theService plane(192.168.30.0/24) is intended for the traffic of standard user applications, while theService desktopsegment (192.168.108.0/22) is reserved for the end-user virtual desktops themselves. Placing infrastructure VMs on theStorage plane(192.168.20.0/24) would be technically incorrect, as it is strictly dedicated to disk I/O and would not provide the necessary logical path to the management portal. Therefore, selecting network segment B ensures that infrastructure components are securely positioned to manage the desktop lifecycle while maintaining high availability and administrative accessibility.

As defined in the "Network Technology Basics" module of the HCIA-Cloud Computing training, a router is a Layer 3 (Network Layer) device responsible for interconnecting different network segments and selecting the optimal path for data packets. To perform this function, the router maintains and manages a Routing Table. This table is the "map" of the network that the router uses to make forwarding decisions. Every entry in the routing table typically includes several key parameters: the destination network address, the subnet mask, the protocol (how the route was learned, such as Static, OSPF, or BGP), the preference value, the cost (metric), and the next-hop address or outbound interface.

When a router receives an IP packet, it examines the destination IP address and performs a lookup in its routing table to find the most specific match (longest match rule). If a matching entry is found, the router encapsulates the packet into a new frame and sends it toward the next hop. If no match is found and no default route exists, the packet is discarded. This process is fundamental to the operation of a Cloud Data Center where multiple Virtual Private Clouds (VPCs) and subnets must communicate through virtual or physical routers.

While a switch manages a MAC address table to forward frames at Layer 2, and a host manages an ARP table to map IP addresses to MAC addresses, only the routing table provides the cross-network path intelligence required for routing. In Huawei’s virtualization solutions, virtual routers within the software-defined networking (SDN) layer use these same logic principles to ensure that traffic between virtual machines in different subnets is directed efficiently to the correct destination. Proper management of the routing table is therefore the cornerstone of network reachability in cloud environments.

====================

According to the HCIA–Cloud Computing virtualization domain,KVM (Kernel-based Virtual Machine)andXenare both examples ofhardware-assisted virtualizationtechnologies.

Hardware-assisted virtualization relies on CPU extensions such asIntel VT-xandAMD-Vto improve virtualization performance and isolation. Both KVM and Xen leverage these CPU features.

KVMis implemented as akernel modulewithin the Linux operating system. Once loaded, the Linux kernel itself becomes a hypervisor, managing CPU and memory virtualization with hardware support.

Xenalso relies on hardware virtualization features and interacts closely with the operating system kernel, especially in full virtualization and hardware-assisted modes.

Because the statement correctly describes both thevirtualization typeand theimplementation approach, it aligns with HCIA documentation and isTRUE.
