According to the FortiOS 7.6 Administrator Guide and the specific behavior of the SD-WAN GUI, here is the technical breakdown:

SD-WAN Zone Hierarchy and UI Elements: In the FortiGate GUI, SD-WAN zones that contain member interfaces are displayed with a plus (+) icon next to the checkbox. This icon allows administrators to expand the zone and view the specific physical or logical interfaces assigned to it.

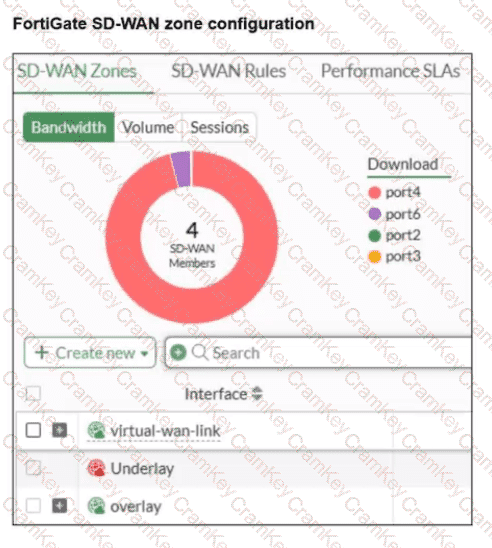

Analysis of the " Underlay " Zone: In the provided exhibit, the virtual-wan-link and overlay zones both feature the plus (+) expansion icon, indicating they have active members. The Underlay zone, however, lacks this icon and displays a red status icon. This is the visual indicator in FortiOS that the zone is currently empty and contains no member interfaces.

Mandatory Zone Membership: In FortiOS 7.x, every SD-WAN member interface must be assigned to a zone. It is not possible for an interface to be an " SD-WAN member " (as shown in the legend with port2 and port3) without being assigned to a zone. Since port2 and port3 are listed in the legend, they are indeed assigned to one of the other expanded zones (likely virtual-wan-link or overlay), making Option D incorrect.

Default Zone Behavior: While FortiOS 7.6 often creates default zones like virtual-wan-link, underlay, and overlay during certain configuration wizards or by default in newer versions, they are distinct entities. There is no single " default " zone that acts as a global catch-all in the way Option C suggests.

Immutability of System Zones: While certain system-defined zones have restrictions, the primary focus of this specific exhibit is the current membership state, which clearly shows the Underlay zone is empty.

Based on the exhibit and FortiOS 7.6 Active Authentication (captive portal) behavior, the most likely reason the user is not presented with a login prompt is that DNS is missing from the firewall policy.

What the exhibit shows

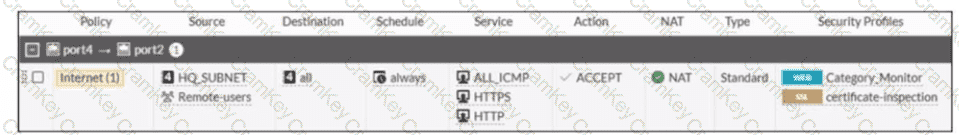

The firewall policy configured for active authentication includes:

Source: HQ_SUBNET and Remote-users

Destination: all

Services:

HTTP

HTTPS

ALL_ICMP

Security Profiles: Web filter and SSL inspection enabled

Authentication: Active (user group referenced)

DNS is not included as a service in the policy.

Why DNS is required for active authentication

In FortiOS 7.6, active authentication (captive portal) works as follows:

The user attempts to access a website using a URL (for example, www.example.com).

The client must first perform a DNS lookup to resolve the domain name.

FortiGate intercepts the initial HTTP/HTTPS request and redirects the user to the authentication portal.

If DNS traffic is blocked or not allowed:

The hostname cannot be resolved.

The HTTP/HTTPS request never properly occurs.

FortiGate has nothing to intercept, so the login prompt is never triggered.

This is explicitly documented in the FortiOS 7.6 Authentication and Captive Portal requirements, which state that DNS must be permitted for captive portal–based authentication to function correctly.

Why the other options are incorrect

A. No matching user account exists for this user

Incorrect.

If the user account did not exist, the login page would still appear, but authentication would fail after credentials are entered.

B. The Remote-users group must be set up correctly in the FSSO configuration

Incorrect.

This policy is using active authentication, not FSSO.

FSSO configuration is irrelevant for active authentication login prompts.

C. The Remote-users group is not added to the Destination

Incorrect.

User groups are applied in the Source field for authentication-based policies.

Destination does not accept user groups.

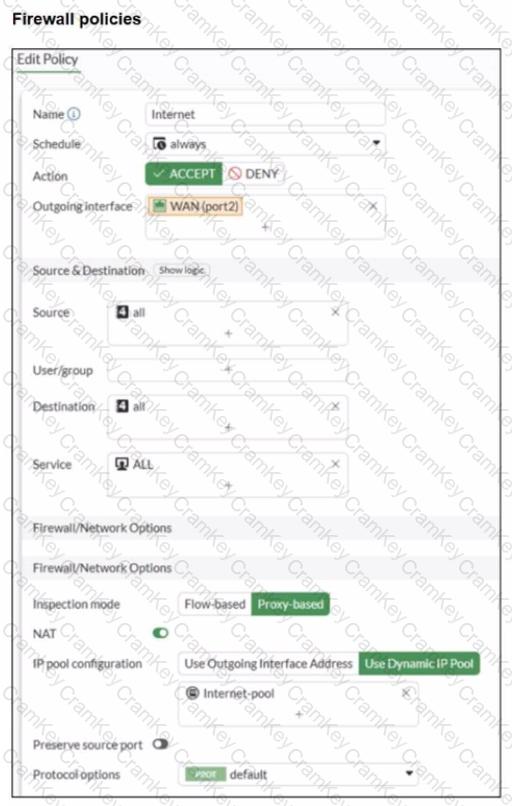

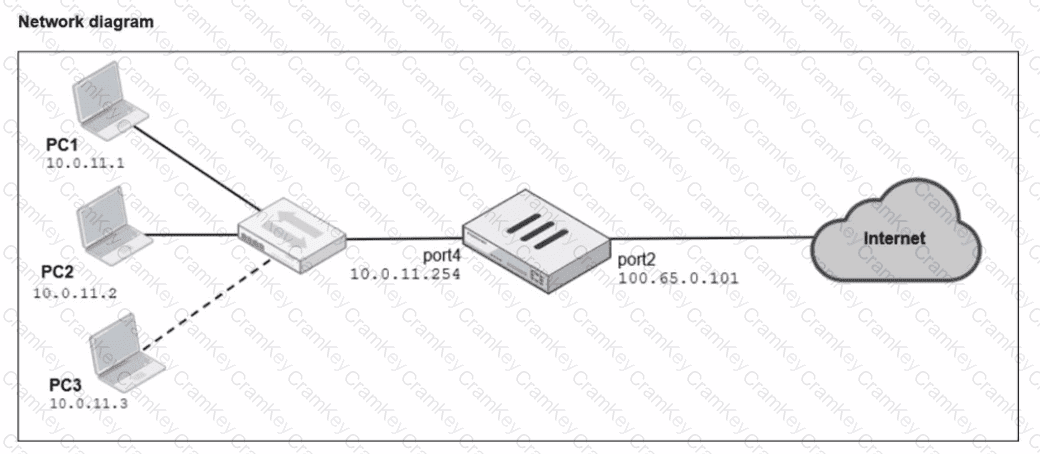

From the exhibits:

The firewall policy has NAT enabled and is configured to Use Dynamic IP Pool.

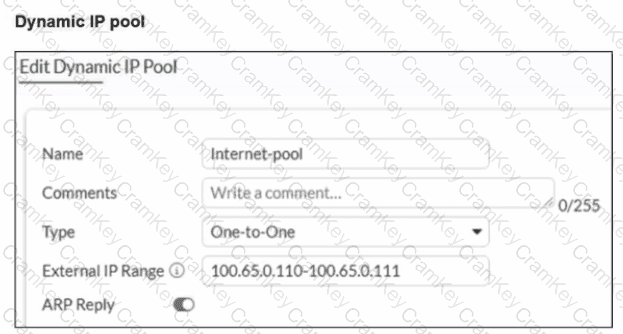

The selected IP pool (Internet-pool) is configured as:

Type: One-to-One

External IP Range: 100.65.0.110–100.65.0.111 (only two public IPs)

PC1 and PC2 can access the internet because each one-to-one NAT mapping consumes one public IP from the pool. When PC3 is added, there is no third public IP available in the pool, so FortiGate cannot allocate a one-to-one mapping for PC3 and the session fails.

FortiOS behavior here is standard: with one-to-one IP pools, the available pool size limits how many distinct internal sources can be translated concurrently (depending on allocation and sessions), and a pool with only two IPs will not reliably support three separate hosts needing translations.

Therefore, the administrator can fix this in two valid ways:

B. In the IP pool configuration, set end ip to 100.65.0.112.

This expands the pool by adding an additional public IP address, making three public IPs available (.110, .111, .112), so PC3 can be assigned an address for one-to-one NAT.

D. In the IP pool configuration, set type to overload.

Changing the pool type to overload enables PAT (many-to-one), allowing multiple internal hosts (PC1, PC2, PC3) to share the pool address(es) using different source ports. This removes the “one public IP per internal host” limitation inherent to one-to-one pools.

Why the other options are not correct:

A. Multiple Interface Policies is unrelated to IP pool exhaustion and does not solve NAT allocation limits.

C. match-vip affects VIP matching behavior for destination NAT/virtual IP usage and does not address the source NAT pool shortage causing PC3 to fail.

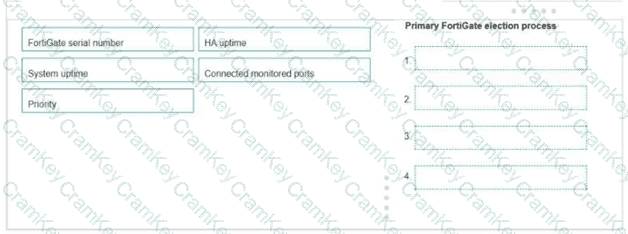

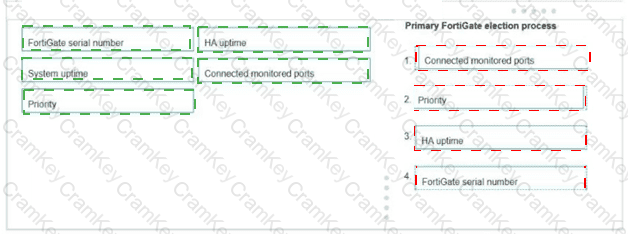

“This slide shows the different criteria that a cluster considers during the primary FortiGate election process. The criteria order evaluation depends on the HA override setting.”

For the default case shown in the guide:

“1. The cluster compares the number of monitored interfaces that have a status of up. The member with the most available monitored interfaces becomes the primary.

2. The cluster compares the HA uptime of each member...

3. The member with the highest priority becomes the primary.

4. The member with the highest serial number becomes the primary.”

For this question’s case:

“If the HA override setting is enabled, the priority is considered before the HA uptime .”

Technical Deep Dive:

Because override is enabled , the election order changes from the default sequence. The first criterion is still Connected monitored ports , because interface health is evaluated first. After that, Priority moves ahead of HA uptime . If those still do not decide the winner, FortiGate uses the serial number as the final tie-breaker. Therefore the correct order is:

1. Connected monitored ports

2. Priority

3. HA uptime

4. FortiGate serial number

This distinction matters in production. With set override enable, you are effectively making HA priority authoritative over uptime, so the preferred unit will reclaim the primary role when it comes back online. That is useful for deterministic primary selection, but it can also cause an additional failover event when the preferred chassis returns to service. The guide explicitly notes this tradeoff.

In practice, the relevant HA checks and verification commands are:

show system ha

get system ha status

diagnose sys ha status

These let you confirm override status, device priority, monitored interfaces, and recent election results. From a control-plane perspective, FGCP election logic is handled by FortiOS over heartbeat links, while data-plane forwarding after election continues using the cluster’s virtual MAC behavior and synchronized HA state.
