“In this use case, FortiSASE acts as an SWG and distributes a proxy auto-configuration (PAC) file to end users, enabling the FortiSASE SWG service as an explicit web proxy. SWG deployment secures only web traffic protocols, such as HTTP and HTTPS.”

“All other nonweb traffic bypasses FortiSASE and is forwarded directly to the internet.”

Technical Deep Dive:

The correct answer is A .

In agentless SWG-based SIA , FortiSASE is operating as an explicit web proxy using a PAC file . That model captures only web protocols , specifically HTTP and HTTPS . It does not create a full tunnel for the endpoint like agent-based FortiClient deployment does.

So the design implication is simple: nonweb traffic does not traverse FortiSASE in this onboarding model. It goes directly to the internet from the endpoint.

Why the other options are wrong:

B is wrong because this is not split-tunnel VPN behavior.

C is wrong because FWaaS does not automatically capture nonweb traffic in the agentless SWG model.

D is wrong because SWG does not redirect nonweb traffic to FortiExtender.

This is an important deployment distinction:

Agent-based SIA can steer broader endpoint traffic through FortiSASE.

Agentless SWG SIA secures only browser-based web traffic.

In FortiOS 7.6, HA cluster heartbeat IP addresses are automatically managed by FortiGate and play a critical role in cluster communication and synchronization.

Correct statements

A. Heartbeat IP addresses are used to distinguish between cluster members.

Correct

FortiGate assigns unique heartbeat IP addresses (link-local addresses in the 169.254.0.0/16 range) to each HA member.

These addresses are used for:

Cluster member identification

Health checks

Synchronization traffic

This allows FortiGate units to uniquely identify and communicate with each other inside the HA cluster.

C. A change in the heartbeat IP address happens when a FortiGate device joins or leaves the cluster.

Correct

Heartbeat IPs are dynamically assigned.

When:

A new FortiGate joins the cluster, or

A member leaves or fails,

FortiGate may reassign heartbeat IP addresses to maintain unique identification among members.

This behavior is documented in the FortiOS HA operation and troubleshooting guides.

Why the other options are incorrect

B. The heartbeat interface of the primary device is always assigned IP address 169.254.0.1.

Incorrect

There is no fixed or guaranteed heartbeat IP (such as 169.254.0.1) for the primary unit.

Heartbeat IP assignment is dynamic, not role-based.

D. Heartbeat interfaces have virtual IP addresses that are manually assigned.

Incorrect

Heartbeat IP addresses are:

Automatically assigned

Link-local

Administrators do not manually configure heartbeat IP addresses.

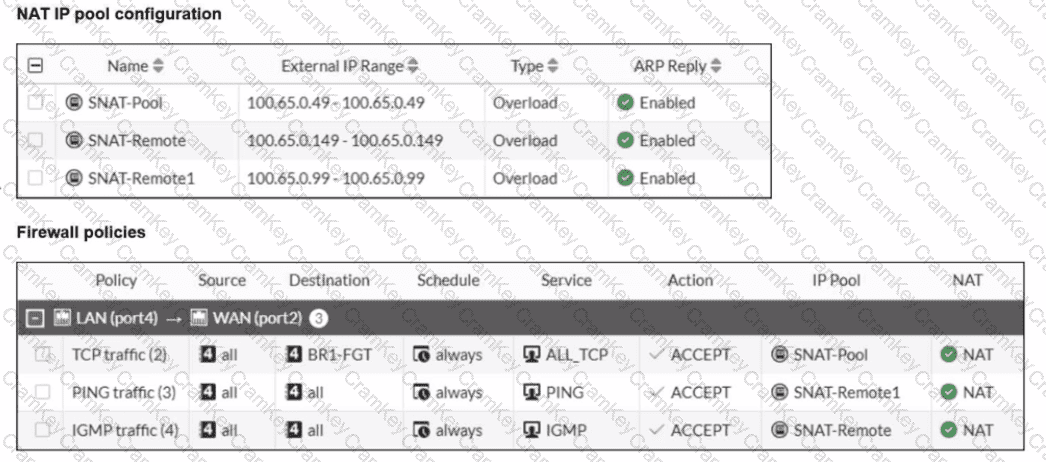

From the exhibits, there are three relevant firewall policies from LAN (port4) to WAN (port2), each using a different IP pool for source NAT:

TCP traffic

Service: ALL_TCP

Destination: BR1-FGT

IP Pool: SNAT-Pool → 100.65.0.49

PING traffic

Service: PING

Destination: all

IP Pool: SNAT-Remote1 → 100.65.0.99

IGMP traffic

Service: IGMP

Destination: all

IP Pool: SNAT-Remote → 100.65.0.149

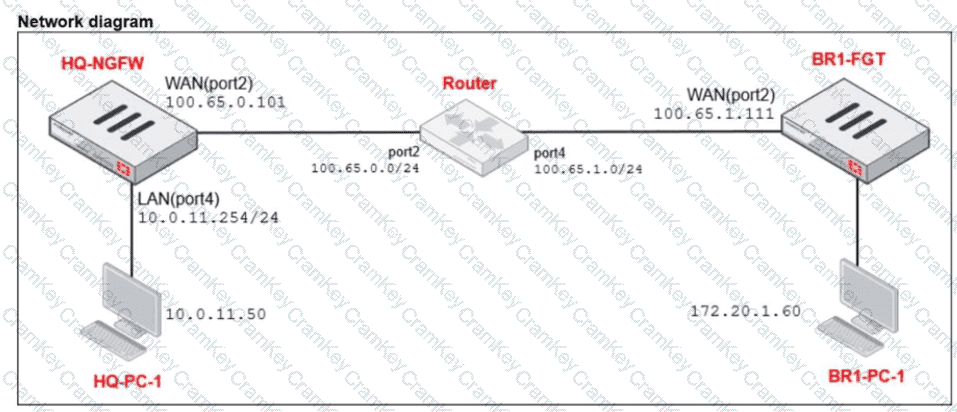

The user on HQ-PC-1 (10.0.11.50) is pinging BR1-FGT (100.65.1.111). In FortiOS, policy matching is based on (among other fields) source, destination, and service, and the first matching policy in top-down order is applied.

Because the traffic is ICMP echo (ping), it matches the policy named PING traffic (service PING, destination all). That policy explicitly uses Use Dynamic IP Pool with SNAT-Remote1, which is configured with external IP 100.65.0.99.

Therefore, the source NAT IP used for this ping is 100.65.0.99.

With a dialup IPsec VPN on FortiGate, when add-route is enabled, FortiGate will only install the corresponding route when it has enough negotiated information from the tunnel. In FortiOS 7.6, that means the route is tied to the Phase 2 (Quick Mode) selectors and is created dynamically when the IPsec SA is actually up.

B. The administrator must ensure phase 2 is successfully established

This is required. FortiGate does not install the add-route route just because Phase 1 exists or because the configuration is present. The route is added when the tunnel is effectively usable, which requires Phase 2 (IPsec SA) to be up. If Phase 2 is not established, there is no active SA and FortiGate will not inject the related route into the routing table.

So, if the static route is not showing, one correct explanation is that Phase 2 is not up.

C. The administrator must define the remote network correctly in the phase 2 selectors

This is also required. For dialup tunnels, FortiGate derives what route to add from the remote subnet(s) defined in the Phase 2 selector (proxy ID). If the remote network in Phase 2 is missing, incorrect, or too broad/too narrow in a way that prevents negotiation, the tunnel either won’t come up (so no route), or the route that would be installed won’t match what the administrator expects.

So, another correct explanation is that the Phase 2 remote network is not correctly defined, preventing the correct route from being created.

Why the other options are incorrect

A. Policy route instead of a static route

Add-route does not require policy routes. It is specifically a feature that injects a route (route-table entry) associated with the IPsec tunnel/SA and the Phase 2 selector networks.

D. Enable a dynamic routing protocol

Dynamic routing protocols (OSPF/BGP/RIP) are not required for add-route. Add-route is independent of dynamic routing and works by installing routes locally based on the negotiated selectors.
