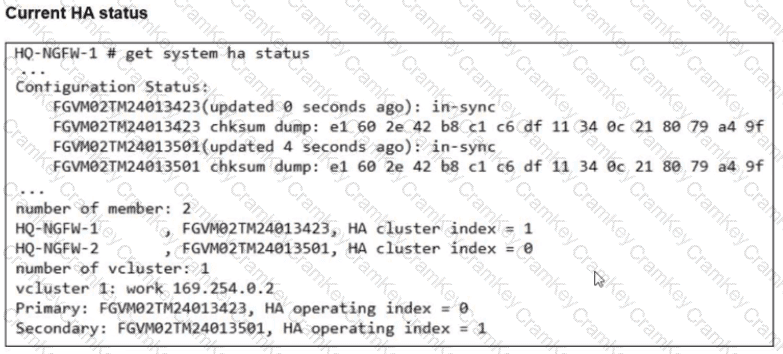

From the current HA status, HQ-NGFW-1 is the primary and HQ-NGFW-2 is the secondary.

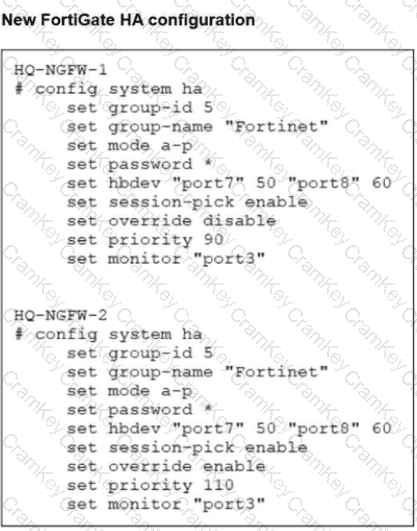

The administrator then changes these HA parameters:

HQ-NGFW-1: set override disable, set priority 90

HQ-NGFW-2: set override enable, set priority 110

In FGCP (A-P mode), the override (preemption) feature controls whether a higher-priority unit is allowed to take over the primary role.

When override is enabled, the cluster will prefer (and can re-elect) the unit with the highest device priority to become primary (preempting a lower-priority primary when conditions trigger re-election behavior as defined by FGCP).

Here, HQ-NGFW-2 has:

override enabled

higher priority (110) than HQ-NGFW-1 (90)

Therefore, the expected result is that HQ-NGFW-2 becomes the primary.

Why the other options are incorrect:

B is incorrect because it claims HQ-NGFW-2 has lower priority (it is higher: 110 > 90).

C is incorrect because a mismatch in the override setting is not what causes the “configuration out of sync” condition shown in get system ha status (that is about synchronized configuration databases, not a requirement that override values must match to remain in-sync).

D is incorrect because HA settings like override/priority are not synchronized in the way regular configuration objects are; they are device-level HA parameters.

In FortiOS 7.6, when multiple dialup IPsec VPNs are configured on the same FortiGate—especially in Aggressive Mode—FortiGate must identify which Phase 1 configuration a connecting client should match.

How FortiGate selects a dialup IPsec tunnel

For dialup VPNs:

The remote peer (user or device) does not have a fixed IP address

Multiple Phase 1 interfaces may exist on the HQ FortiGate

FortiGate uses identifying information sent during IKE Phase 1 to select the correct tunnel

Aggressive Mode behavior

Aggressive mode sends ID information in clear text during Phase 1

This allows FortiGate to match incoming peers to the correct Phase 1 configuration

Why Peer ID is the correct answer

C. Peer ID

Peer ID (also called IKE ID) is used to:

Identify the remote peer

Differentiate between multiple dialup tunnels

Common Peer ID formats:

FQDN

User FQDN

Key ID

FortiGate matches the received Peer ID against the Phase 1 configuration to select the correct tunnel

This is the documented and recommended method for:

Mapping users to different department tunnels

Supporting multiple dialup IPsec VPNs in aggressive mode

Why the other options are incorrect

A. Local GatewayIdentifies the local FortiGate interface/IP, not the remote user.

B. Dead Peer DetectionUsed only for tunnel health monitoring, not tunnel selection.

D. IKE Mode ConfigUsed for assigning IP addresses and pushing settings, not for selecting the Phase 1 tunnel.

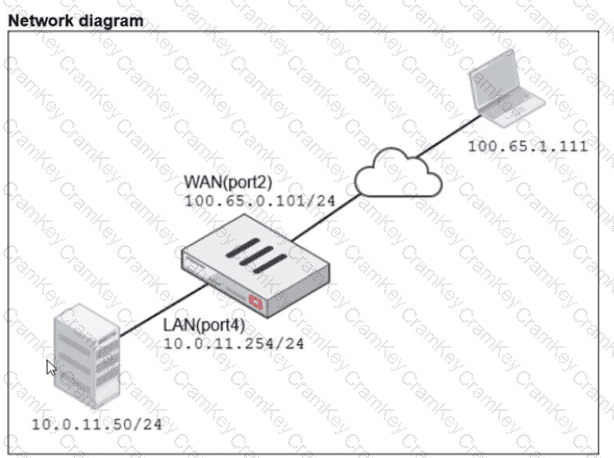

From the exhibits:

A VIP named VIP-WEB-SERVER is configured on WAN (port2) with:

External IP: 100.65.0.200

Mapped (internal) IP: 10.0.11.50

Port forwarding enabled (TCP)

External service port: 443

Map to IPv4 port: 4443

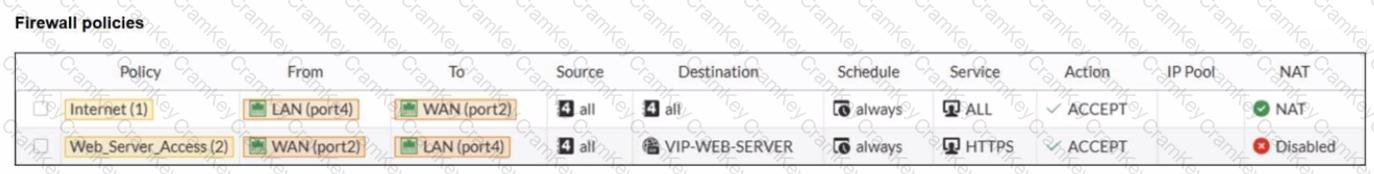

The inbound firewall policy Web_Server_Access is:

From WAN (port2) to LAN (port4)

Destination: VIP-WEB-SERVER

Service: HTTPS

NAT: Disabled (meaning no source NAT is applied)

What happens to the packet

A host 100.65.1.111 sends TCP SYN dst-port 443 to 100.65.0.200.

When FortiGate matches the VIP and forwards traffic to the internal server, FortiGate performs destination NAT (DNAT) based on the VIP:

Source IP is unchanged because policy NAT is disabled:

Source remains 100.65.1.111

Destination IP is translated by the VIP:

Destination becomes 10.0.11.50

Destination port is translated by the VIP port-forward:

Destination port becomes 4443

Therefore, at the time FortiGate forwards the packet to the destination (internal server), it will be:

Source address: 100.65.1.111

Destination address: 10.0.11.50

Destination port: 4443
