Fortinet Updated FCSS_EFW_AD-7.6 Exam Questions and Answers by iosif

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

When a FortiGate is reaching resource limits, especially when processing resource-intensive UTM profiles, you must implement a solution that scales the total processing capacity.

FGCP Active-Active (B): This mode distributes network traffic among all members of the cluster. Crucially, it allows the cluster to share the UTM/IPS inspection load across multiple units, effectively increasing the available resources to handle higher traffic volumes.

FGSP (A): The FortiGate Session Life Support Protocol is designed to synchronize session information between peers. When used with external load balancers , FGSP allows multiple FortiGate units to operate in parallel to scale throughput significantly. This architecture is often used in large enterprise and data center environments to provide both scalability and high availability for asymmetric traffic patterns.

Note: Options C (VRRP) and D (Active-Passive) provide redundancy for failover but do not increase the processing capacity of the network, as only one unit is actively processing traffic at any given time.

==============

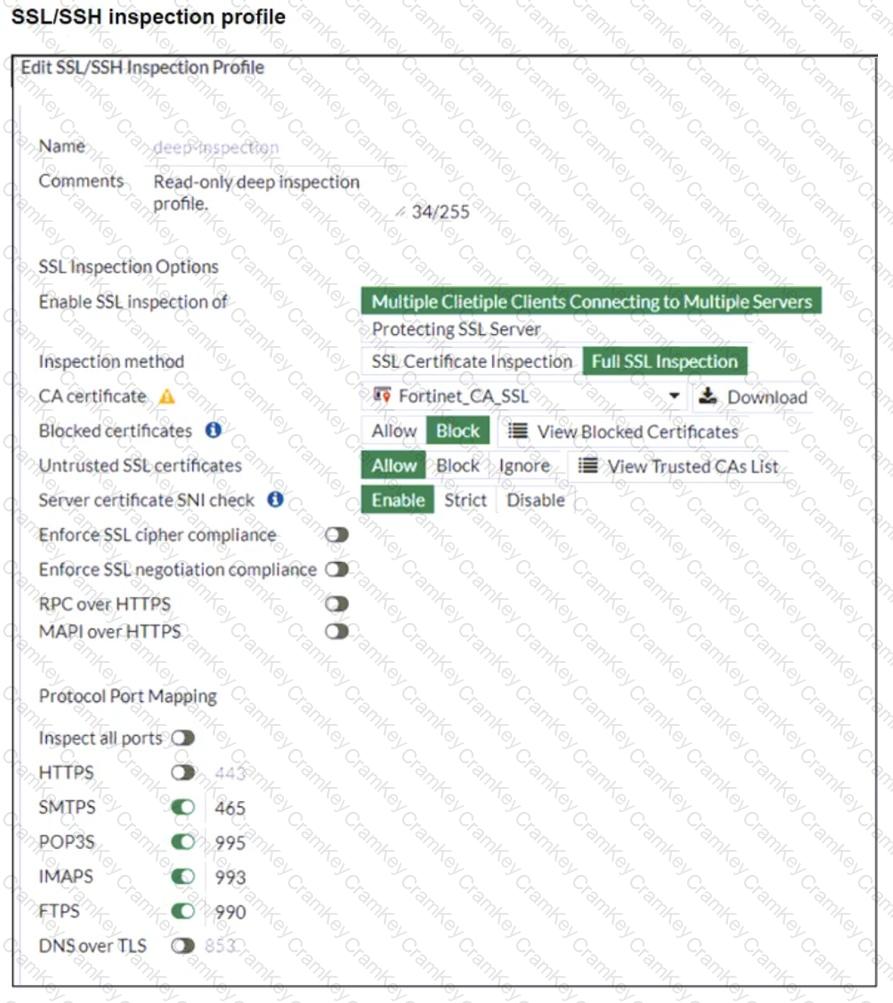

The FortiGate SSL/SSH inspection profile is configured for Full SSL Inspection, which is necessary to analyze encrypted HTTPS traffic. However, the firewall policy is protecting an SSL server (the Linux server hosting the website), and currently, the SSL/SSH profile only applies to client-side SSL inspection.

To detect HTTPS-based attacks targeting the Linux server:

● FortiGate must act as an SSL intermediary to inspect encrypted traffic destined for the web server.

● The administrator must upload the SSL certificate of the Linux web server to FortiGate so that the server-side SSL inspection can decrypt incoming HTTPS traffic before analyzing it.

The diagram shows a FortiGate connected to two FortiSwitches, which suggests the use of FortiLink, Fortinet ' s protocol for managing switches directly from a FortiGate. Since multiple connections are being used, the LAN interface must be set to 802.3ad (LAG) mode to aggregate the links for redundancy and load balancing.

This setup allows FortiGate to handle VLAN assignments dynamically, as seen with VLAN 10 (192.168.15.1/24). FortiLink ensures seamless integration between FortiGate and FortiSwitches, making STP unnecessary because Fortinet ' s MCLAG prevents loops at Layer 2. SD-WAN, on the other hand, is used for WAN interfaces and does not apply to switch connectivity in this scenario.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

To scale performance beyond a single unit, Fortinet provides two primary clustering and synchronization methods:

FGCP Active-Active: This mode distributes network traffic among all members of the cluster, allowing the combined processing power of multiple units to handle higher throughput and security inspection loads.

FGSP (FortiGate Session Life Support Protocol): This protocol is used to synchronize session information between independent FortiGate units or clusters. It is commonly used in large-scale environments where external load balancers distribute traffic across multiple FortiGates, ensuring that if traffic for a session is asymmetric (sent to one unit but returned to another), the return unit has the necessary session state to allow the traffic. In contrast, FGCP Active-Passive provides redundancy but does not scale performance as the secondary unit remains idle.

==============
