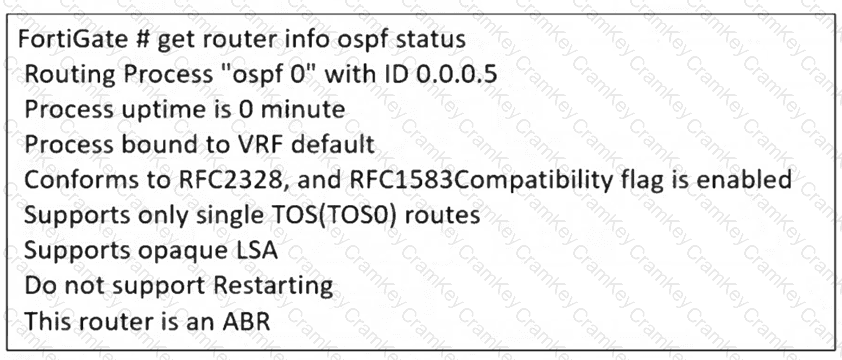

The output of the get router info ospf status command provides key information about the OSPF (Open Shortest Path First) configuration on the FortiGate device.

The FortiGate device is connected to multiple areas

● The output states: "This router is an ABR"

● ABR (Area Border Router) means the device is connected to multiple OSPF areas and maintains routing information between them.

● This confirms that the FortiGate is not just in one area, but at least one backbone area (Area 0) and another OSPF area.

The FortiGate device injects external routing information

● The output states: "Supports opaque LSA"

● Opaque LSAs (Type 9, 10, and 11) are used in OSPF extensions, including those that support external route injection.

● Typically, ABRs or ASBRs (Autonomous System Boundary Routers) inject external routes, allowing routes from other routing protocols (such as BGP or static routes) to be advertised into OSPF.

When designing an ADVPN (Auto-Discovery VPN) network for a large enterprise with spokes that have varying numbers of internet links, the main challenge is to minimize the number of peer connections and routes at the hub while maintaining scalability and efficiency.

Using a dynamic routing protocol (such as BGP or OSPF) with loopback interfaces helps in several ways:

● Reduces the number of peer connections at the hub by using a single loopback address per spoke instead of individual physical interfaces.

● Enables simplified route advertisement by dynamically learning and propagating routes instead of manually configuring static routes.

● Supports multiple internet links per spoke efficiently, as dynamic routing can automatically adjust to the best available path.

● Allows seamless failover if a spoke’s internet link fails, ensuring continuous connectivity.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Infrastructure study guide and official documentation regarding OSPF monitoring, the command output get router info ospf status provides critical details about the OSPF process.

Multiple Areas (Option D): The last line of the exhibit explicitly states, "This router is an ABR" (Area Border Router). By definition in the OSPF protocol, an ABR is a router that is connected to multiple OSPF areas, typically Area 0 (the backbone) and at least one other non-backbone area.

OSPF ECMP (Option A): The output indicates that the OSPF process "Conforms to RFC2328". RFC 2328 is the standard for OSPFv2, which includes the capability for Equal-Cost Multi-Path (ECMP). In FortiOS, when OSPF is enabled and multiple routes to the same destination have the same cost, ECMP is supported by default unless specifically limited by the maximum-paths configuration. The mention of this RFC compliance in the status output confirms the engine's capability and support for multi-path routing.

Option C is incorrect because the output does not label the device as an ASBR (Autonomous System Boundary Router), which would be required to inject external routing information. Option B is incorrect because "ABR" refers to area hierarchy, not the election status (DR/BDR) on a specific network segment.

VXLAN (Virtual Extensible LAN) is an overlay network technology that extends Layer 2 networks over Layer 3 infrastructure. When VXLAN is used extensively on FortiGate, hardware acceleration is crucial for maintaining performance.

● NP7 (Network Processor 7) is Fortinet’s latest network processor designed to accelerate high-performance networking features, including:

● VXLAN encapsulation/decapsulation

● IPsec VPN offloading

● Firewall policy enforcement

● Advanced threat protection at wire speed

NP7 significantly reduces latency and improves throughput when handling VXLAN traffic, making it the best choice for large-scale VXLAN deployments.
